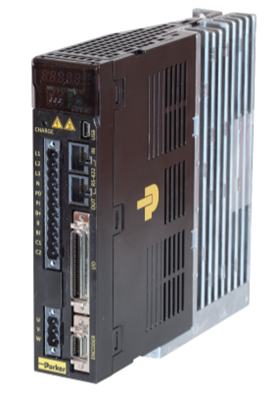

Parker Servo Systems P Series (PD-04C)

Compact Servo Drive - P Series

The P-Series drives operate with a variety of machine control architectures and offer sophisticated servo functionality. The best matches are the P-Series motors, which includes absolute encoders and populate motor nameplate data back to the drives for simplified commissioning.

· EtherCAT for high-speed motion bus

· Step/Direction and �10V velocity/torque (2 inputs)

· Indexer mode for pres-set positioning

· USB communications for convenient set-up

· Rotary or linear servo motor control

· 400 to 3.5kW power output

· BiSS-C and Endat2.2 absolute feedback

· Quadrature encoder and Analog sin/cos

· 120/240VAC single and three-phase power input

· Configurable Dynamic Braking response

· 16 digital inputs/ 8 outputs, 2analong in/out with pulse/indexer models

· 8 inputs/ 4 outputs with EtherCAT models

· Safe Torque Off (EtherCAT models)

· CE (EMC & LVD), UL recognized

The new Parker P Series servo system combines compact, flexible, advanced functionality drives with high performance motors for a superior servo system, providing unique value to machine builders.

The P-Series drives operate with a variety of machine control architectures and offer sophisticated servo capability. A number of different feedback types are supported to drive a wide range of linear and rotary servo motors. The best matches are the P-Series motors, which include absolute encoders and populate motor nameplate data back to the drives for simplified commissioning.

Accurate and easy to use inertia detection leads to fast set-up of tuning parameters and minimal settling time. Advanced filtering and vibration suppression features can be used to increase throughput and improve positioning performance.

The Pulse version of the drive can be configured for step and direction control input and includes analog inputs for torque or velocity control. Select Indexer mode to create up to 64 position table entries triggered via inputs or over a RS422 interface

For high speed, real-time network applications, the P-Series is available with EtherCAT, the fastest growing, most flexible industrial Ethernet protocol. Ideal for use with the Parker Automation Controller, the P-Series also follows the open standards for EtherCAT
