OEM750X -- Fully Integrated Controller and Microstepping Drive for High-Volume Applications

Compumotor’s OEM750X microstepping drive/controller combines the power, performance, packaging, and reliability of the OEM750 with the simple programmability of a built-in, RS-232C based controller. The "X" version is a cost-effective, single-axis control system to meet your high-volume application needs.

Performance:

All of the high performance found in the OEM750 plus:

• Built-in stand-alone controller

I/O:

• Standard RS-232C serial communications interface

• Incremental encoder support for position tracking, stall detection, and position maintenance.

• Three sequence select inputs for program initiation by an external device

• End of Travel and Home inputs

Language:

• Simple Compumotor X Language

• Optional 2K bytes of battery-backed RAM to store up to 7 command sequences (-M2 option).

• Address selectable for daisy chaining up to 8 units

Protection:

• Short circuit protected—phase-to-phase, and phase-to-ground

• Status/fault LED indicators to confirm proper operation

• Power dump circuitry to protect drive from regeneration caused by large inertial loads.

• Self-test feature to verify proper system operation

• Over temperature circuitry protects the drive from thermal damage

• Certified as UL-recognized component

• CE marked with LVD compliance

Physical:

• Application-specific integrated circuit (ASIC) and surface mount technology minimize product footprint, overall package size, and increase product reliability.

• Removable snap-on molded cover for convenient configuration and protection against contaminants.

• Optically isolated fault output for embedded applications

• Heat plate design allows thermal dissipation through a suitable heat dissipating mounting surface.

• Simplified, two-screw mounting

• Right-angle screw terminal allows side-to-side mounting, or Eurorack compatibility

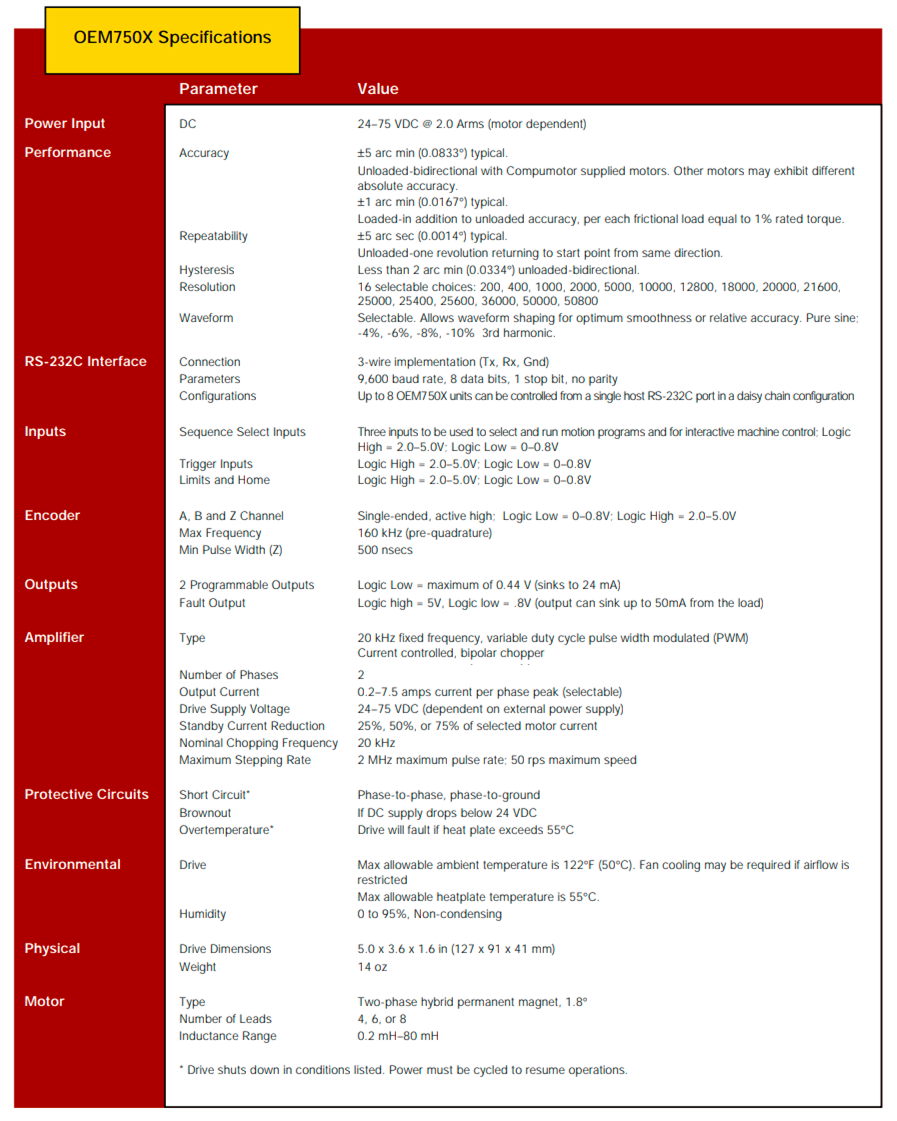

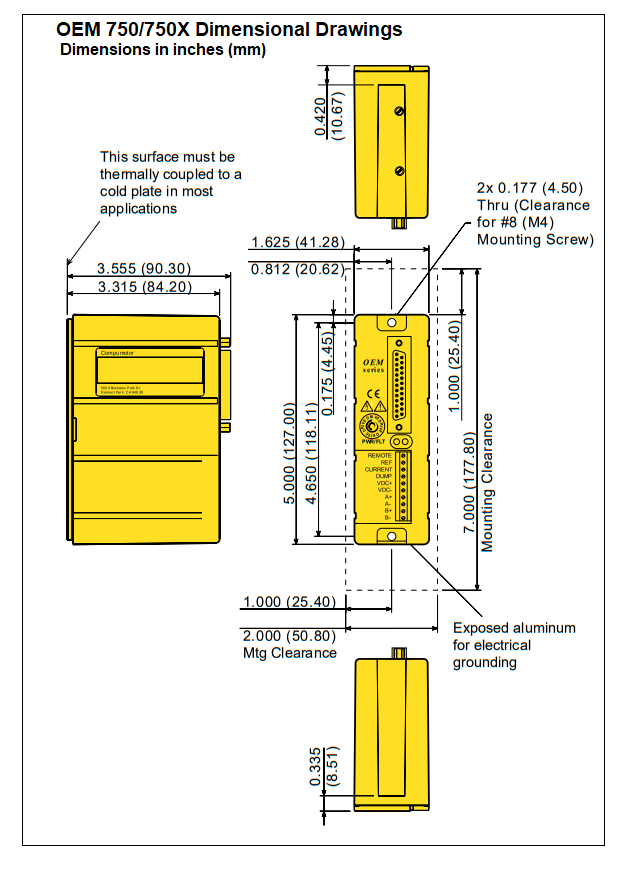

• Overall dimensions 5.0 x 3.6 x 1.6 in. (127 x 91 x 41 mm)

• Convenient configuration DIP switches

OEM750/OEM750X Stepper Drive PDF

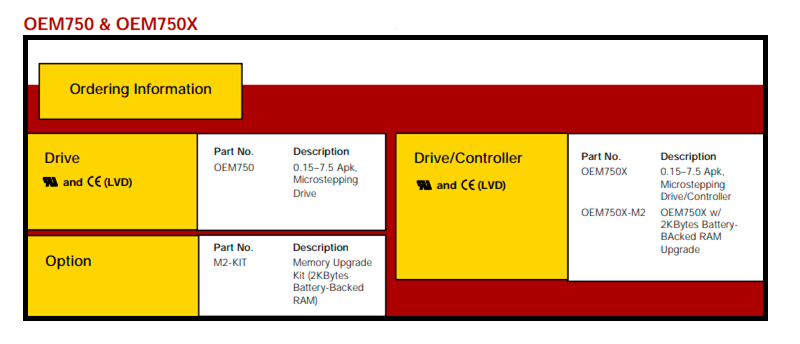

Model No.: OEM750X, OEM750X-INTL, OEM750X-M2 (Battery Backed RAM)
