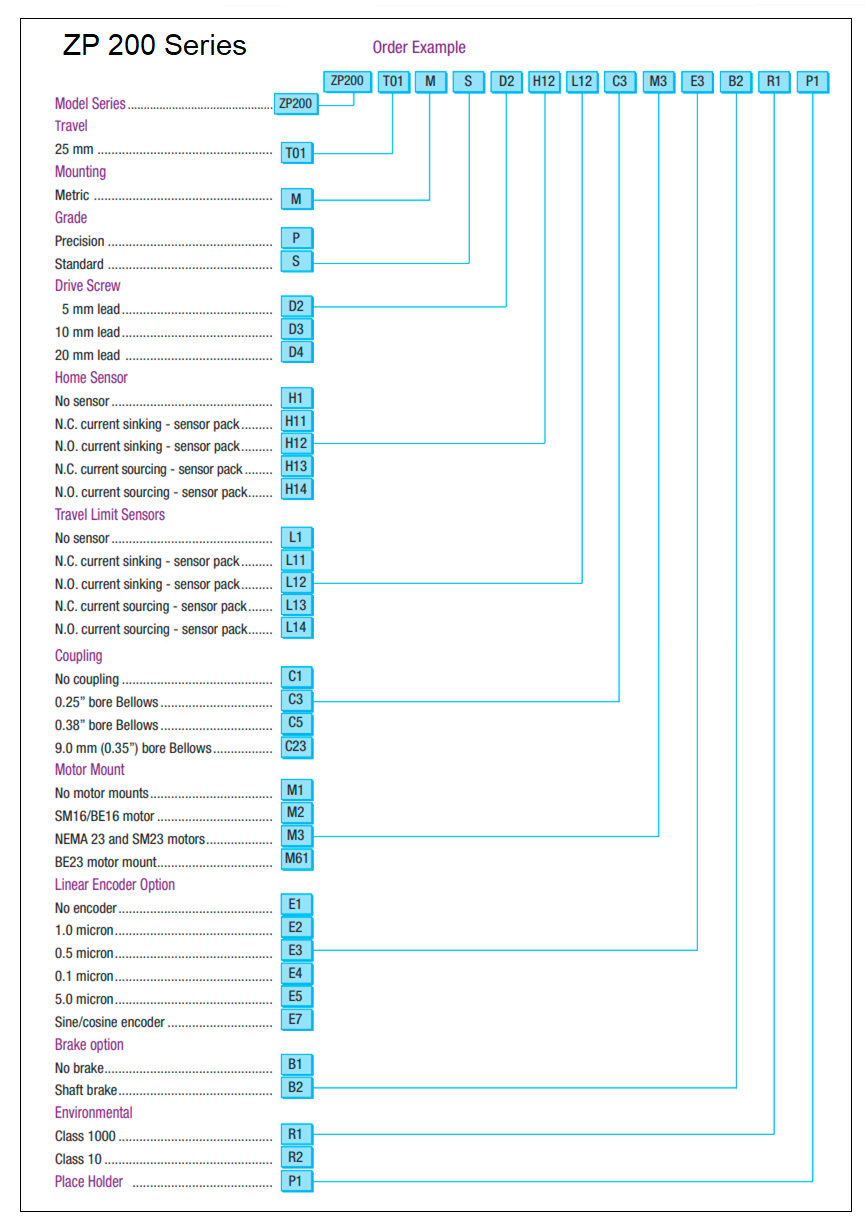

Parker: ZP200 Series Vertical Lift Wedge Table ZP200T01MSD2H12L12C3M3E3B2R1P1

The ZP200 Z axis lift table is a stable support platform which provides precise vertical translation and positioning, while maintaining X-Y integrity

Recirculating square rail bearings are incorporated into a unique variation of “wedge” mechanics to enable reliable high dynamic performance without the potential loss of travel encountered with cross roller bearings.

The ZP200 is compatible with XR and LXR tables for multi-axis systems, and it can be utilized as the system base axis or top axis to fit the motion requirements of the application. Standard mounting holes and dowel pin holes accommodate repeatable mounting.

Parkers ZP200 Vertical Lift Platform offers precise vertical translation for elevating small or large payloads (up to 167lbs). A unique wedge design converts horizontal motion, generated by a ball-screw drive, into true vertical elevation of the platform. A rugged bearing design provides platform stiffness and stability while the precision ground ball-screw drive assures positional accuracy and worry-free operation.

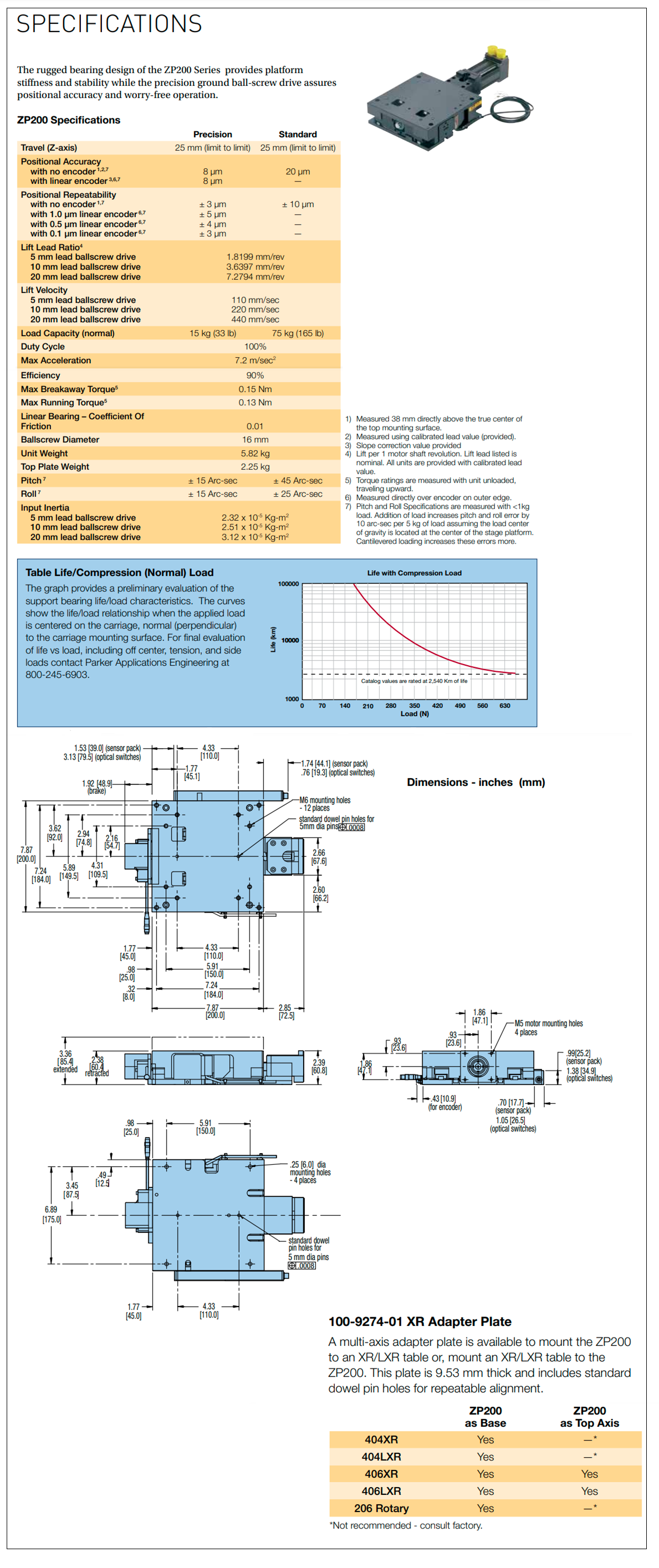

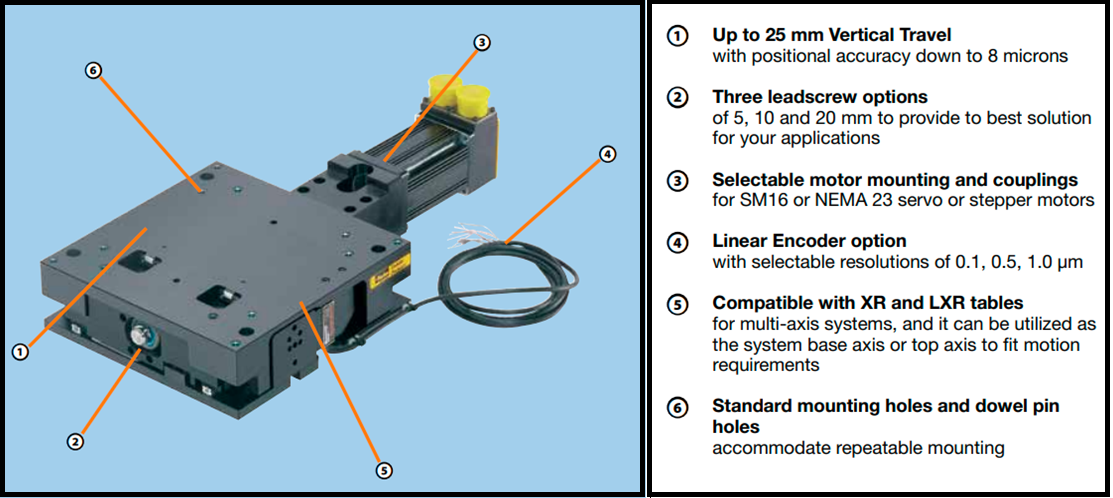

 True Vertical Lift Platform

 Continuous duty - High dynamic performance

 25 mm Vertical Travel

 Load Capacity to 167 lbs.

 Positional Repeatability to 1 micron

 +/-15 arc.sec. travel straightness throughout range of motion

 Precision Ground Ball-Screw Drive

 Encoder and Travel Limit Sensors

 Multi-axis compatibility with XR and LXR tables

 Laser tested and certified with calibrated lead value
