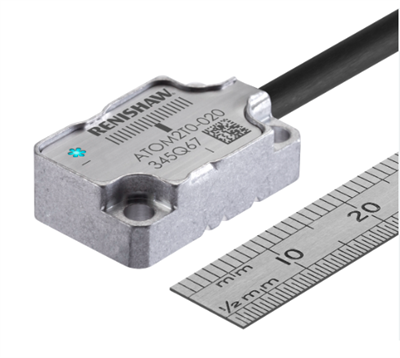

ATOM Encoder System readhead ATOM2T1-100

ATOM™ is the world’s first miniature encoder with filtering optics, providing improvements in dirt immunity, signal stability and reliability for linear, partial arc and rotary applications. ATOM features a number of other advances that help maintain signal stability, including integral Auto Gain Control and Auto Offset Control, along with a highly reliable IRED light source, making the product suitable for use in applications demanding quality and dependability

The miniature readhead is available in 2 formats: hi-flex cable output or flexible-printed circuit (FPC) output. The FPC version helps reduce overall package size, with a reduced Z-height and easy cable routing. ATOM is available with a range of high-accuracy optical linear, partial arc and rotary scales, including conventional glass spars, ‘unbreakable’ stainless steel tape scales and glass discs. Installation has been simplified by an intuitive set-up LED on the readhead that indicates signal level. Optical reference mark phasing and incremental signal optimisation can be achieved with the simple press of a button. ATOM is suitable for use in a variety of applications that require compact size, including laser scanners, CMM arms, semiconductor manufacturing, compact linear motors/motion stages, small DDR torque motors, galvanometers and microscope stages.

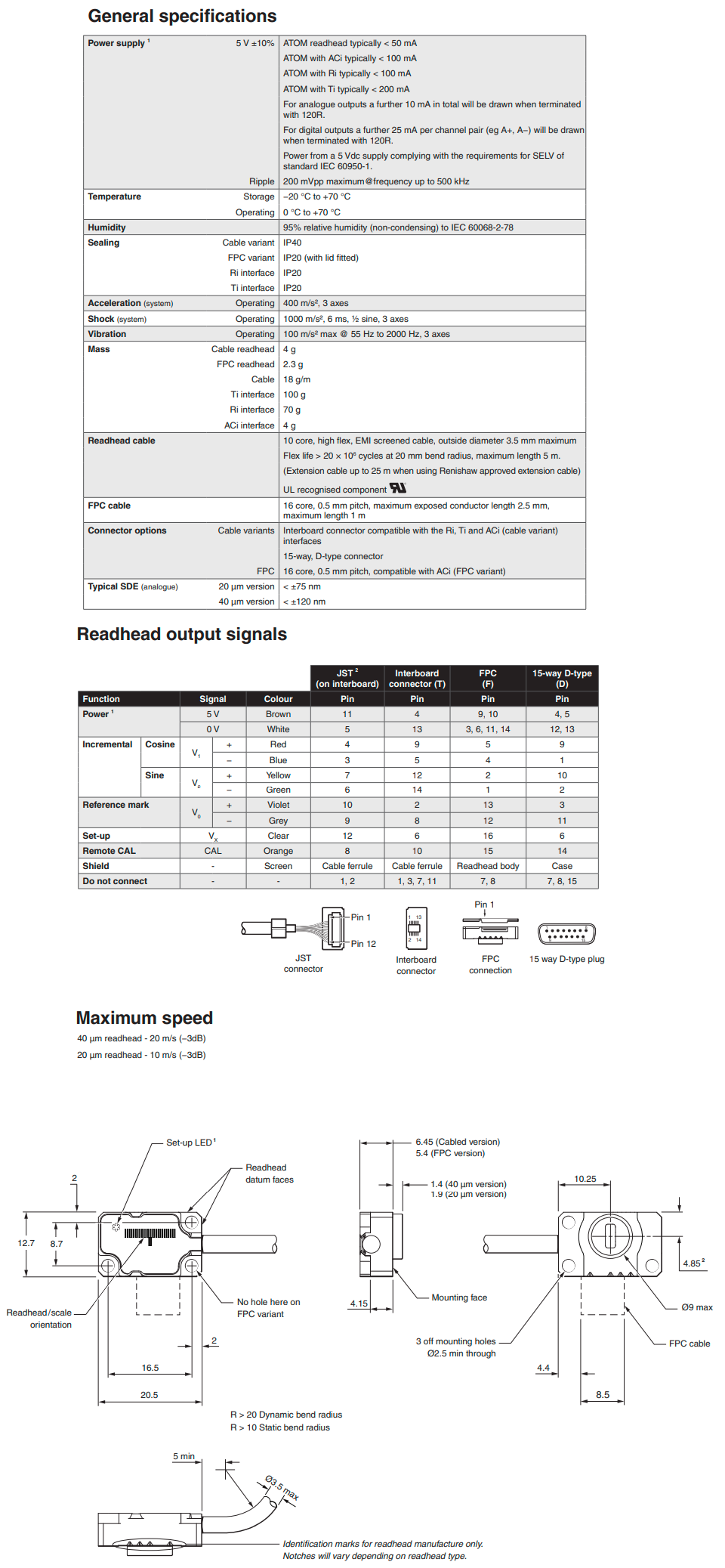

Features:

• Highest signal stability and dirt immunity in its class due to filtering optics

• Long-term stability provided by integral Auto Gain Control (AGC) and Auto Offset Control (AOC)

• Low sub-divisional error (SDE) and jitter

• Easy installation and diagnostics using the set-up LED on the readhead

• Fast, simple calibration at the push of a button

• Auto-phase optical reference mark

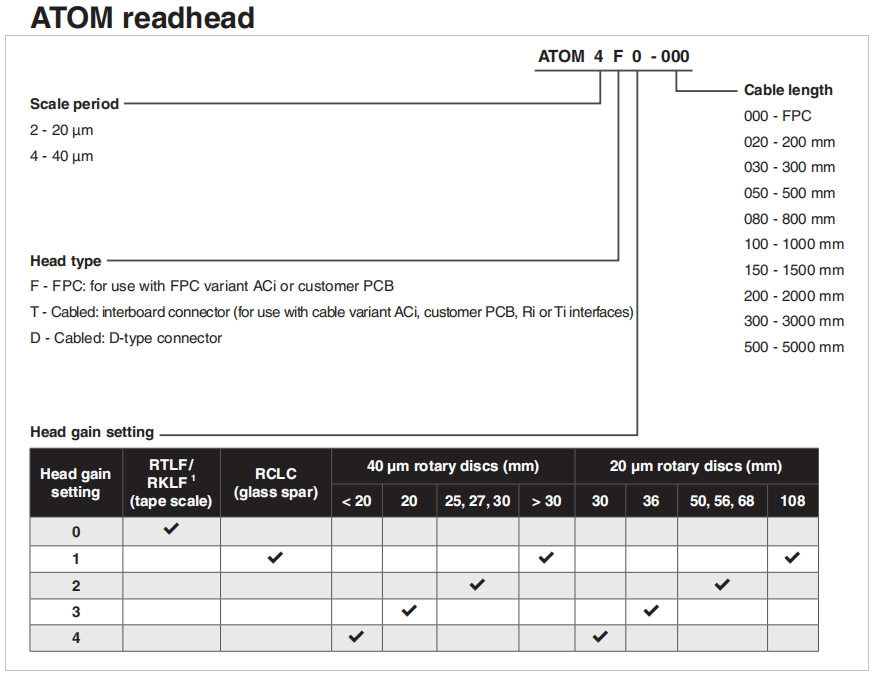

• Available in 20 µm and 40 µm scale pitch versions

• Analogue output direct from the readhead

• Multiple interpolation options, with resolutions to 1 nm

• Range of high accuracy rotary, partial arc and linear scales
