TONiC interfaces

RS422 Digital output (digital interface)

Alarm: A - Line-driven E output, all alarms; B - Line-driven E output, low & high signal alarms only; E - 3-state, all alarms; F - 3-state, low & high alarms signal only.

Ref / limit options: A - Dual active high limits (standard); B - Dual active low limits; C - Dual active high limits and wide reference mark; D - Dual active low limits and wide reference mark

E - Single active high limit and differential alarm; F - Single active low limit and differential alarm; G - Single active high limit, differential alarm and wide reference mark

H - Single active low limit, differential alarm and wide reference mark; (options C,D,G,H not valid with 0004 interpolation facto

Home > Renishaw >

Renishaw: TONiC Ti Interfaces - Ti0004A01A

Renishaw: TONiC Ti Interfaces - Model: Ti0004A01A

Renishaw

Price : $191.70

Quantity in Stock:1

Availability: Usually Ships in 3 to 5 Business Days
Order #: TI0004A01A

Qty:

Description

Ordering Information

Specifications and Drawings

Renishaw: TONiC Ti Interfaces Ti0004A01A
The TONiC series is Renishaw's super-compact, non-contact incremental encoder system that offers speeds up to 10 m/s and, when combined with the Ti interface, resolutions down to 1 nm for both linear and rotary applications.

The encoder interface offers four axes of encoder input to the SPA2-2 system, each being a 15-way high-density 'D' type connector, designed for digital tacho (encoder) input.

The encoder interface is designed to accept signals from an RS422 compliant encoder (maximum input frequency 20 MHz).

NOTE: Connection to single ended encoders is not recommended.

The 5 V supply from the encoder interface has the ability to supply a maximum of 1 A per axis pair.

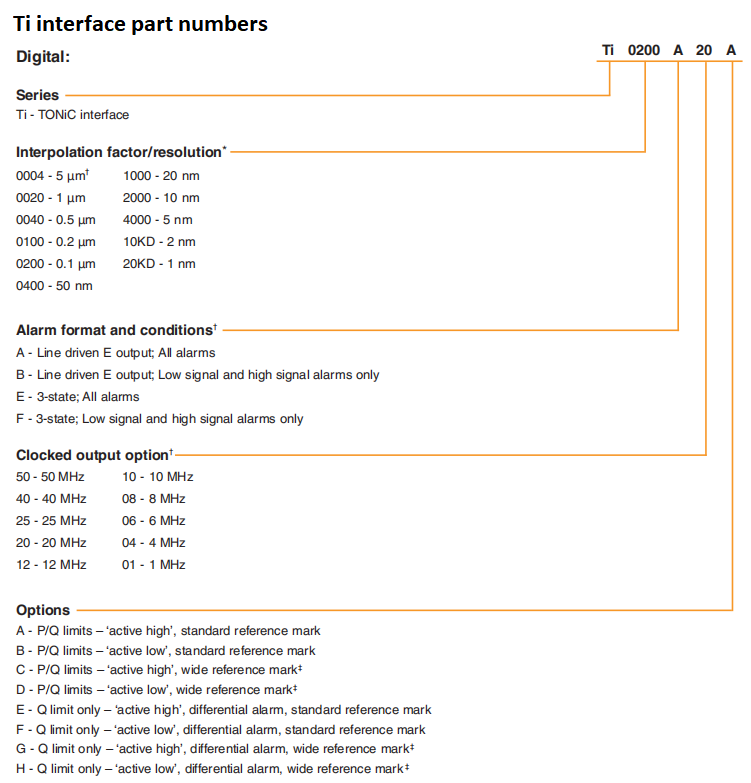

Part Number Details

Part number	Series	Interpolation factor (Resolution)	Alarm	Receiver clock frequency (MHz)	Ref/ limit options	Price US$
TI0004A50A	Ti	0004 (5 µm)	A / B / E / F	01 / 04 / 06 / 08 / 10 / 12 / 20 / 25 / 40 / 50	A / B / E / F	215
TI0020A50A		0020 ( 1µm)			A / B / C / D / E / F / G / H	267
TI0040A50A		0040 (0.5 µm)				310
TI0100A50A		0100 (0.2µm)				431
TI0200A50A		0200 (0.1µm)				491
TI0400A50A		0400 (50 nm)				517
TI1000A50A		1000 (20 nm)				560
TI2000A50A		2000 (10 nm)				603
TI4000A50A		4000 (5 nm)				646
TI10KDA50A		10KD (2 nm)				689
TI20KDA50A		20KD (1 nm)				732
Ti2000A20A		2000 - 10 nm				538.65
Ti0200A20A		0200 - 0.1 µm				438.75
Ti0020A20A		0020 - 1 µm				238.95
Ti0004A01A		0004 - 5 µm				191.70
