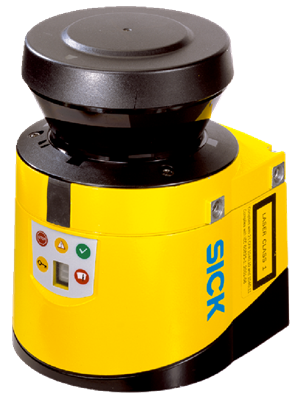

SICK: Safety Laser Scanner S30B-2011BA
SICK: Safety Laser Scanner S30B-2011BA

Alternate View
Please note: The system plug has to be ordered separately. For details, see “Accessories”.
Price : $3,276.00

Quantity in Stock:5

Availability: Usually Ships in 1 to 2 Weeks
Order #: 1026820
Qty:

Description Ordering Information Specifications and Drawings


    • Product Description

    • The S300 Standard is the cost-effective solution for applications with freely definable protective fields. The new triple field mode allows three fields – one protective field and two warning fields – to be activated at the same time. The compact design means the safety laser scanners can easily be fit to any machine. The S300 Standard is ideally suited to horizontal and vertical protection of hazardous and entrance areas. The configuration memory integrated into the system plug also enables simple commissioning and quick device replacement. CDS (Configuration & Diagnostic Software) can be used to define protective and warning fields in a convenient and standardized way on a PC or laptop.

    • At a glance

    • •Compact design • 2 m or 3 m protective field range • 270° scanning angle •1 field set •Configuration memory integrated in the system plug
    • • EFI interface for safe SICK device communication
    • • Measured data output via RS-422
    • • Contour as reference for vertical applications

    Your benefits

    • Simple integration due to compact design
    • Easy installation, commissioning and maintenance for stationary and mobile applications
    • Unbeatable cost-effectiveness – 270° scanning angle allows complete application protection with only two scanners
    • Safety engineering – with no loss of productivity
    • Quick recommissioning via configuration memory
    • Easy modular expansions, simple cabling and additional functions using SICK safety controllers with EFI
    • Decades of proven safety technology guarantee maximum reliability and availability – even under difficult conditions
    • Simple alignment and safe operation in vertical mode.

    Fields of application
    • Hazardous area protection or presence detection at loading and unloading stations.
    • Hazardous area protection on assembly lines
    • Pressure-sensitive mat replacement
    • Protection of automatically guided vehicles
    • Protection of small automatically guided vehicles (automatically guided carts)
    • Access protection for machines and systems
    • Hazardous point protection of assembly stations.
    • Feature
    • ModelSensor without system plug
      ApplicationIndoor

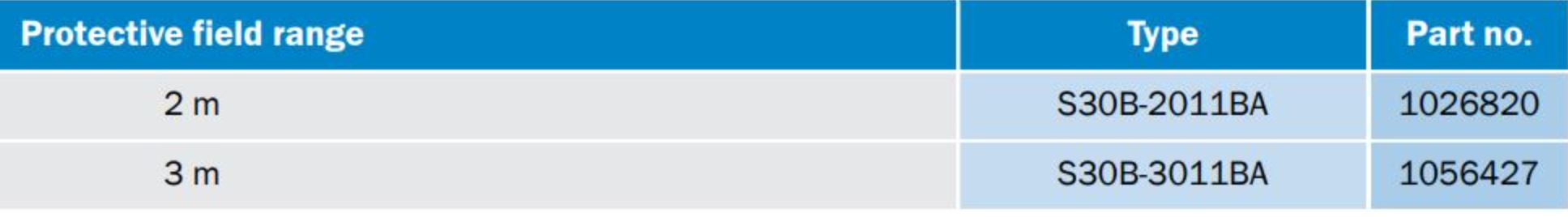

      Protective field range2 m
      Warning field range8 m (at 15 % reflectivity)
      Distance measuring range30 m
      Type of field setTriple field sets
      Number of field sets1
      Number of fields3
      Number of monitoring cases1
      Scanning angle270°
      Resolution (can be configured)30 mm, 40 mm, 50 mm, 70 mm
      Angular resolution0.5°
      Response time80 ms 1)
      Protective field supplement100 mm
      Number of multiple samplings2 ... 16, configurable
      Delay of automatic reset2 s ... 60 s, configurable
      • 1) Depending on basic response time and multiple sampling.
    Safety-related parameters
    TypeType 3 (IEC 61496)
    Safety integrity levelSIL2 (IEC 61508)
    CategoryCategory 3 (EN ISO 13849)
    Performance levelPL d (EN ISO 13849)
    PFHD (mean probability of a dangerous failure per hour)8.0 x 10-8
    TM (mission time)20 years (EN ISO 13849)
    Safe state in the event of a faultAt least one OSSD is in the OFF state.
