SIKO: Absolute Rotary Encoder (AV58M Series)
SIKO: Absolute Rotary Encoder (AV58M Series)

Price : $626.32


Availability: Usually Ships in 4 to 6 Weeks
Order #: AV58M
Qty:

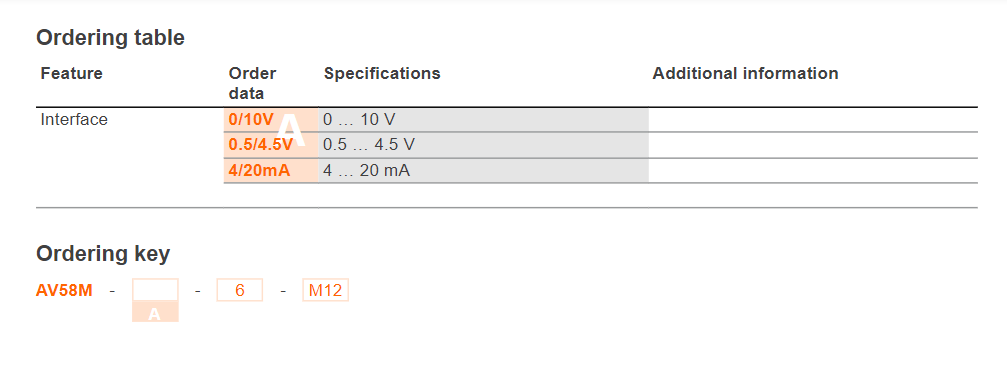

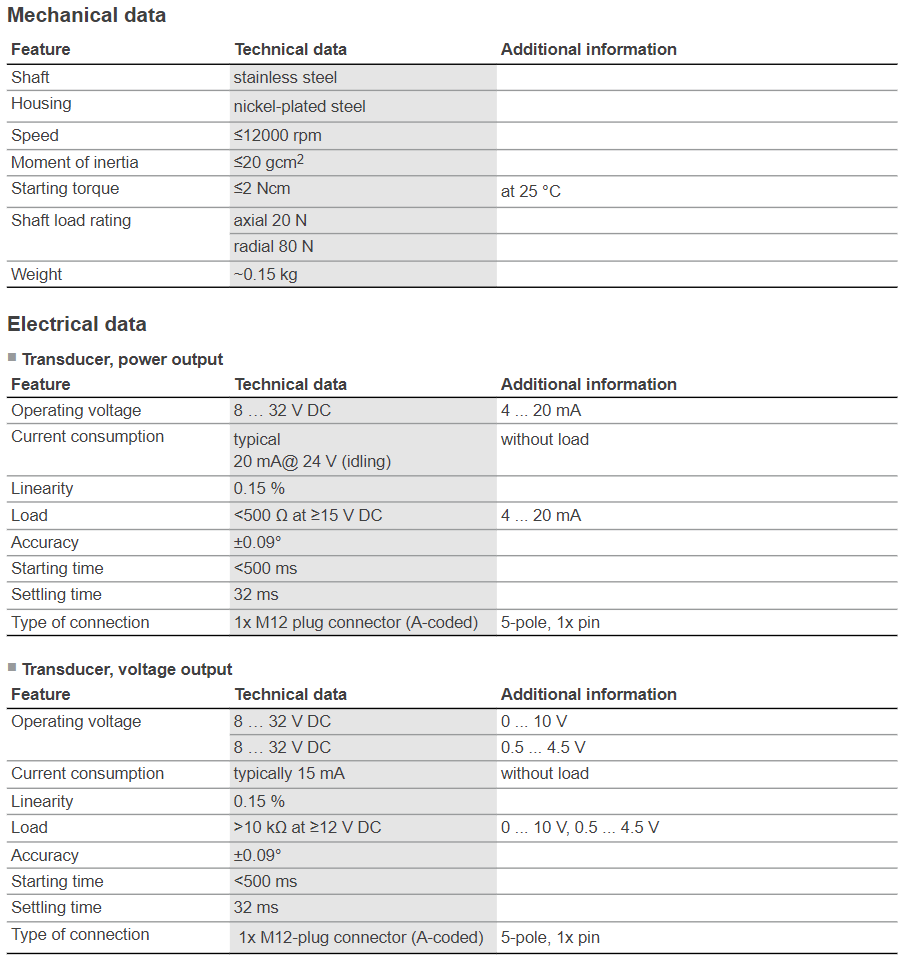

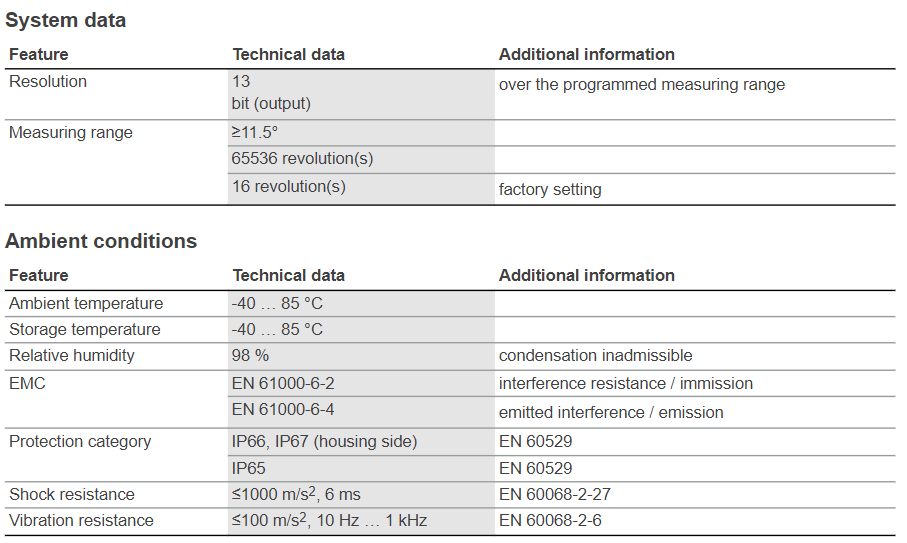

Description Ordering Information Specifications and Drawings


SIKO: Absolute Encoder (AV58M Series)

Metal housing with solid shaft

The AV58M rotary encoder with teach-in function is a magnetic absolute value encoder with analog output. The user himself can set the rotary encoder's desired measurement range via two buttons on the rear as well as two external inputs. The device features a batteryless multi-turn technology.

Profile AV58M:

  • Absolute analog encoder

  • 13 Bit (8192) resolution over the measuring range

  • Operating temperature until -40 °C

  • Voltage (0 … 10 V, 0.5 ... 4.5 V)/ current (0 … 20 mA) outputs

  • Programmable measuring range via teach-in function with key function or external inputs
