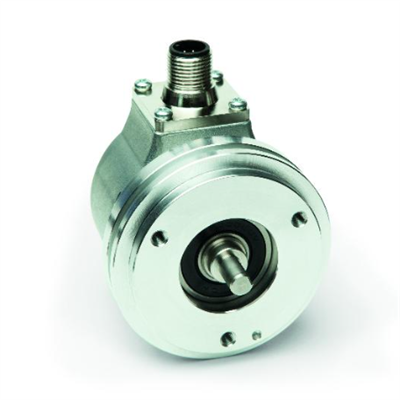

SIKO: Incremental Rotary Encoder (IV5800 Series)

Robust optical standard rotary encoder, solid shaft

The IV5800 is the robust standard rotary encoder for all cases. The incremental rotary encoder is particularly durable in almost all applications due to its resolution of up to 5,000 pulses per rotation.In addition to its robust design, it is also impressively versatile. A number of connection options, a wide range of pulse rates and mechanical adaptations are possible.
