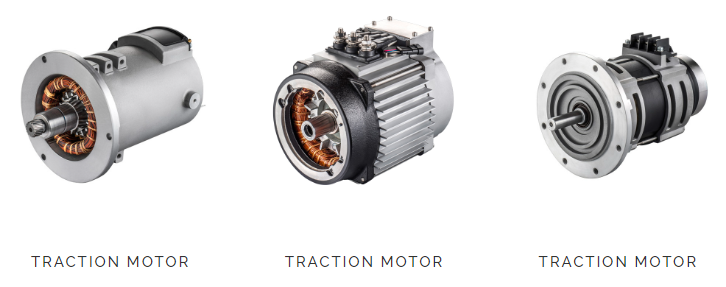

Schabmuller: Synchronous reluctance motors/generators TSR-XXX

Schabmüller is a global leader in the field of electrical drive technology. They develop, design, manufacture, test, and validate innovative, customer-specific motors for mobile work machines, battery-powered vehicles, and components for hybrid systems.

Schabmüller develops, designs, manufactures, tests and validates customer-specific solutions in a continuous process up to series-production readiness. Our company is exactly the right partner, especially for application fields with special requirements, such as mobile work machines, battery-powered vehicles, and components for hybrid systems. We set high standards with a “Made in Germany” seal.

The motors are suitable for clockwise and anticlockwise rotation as standard. If the mains cables are connected with U, V, W, a clockwise rotation results (view of the drive-side shaft end). If two connections are interchanged (e.g. W, V, U), the result is anticlockwise rotation. For machines with only one direction of rotation, the prescribed direction of rotation is indicated by a direction arrow on the machine

Synchronous machines to achieve highest power and torque output for use both as a drive system and as a generator in mobile work machines, in the voltage range from 24 to 750V battery/intermediate circuit voltage, from 0.5 to 40kW air-cooled, up to 150kW water-cooled, and up to 400kW oil-cooled.
