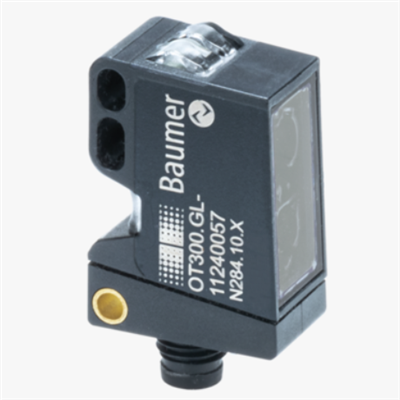

Baumer: SmartReflect Light Barriers OT300.SL-GDZZJ.72CU
Baumer: SmartReflect Light Barriers OT300.SL-GDZZJ.72CU

Baumer
Price : $429.00


Availability: Mfr. Standard Leadtime
Order #: OT300.SL-GDZZJ.72CU
Qty:

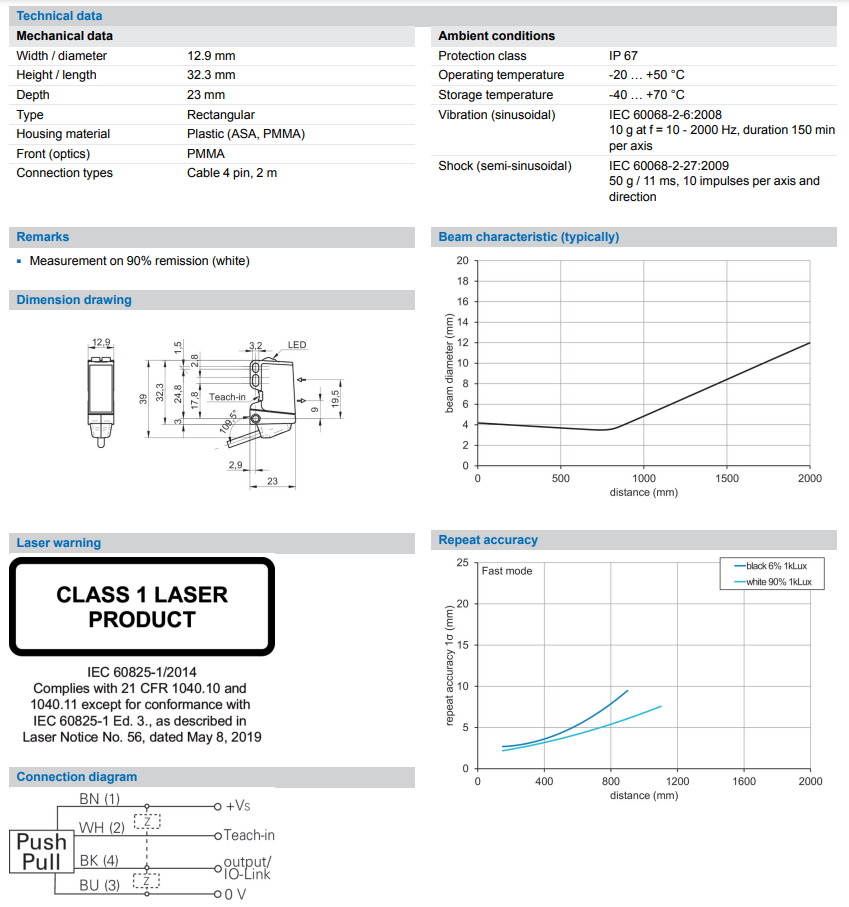

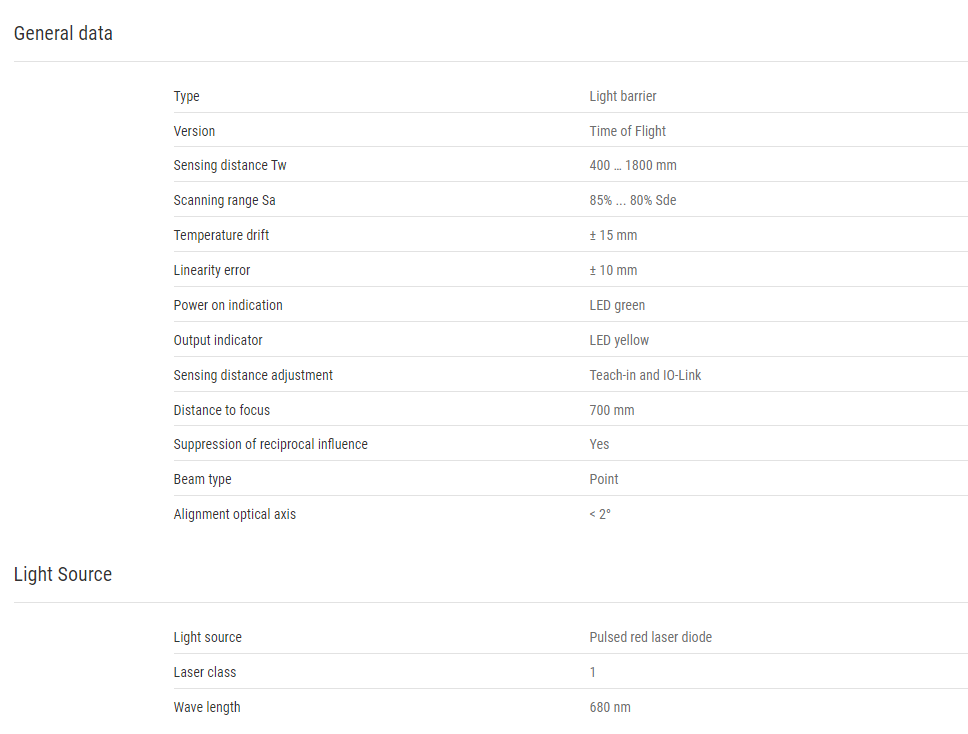

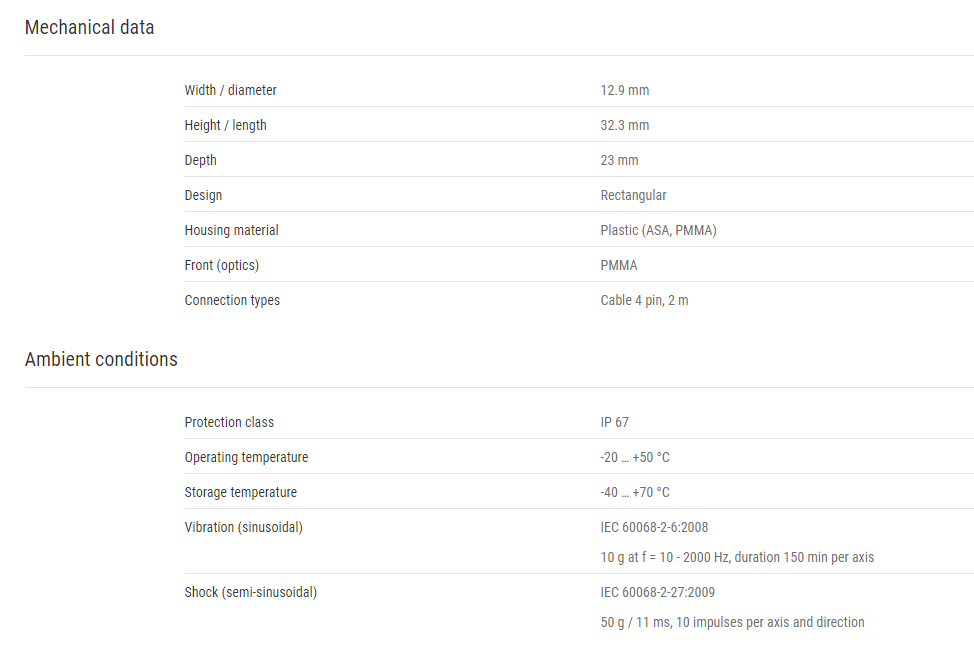

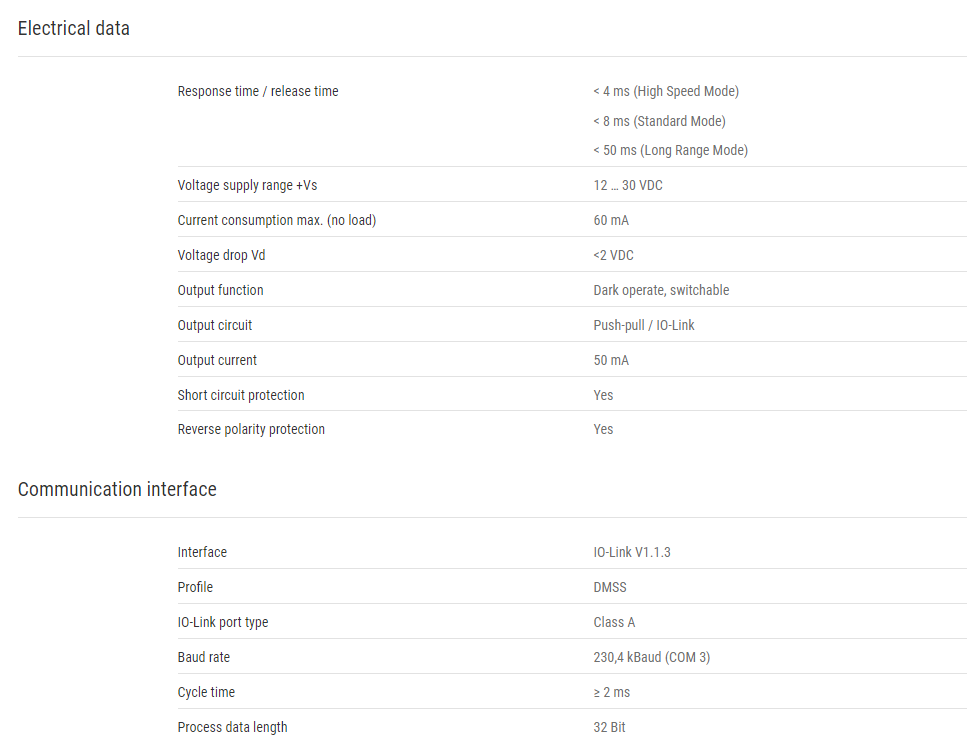

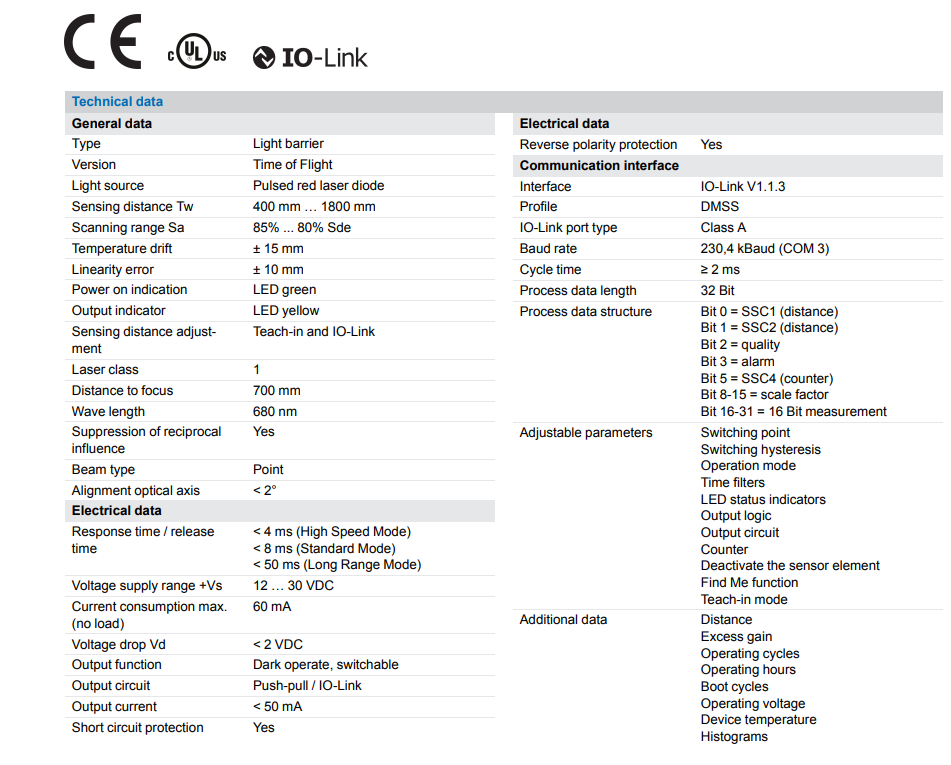

Description Specifications and Drawings

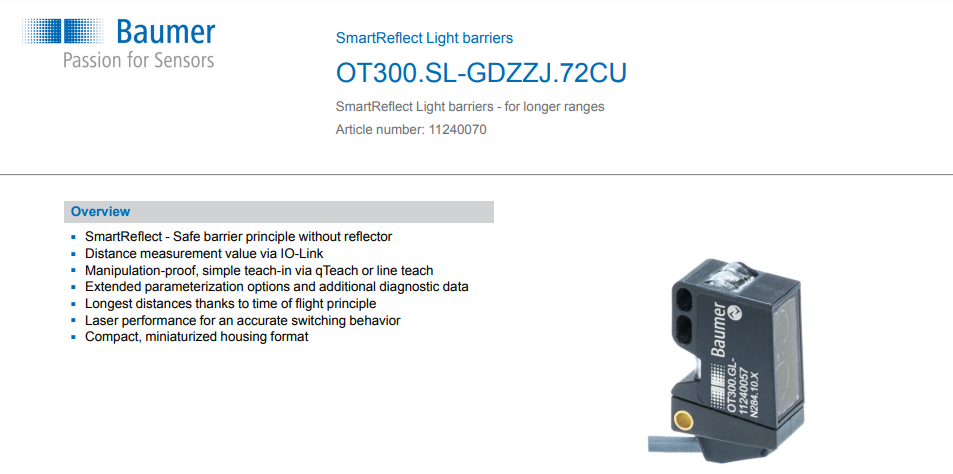

Baumer: SmartReflect Light Barriers OT300.SL-GDZZJ.72CU
Article no.: 11240070
SmartReflect Light barriers - for longer ranges
  • SmartReflect - Safe barrier principle without reflector
  • Distance measurement value via IO-Link
  • Manipulation-proof, simple teach-in via qTeach or line teach

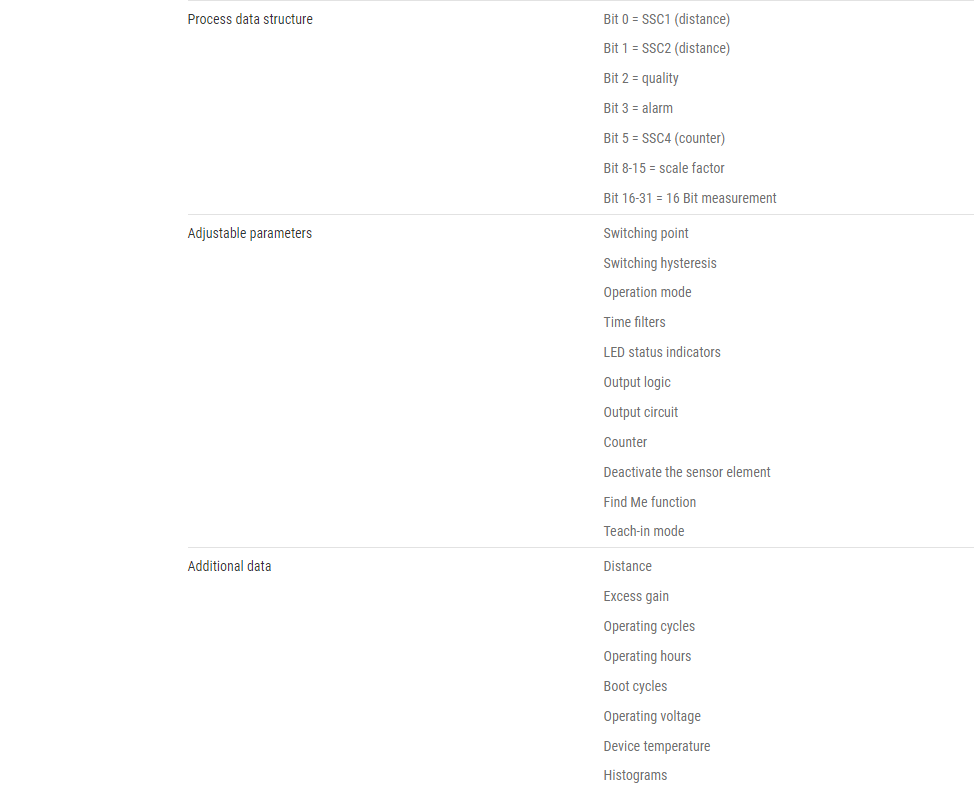

  • Extended parameterization options and additional diagnostic data
  • Longest distances thanks to time of flight principle
  • Laser performance for an accurate switching behavior
  • Compact, miniaturized housing format
Software - IODD V1.1 (OT300SL)______________________________(ZIP | 278 KB)
EPLAN ________________________________________________Link to Data Portal
