Yaskawa: AC Servo System Σ7 200W Drive SGD7S-1R6A10A
Yaskawa:  SGD7S-1R6A00A

Price : $686.00


Availability: Subject to availability
Order #: SGD7S-1R6A10A
Qty:

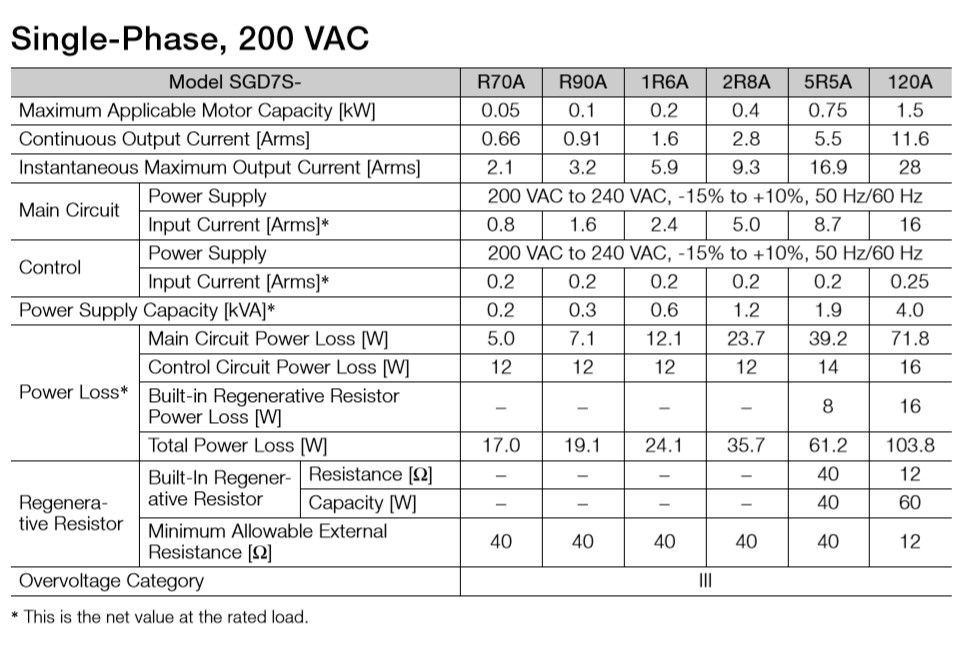

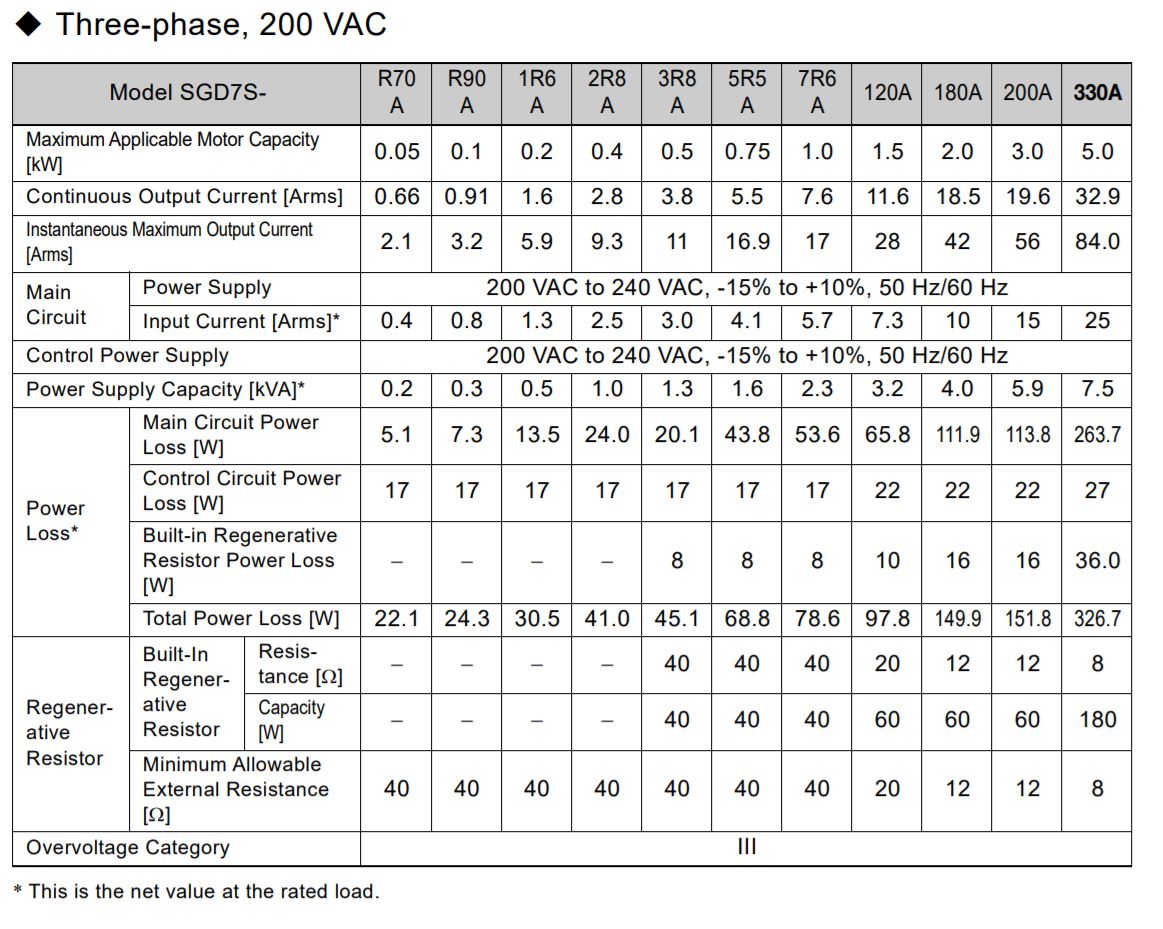

Description Ordering Information Specifications and Drawings




Model: SGD7S-1R6A10A

AC Voltage:200V

Output Power: 200W

Interface: MECHATROLINK-II

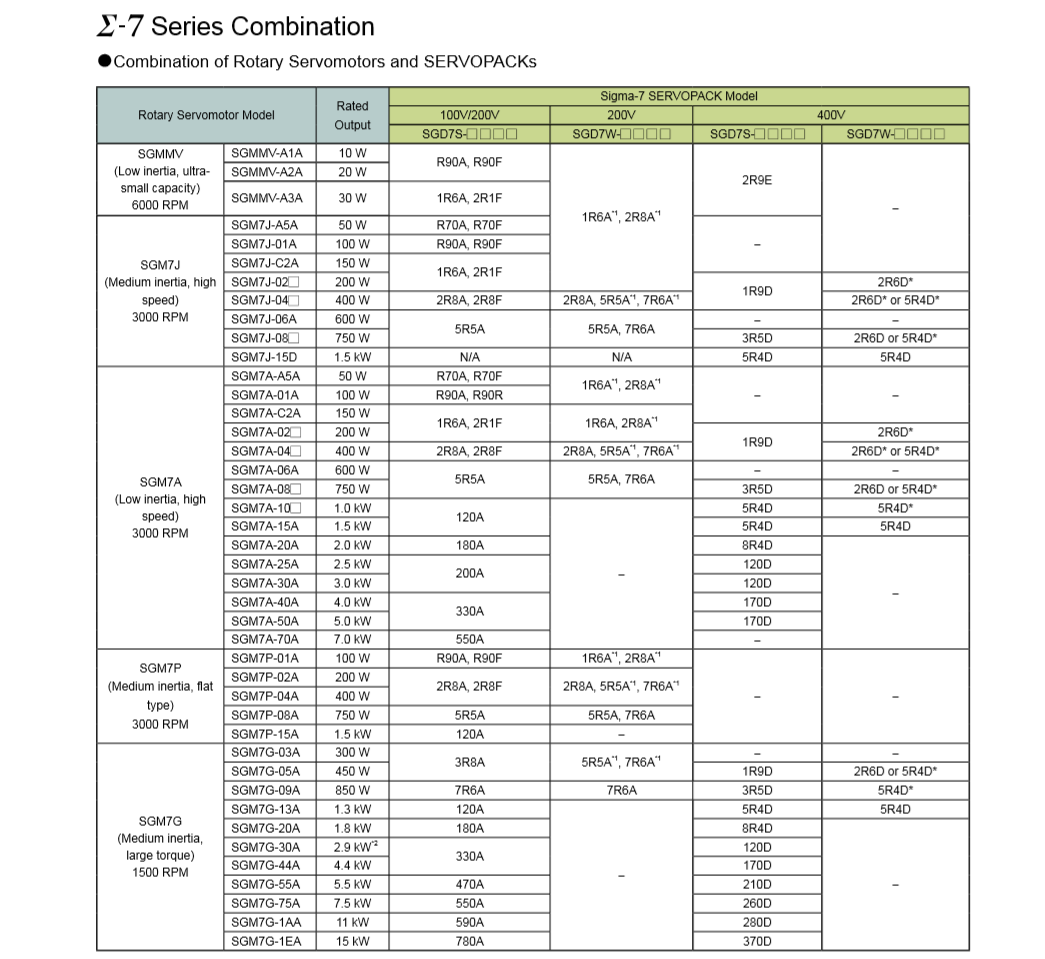

Supporting Motor
Model: SGM7J-02AFC6E
Buy Now

Type: Servo Motor

Phase: Three-phase

Output Power:200W

Protect Feature: Drip-proof

Frequency:50/60Hz

AC Voltage:200V

Efficiency: High efficiency

Rated Torque:0.637Nm

Rated Speed:3000rpm

Rated Current: 1.6A
Encoder:
24-bit resolution

Certification:VDE,CCC,ROHS,UL,CE






Supporting Accessory: Motor Power Cable

Model: JZSP-C7M03-03-E


Buy Now
3m standard cable with connectors and without brake wires




Supporting Accessory: Motor Encoder Cable

Model:
JZSP-CMP00-03-E

Buy Now

3 meters incremental encoder cable

Supporting Accessory: I/O Signal Soldered Connector Kit

Model: LJZSP-CSI9-2-E

Buy Now
I/O Signal Soldered Connector Kit


Share your knowledge of this product. Be the first to write a review »
