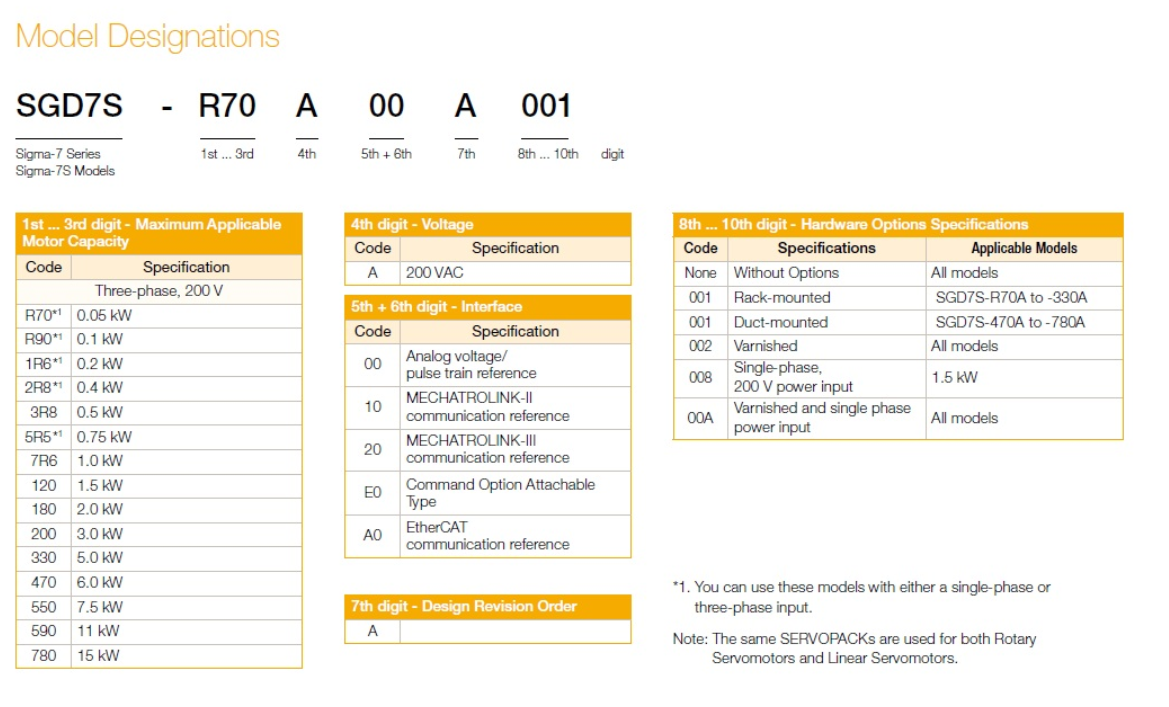

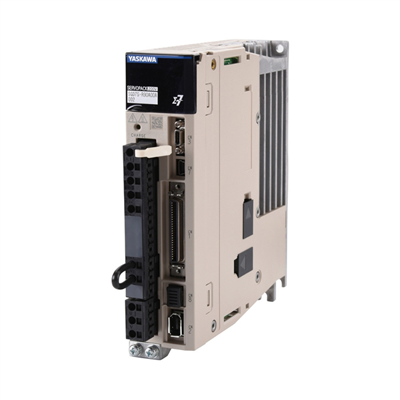

Model: SGD7S-R90A10A

AC Voltage: 200V

Output Power: 100W

Interface: MECHATROLINK-II

Supporting Motor
Model: SGM7J-01AFC6S

Type: Servo Motor

Phase: Three-phase

Output Power:100W

Protect Feature: Drip-proof

Frequency:50/60Hz

AC Voltage:200V

Efficiency: High efficiency

Rated Torque:0.318Nm

Rated Speed:3000rpm

Rated Current:0.85A
Encoder:24-bit resolution

Certification:VDE,CCC,ROHS,UL,CE

Supporting Accessory: Motor Power Cable

Model: JZSP-C7M03-03-E

3m standard cable with connectors and without brake wires




Supporting Accessory: Motor Encoder Cable

Model: JZSP-CMP00-03-E

3 meters incremental encoder cable

Supporting Accessory: I/O Signal Soldered Connector Kit

Model: LJZSP-CSI9-2-E

I/O Signal Soldered Connector Kit
