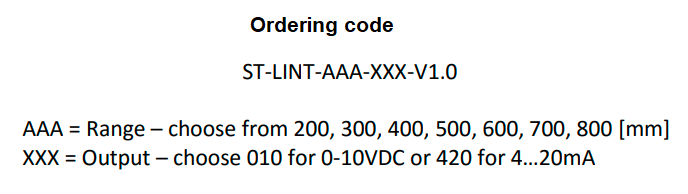

LINTRAN Linear Position Transducers ST-LINT-AAA-XXX

Zettlex LINTRAN transducers are non-contacting, absolute, linear position measuring devices. They utilise a unique inductive technique and comprise two main components – a Target and a Stator. The Stator is longer than the Target and is powered with an electrical supply and can be moving or stationary.
Zettlex LinTran encoders are sealed to IP67 and are ideally suited to harsh environments where electrical contacts or optical transducers would prove unreliable. The LINTRAN linear encoder range offers a cost effective alternative to LVDTs, magnetostrictive devices or precision potentiometers. LINTRAN inductive linear position encoders have wide mounting tolerances and are field-programmable without a PC.
Product Description:
LinTran 200 is a non-contact inductive linear position sensor for high-accuracy measurements under difficult environmental conditions. This non-contact linear position sensor has a 200mm measurement range and is available with Analogue 0-10V or Resistive 4-20mA output signal.
LinTran 300 is a non-contact, inductive linear position sensor with 300mm measurement range. This 300mm linear position sensor is designed for high-accuracy position measurement in difficult environmental conditions. 300mm measurement range linear position sensor, available with Analogue 0-10V or Resistive 4-20mA output signal.
LinTran 400 is a non-contact inductive linear position sensor with a 400mm measurement range, available with either Analogue 0-10V or Resistive 4-20mA output signal. LinTran 400 is designed to provide accurate reliable position feedback in harsh operating environments, over the maximum 400mm measurement range.
LinTran 500 is a non-contact, inductive linear position sensor with a large 500mm measurement range. With no contact between the sensor and the moving target, this linear position sensor is particularly well suited to harsh operating environments. Large 500mm measurement range, available with Analogue 0-10V or Resistive 4-20mA output signal.
LinTran 600 is a robust, non-contact linear position sensor with a large 600mm measurement range. This long-stroke linear position sensor uses inductive technology to provide accurate and reliable feedback about linear position, and is designed for suitability in harsh operating environments. This long-stroke position sensor is available with Analogue 0-10V or Resistive 4-20mA output signal.
LinTran 700 is a robust inductive linear position sensor with a large 700mm measurement range. LinTran 700 is well suited to long-stroke linear position measurement applications and, with no contacting parts, provides accurate and reliable data in harsh operating environments. 700mm measurement range, available with Analogue 0-10V or Resistive 4-20mA output signal.
LinTran 800 is a non-contact, long-stroke linear position sensor with a large 800mm measurement range. LinTran 800 is ideal for long-stroke position measurement in harsh environment applications. Long-stroke – 800mm measurement range; available with Analogue 0-10V or Resistive 4-20mA output signal.
