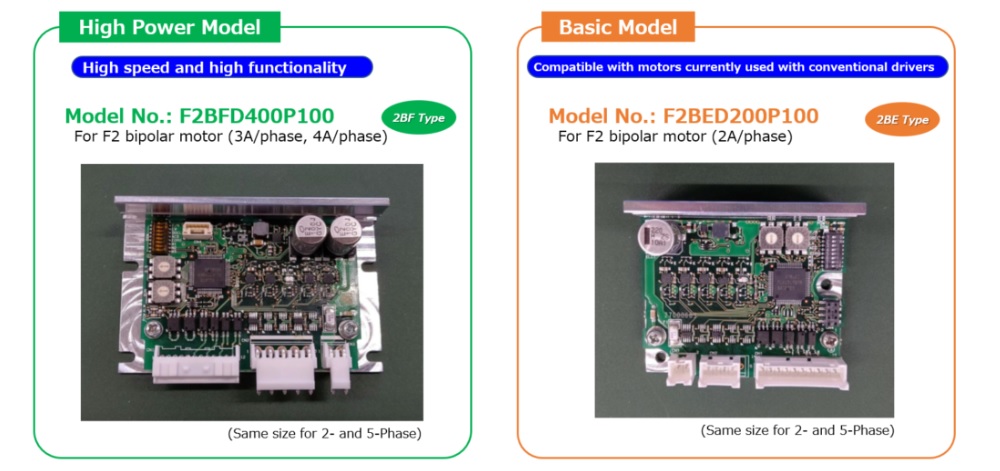

Sanyo Denki has expanded its lineup of the SANMOTION F2 2-phase
stepping system by adding 2 new stepping driver models – high-power and basic
models – to each series.
The high-power models can drive motors with high torque,
shortening your equipment's cycle time.
The basic models are designed to easily replace our current
models(1) while being smaller and lighter.
Both models achieve significantly reduced motor vibration during
operation. This expansion offers more flexibility to customers seeking the
right solution for their specific needs.
E-Motion America Inc. supplies our customers with Sanyo Denki New
SANMOTION F2 Stepper Drivers.
They are suitable for medical equipment, semiconductor
manufacturing equipment, measuring instruments, analyzers, and electron
microscopes.
Features
|
|

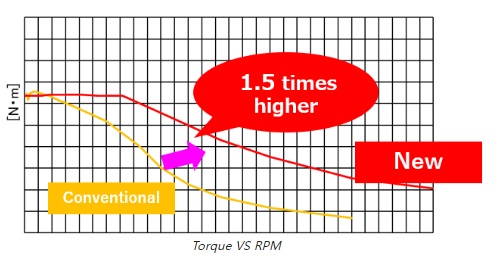

Due
to the expanded motor excitation current, the high-power models provide a
torque that is 1.5 times higher during high-speed operation, resulting in an
8.7% improvement in maximum efficiency compared to our conventional model. This
feature plays a significant role in reducing the machine cycle time
.
|

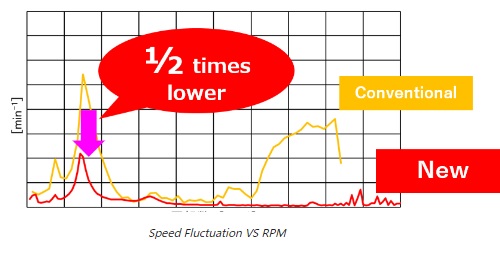

Our latest
current control method not only reduces the average speed fluctuation to less
than half but also decreases the motor noise by an average of 3.2 dB, compared
to our conventional model. These features are available on both a high-power
model and a basic model. Moreover, by utilizing the low-vibration mode, you can
achieve smooth operation that’s equivalent to micro-stepping while still
maintaining full-step or half-step commands. These enhancements in precision
and performance make our motors ideal for a wide range of applications.
|
|
|
|
SANMOTION F2‘s high-power
model comes equipped with abundant functions and custom settings that can be
easily optimized using a PC, as opposed to complex manual adjustments. These
custom settings allow for precise control over a range of parameters,
including:
I/O signal function
selection – Operating current limit signal, limit signal, and alarm output.
Current Setting – Current at
rest and switch time during current at rest.
Advanced motor control
options – Electronic gear and speed command filter, ensuring optimal
performance for your specific application.
|
Our drivers
are designed with safety and security in mind, featuring comprehensive
protective functions that ensure both the high-power and basic models operate
safely and reliably. The new driver can detect system failures, abnormal
voltage, overheating, and overcurrent, and promptly notify the host device with
an alarm to prevent any further damage. Additionally, the alert function can be
customized to notify the user before the motor stops by changing the settings.
Furthermore,
our drivers are equipped with a maintenance notice function that notifies the
host device when the travelled distance or operation time reaches a preset
value, ensuring optimal performance over an extended period of time. Please
note that these alerts and maintenance notices are exclusive to the high-power
model drivers, further enhancing their reliability and performance.
|
|
|
|
Upgrading
to our new stepper motor driver models is made easy with the basic models, as
they have the same mounting and interface compatibility as our current models.
By simply replacing your current stepping driver with our new model, you can
improve your equipment’s performance without having to change your current
motor.
|
Our newly designed
high-power models boast a significant 63% reduction in volume and 73% reduction
in mass compared to the current model. Meanwhile, the basic models offer a 7%
reduction in volume and a 39% reduction in mass while still maintaining
compatibility with the current models.
|
