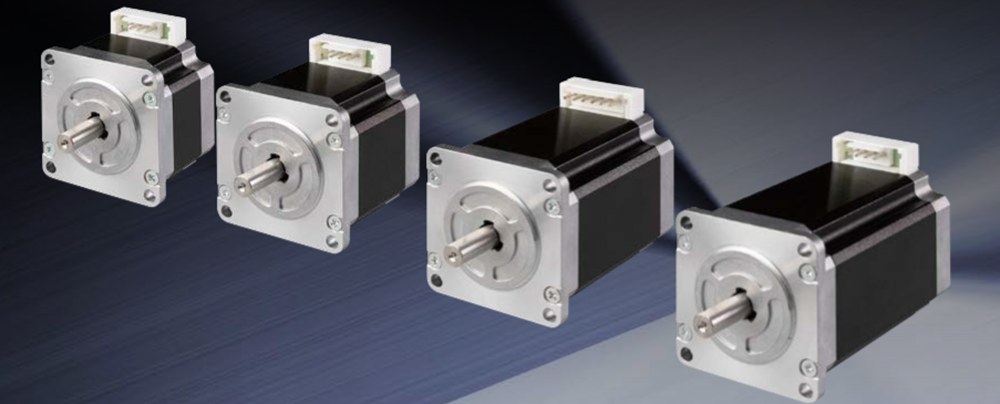

SANMOTION NEMA 23 (Flange size: 56 mm) two phase stepper motors are designed with high torque, low noise, and energy saving efficient machine performance

Designed for high-torque, low noise, and efficiency the new F2 series Stepper Motor provides quick indexing motion that's easy to set up.

Features:

1. High torque to reduce operating time

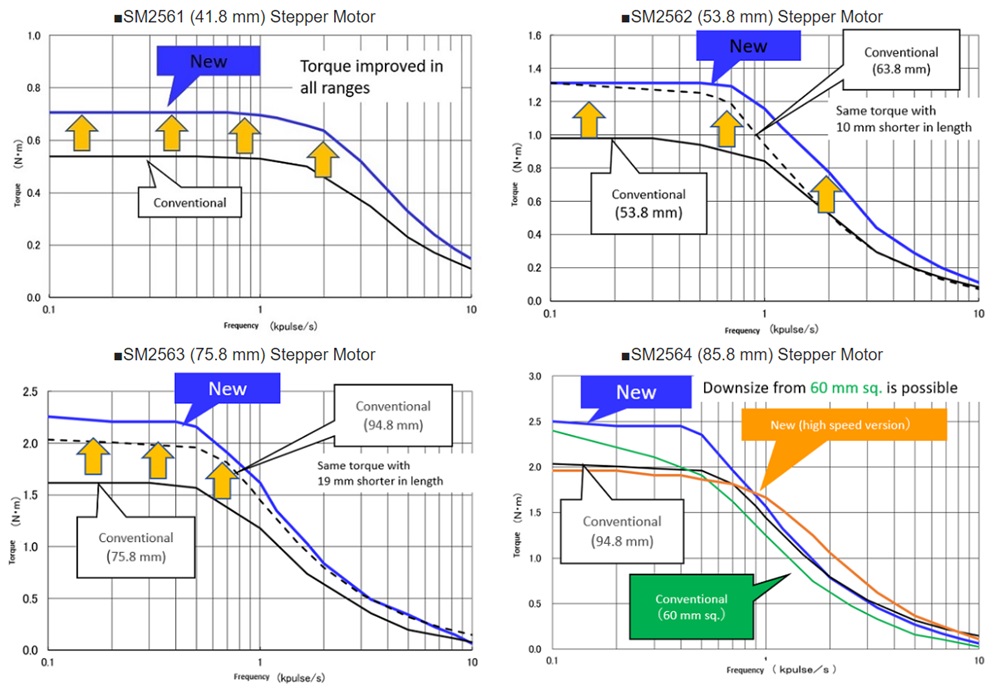

Torque is improved in all speed ranges, and it is more than 40% higher in the speed range that is most frequently used. This contributes to shortening the positioning time and machine cycle time.

2. Reduce noise level of equipment
These stepper motors have noise levels approximately 3 dB lower than the previous model which contributes to reducing the overall noise level of equipment.

3. Improve energy-saving of equipment
Higher motor efficiency was achieved by lowering heat generation. Rising temperature from rotating is reduced by improving the efficiency by as much as 5.4~53.1K lower than conventional products under the same output. This contributes to reducing the power consumption of machines and the motor’s heat dissipation.

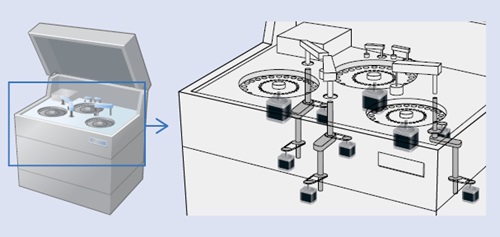

Application: Blood Analyzer

The SANMOTION F2 Stepper Motor can be used in a wide variety of applications, including a fixed-speed drive synchronized to a command pulse, accurate positioning, and stable stopping. Medical devices, industrial equipment, semiconductor manufacturing equipment, conveying machines, and index table driving are some of the examples of NEMA23 Stepper Motors applications.
