eCobra SCARA robots offer a compact system footprint, saving valuable floor space while minimizing installation costs and complexity.

Omron's Adept eCobra 600/800 SCARA robot series features 600 or 800-mm reach and is available in three performance tiers, each designed to address different application complexity and throughput requirements. eCobra offers a compact footprint, saving valuable floor space while minimizing installation costs and complexity. This unique family ensures that users receive the highest quality, most durable robots at every performance level.

• All amplifiers and controls are fully embedded into the robot to maximize valuable floor space and reduce installation costs (cables, control cabinets, labor, etc)
• Three performance levels (Lite, Standard, and Pro) based on a common hardware platform. Maximizes value by only paying for the performance required for the application, without sacrificing hardware quality
• Upgrade performance with a software license download. Easily upgrade your robot to increase production throughput with a simple software upgrade
• Advanced features such as direct PLC programming are included in Standard and Pro performance tiers- minimize training and deployment time using familiar ladder logic programming languages of existing PLC
• Adept ACE™ provides an effective way to deploy applications, without lengthy, overly-complicated programming
• Includes a powerful 3D emulator that allows complete system configuration and testing in a virtual environment

SCARA Robot Series

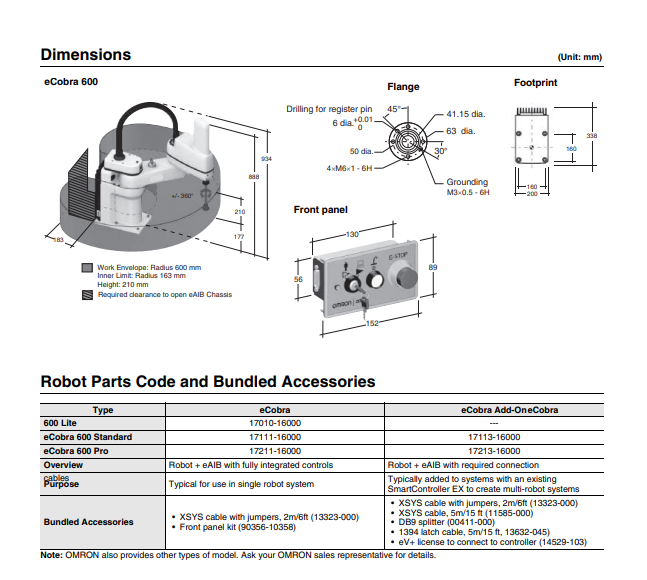

eCobra 600

• Max. Payload range: Rated: 2.0 kg Max.: 5.5 kg
• Reach range: 600mm (23.6")
• Number of Axis : 4

eCobra 800

• Max. Payload range: Rated: 2.0 kg Max.: 5.5 kg
• Reach range: 800mm (23.6")
• Number of Axis : 4

eCobra 800 Inverted

• Payload range: Rated 2 Kg; Max 5.5 Kg
• Reach range: 800 mm
• Number of Axis : 4
