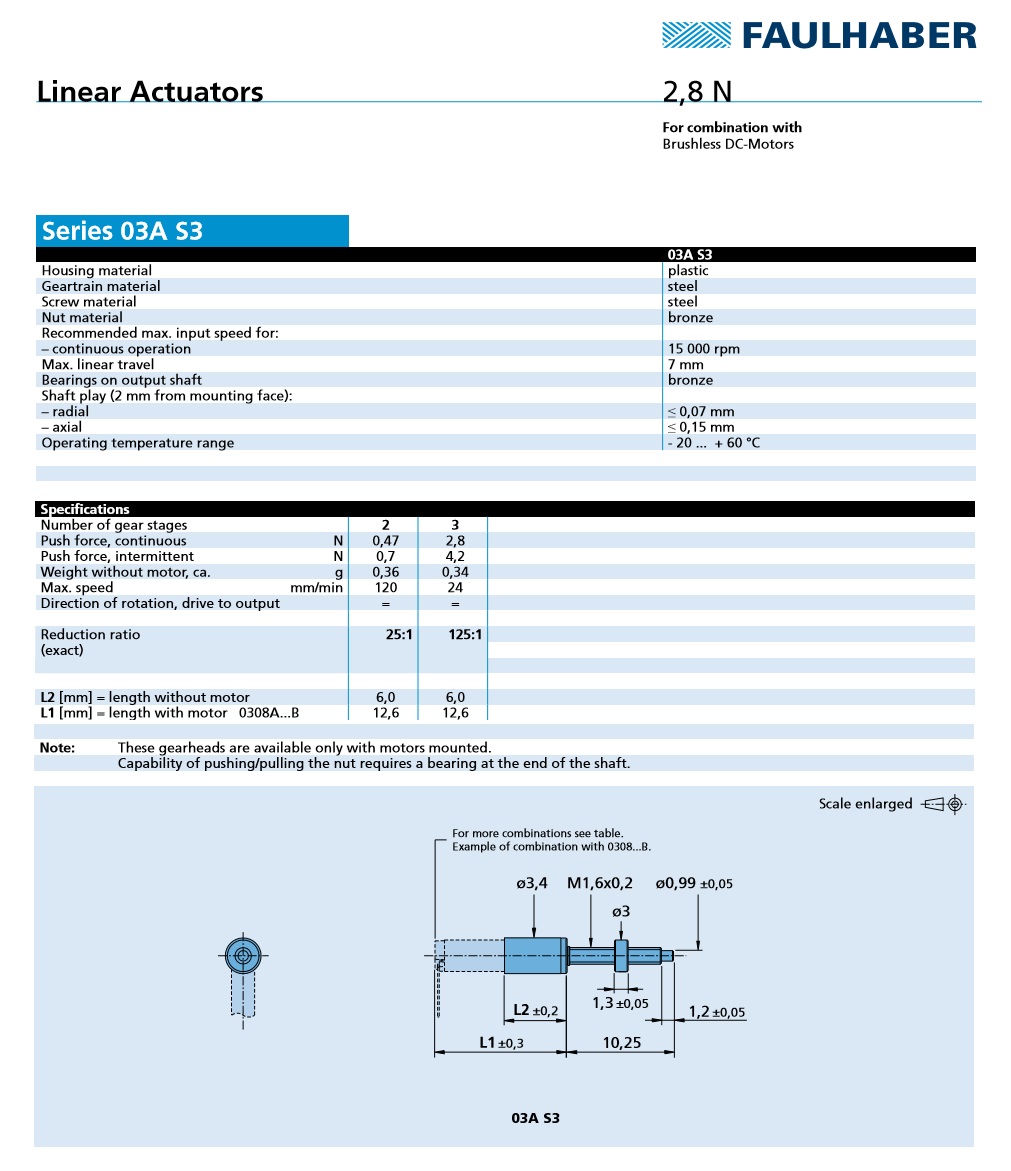

Specifications and Drawings

Faulhaber: Linear Actuators - Smoovy® Technology (03A S3 Series)

With permanent magnets which rotate within a fixed armature, the compact BLDC Micromotor features a brushless commutation design for long lasting performance. The Flexprint connection also allows for easy integration.

Specifications:

Diameter (mm): 3.4
Length with motor (mm): 12.6
Standard Ratios (from...to): 25:1, 125:1
Continuous pull force (N): 2.8
Intermittent pull force (N): 4.2
