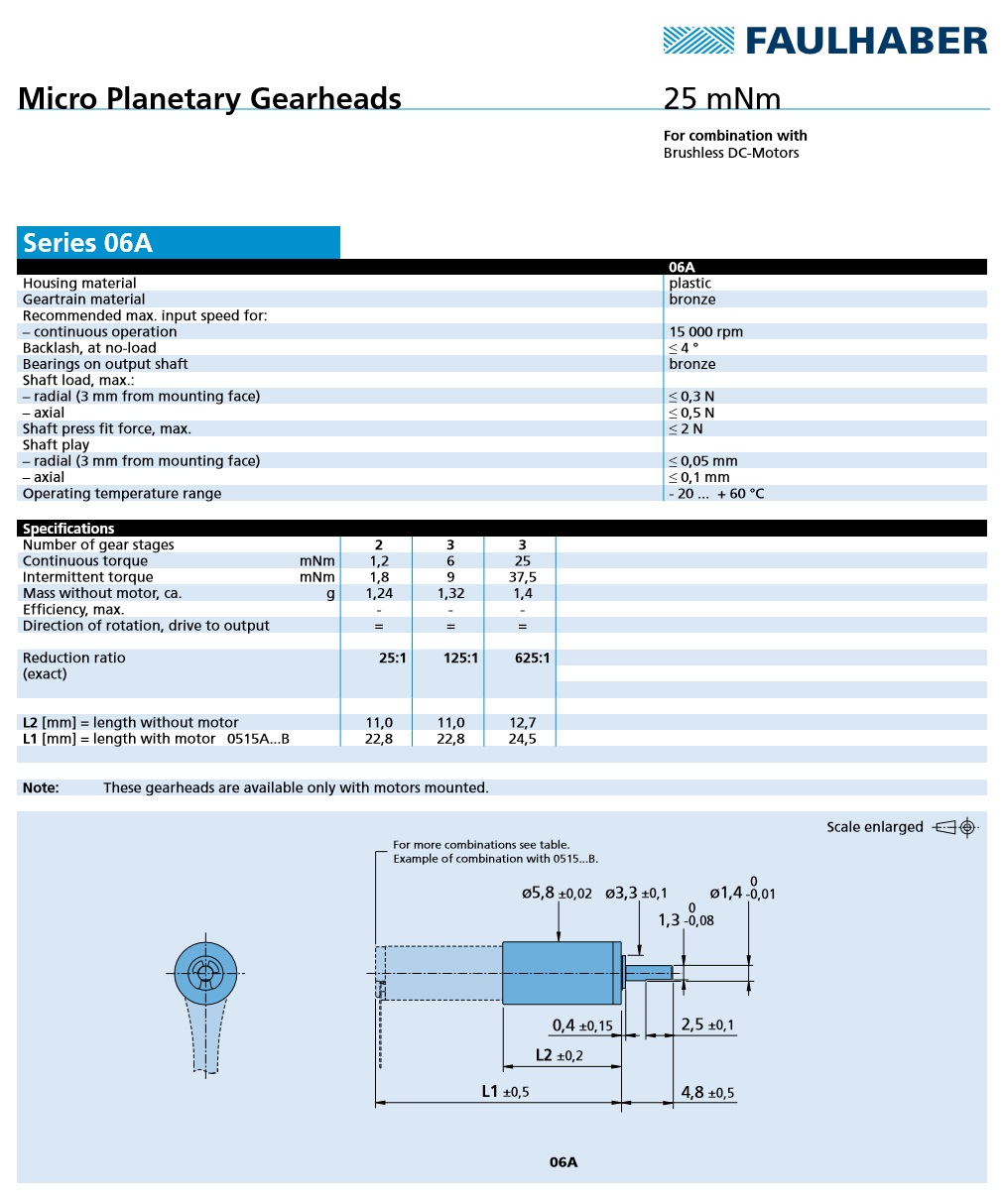

Description Specifications and Drawings


Faulhaber: Micro-Planetary Gearheads (06A Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 5.8

  • Shaft Diameter (mm): 1.4

  • Standard Ratios (from...to): 25:1, 125:1, 625:1

  • Torque Cont. duty (mNm): 25

  • Intermittent duty Torque (mNm): 37.5

Model No.: 06A 125:1, 06A 25:1, 06A 625:1
