Faulhaber: Spur Gearheads (08/2 Series)
Faulhaber: Spur Gearheads (08/2 Series)

Alternate View
Call for Pricing

Price Quote Form


Order #: 08-2


Model Number/Code*:

.

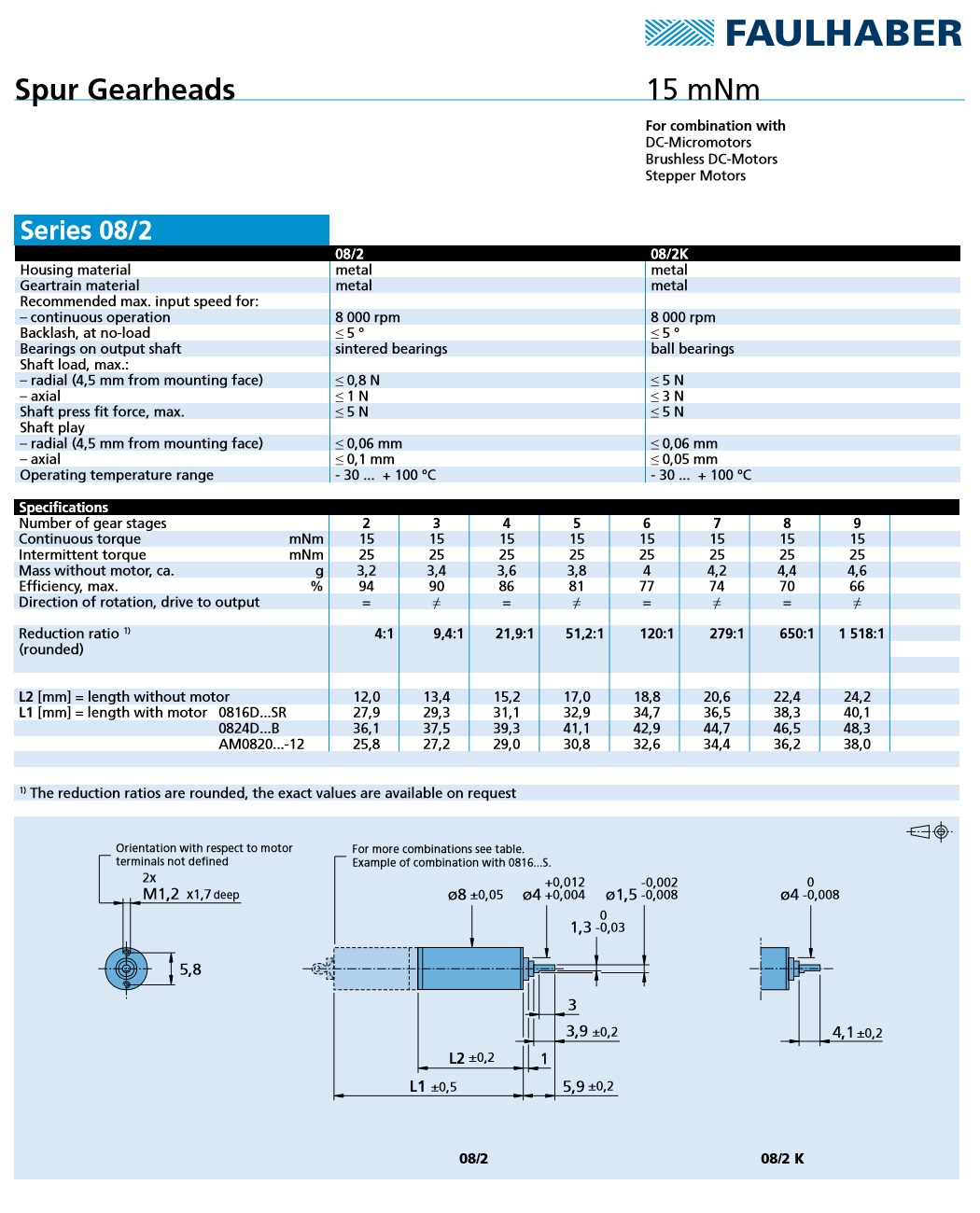

Description Specifications and Drawings

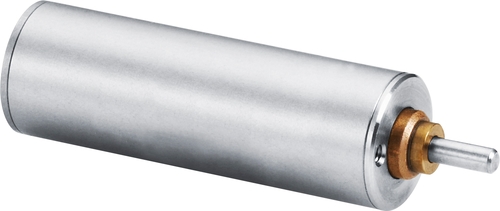

Faulhaber: Spur Gearheads (08/2 Series)

Spur Gearheads

A wide range of high quality spur gearheads are available to compliment FAULHABER DC-Micromotors.

The all metal or plastic input-stage gear train assures extremely quiet running.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Zero backlash versions are available

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 8

  • Standard Ratios (from...to): 4:1 ... 1,518:1

  • Torque cont. duty (mNm): 15

  • Intermittent duty Torque (mNm): 25

Model No.: 08/2 4:1, 08/2 9,4:1, 08/2 21,9:1, 08/2 51,2:1, 08/2 120:1, 08/2 279:1, 08/2 650:1, 08/2 1518:1
