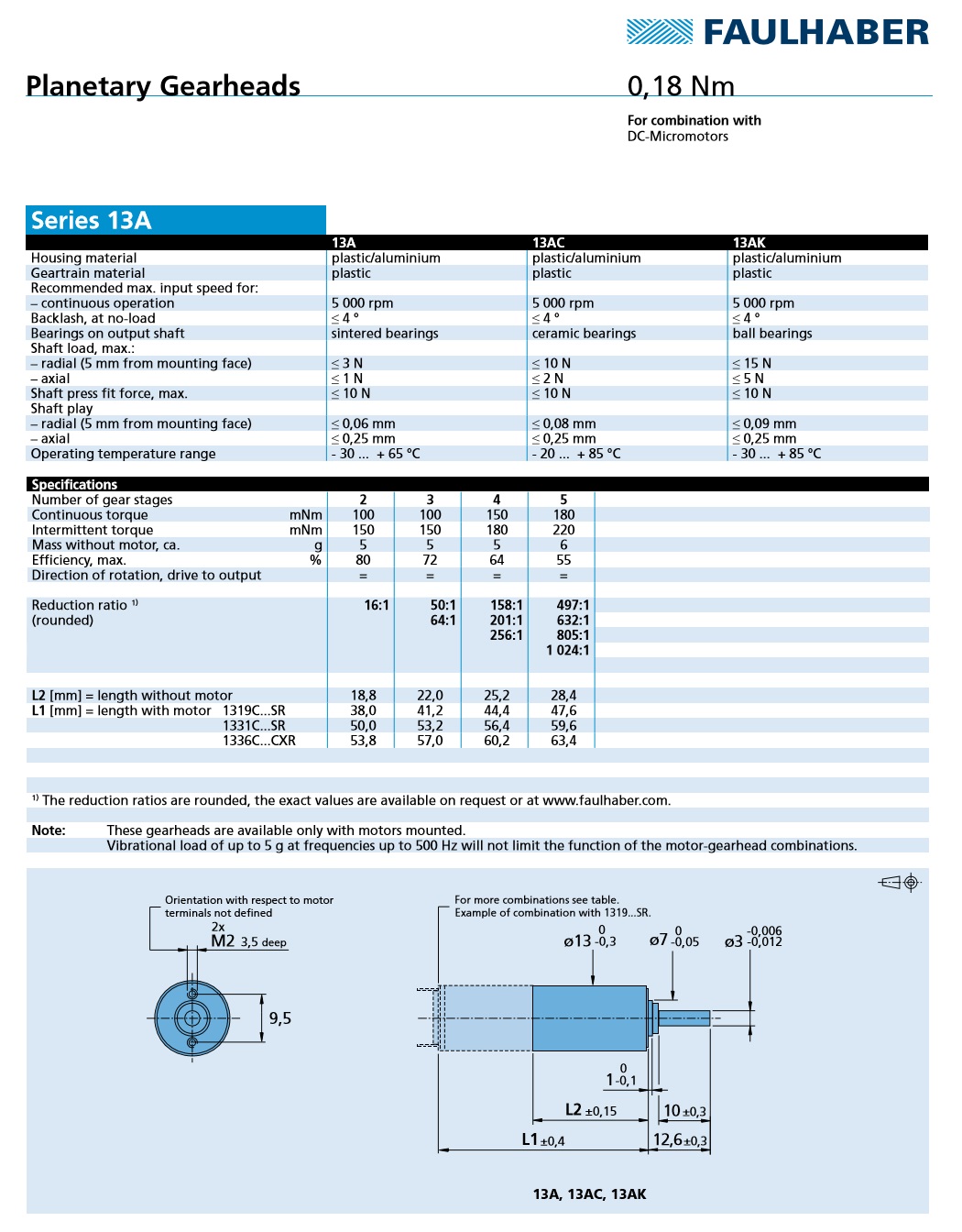

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (13A Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 13

  • Standard Ratios (from...to): 16:1 ... 1,024:1

  • Torque cont. duty (mNm): 180

  • Intermittent duty Torque (mNm): 220

Model No.: 13A 16:1, 13A 50:1, 13A 64:1, 13A 158:1, 13A 201:1, 13A 256:1, 13A 497:1, 13A 632:1, 13A 805:1, 13A 1024:1
