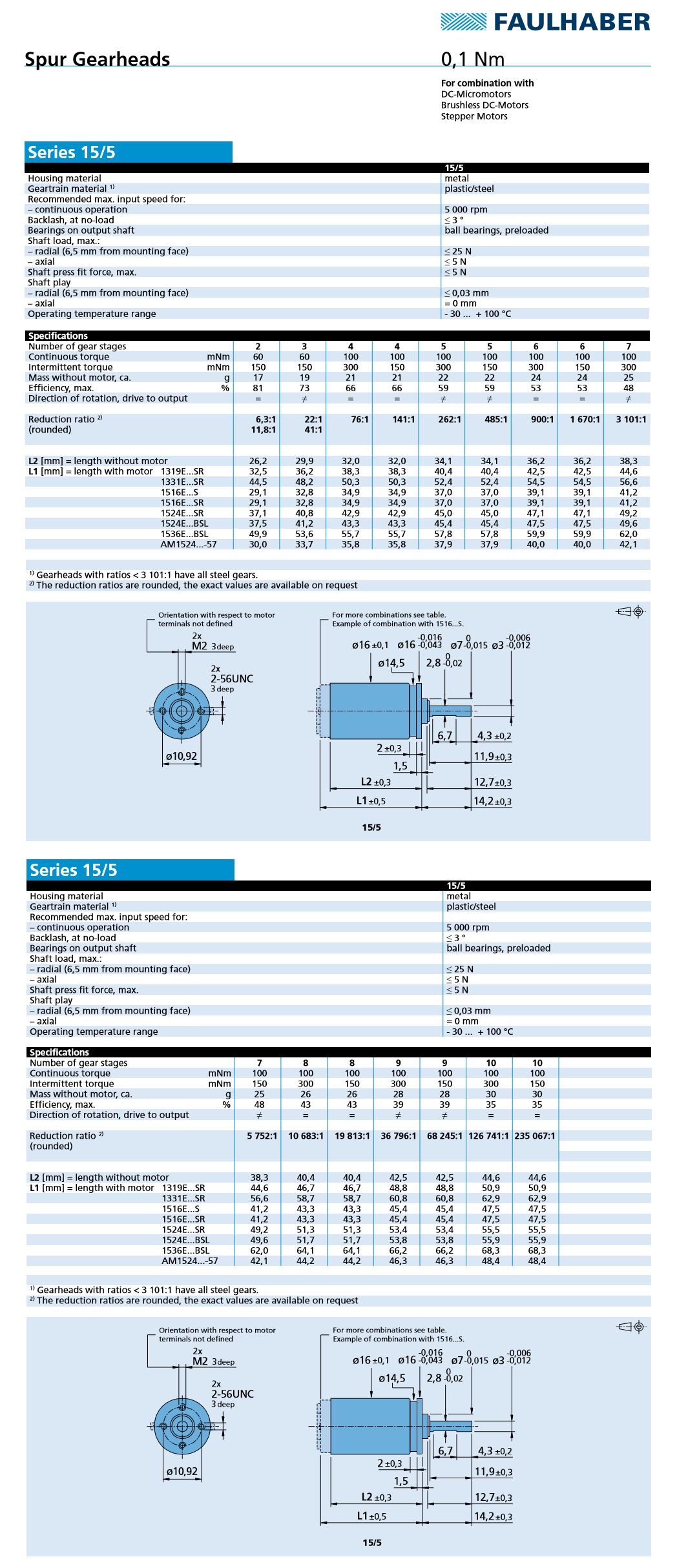

Specifications and Drawings

Faulhaber: Spur Gearheads (15/5 Series)

Spur Gearheads

A wide range of high quality spur gearheads are available to compliment FAULHABER DC-Micromotors.

The all metal or plastic input-stage gear train assures extremely quiet running.

Features and Benefits:

Available in a wide variety of reduction ratios including very high ratios
Zero backlash versions are available
Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

Diameter (mm): 16
Standard Ratios (from...to): 6.3:1 ... 235,067:1
Torque cont. duty (mNm): 100
Intermittent duty Torque (mNm): 300

Model No.: 15/5 6,3:1, 15/5 11,8:1, 15/5 22:1, 15/5 41:1, 15/5 76:1, 15/5 141:1, 15/5 262:1, 15/5 485:1, 15/5 900:1, 15/5 1670:1, 15/5 3101:1, 15/5 5752:1, 15/5 10683:1, 15/5 19813:1, 15/5 36796:1, 15/5 68245:1, 15/5 126741:1, 15/5 235067:1
