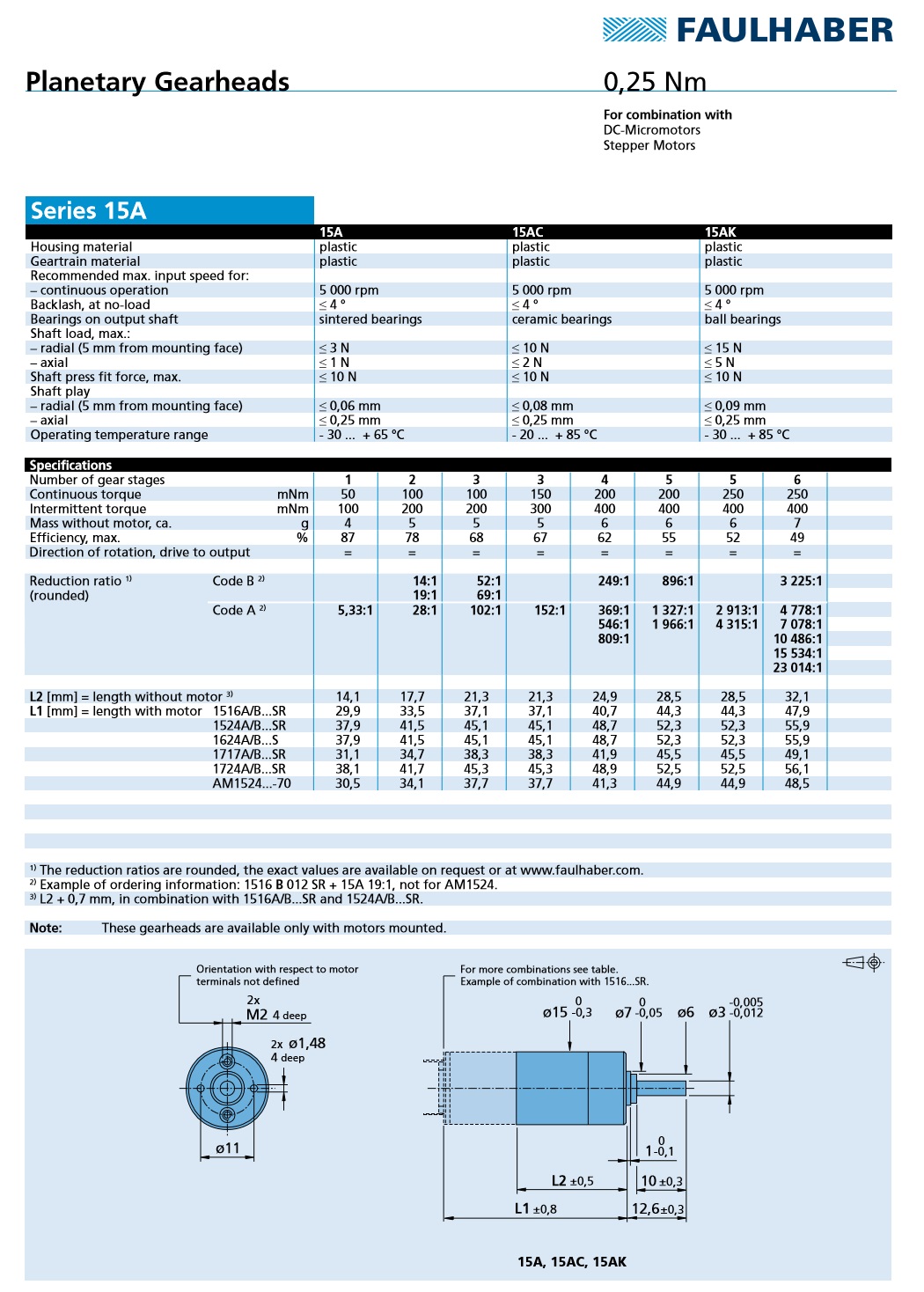

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (15A Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 15

  • Standard Ratios (from...to): 5:33:1 ... 23,014:1

  • Torque cont. duty (mNm): 250

  • Intermittent duty Torque (mNm): 400

Model No.: 15A 5,33:1, 15A 14:1, 15A 19:1, 15A 28:1, 15A 52:1, 15A 69:1, 15A 102:1, 15A 152:1, 15A 249:1, 15A 369:1, 15A 546:1, 15A 809:1, 15A 896:1, 15A 1327:1, 15A 1966:1, 15A 2913:1, 15A 3225:1, 15A 4315:1, 15A 4778:1, 15A 7078:1, 15A 10486:1, 15A 15534:1, 15A 23014:1
