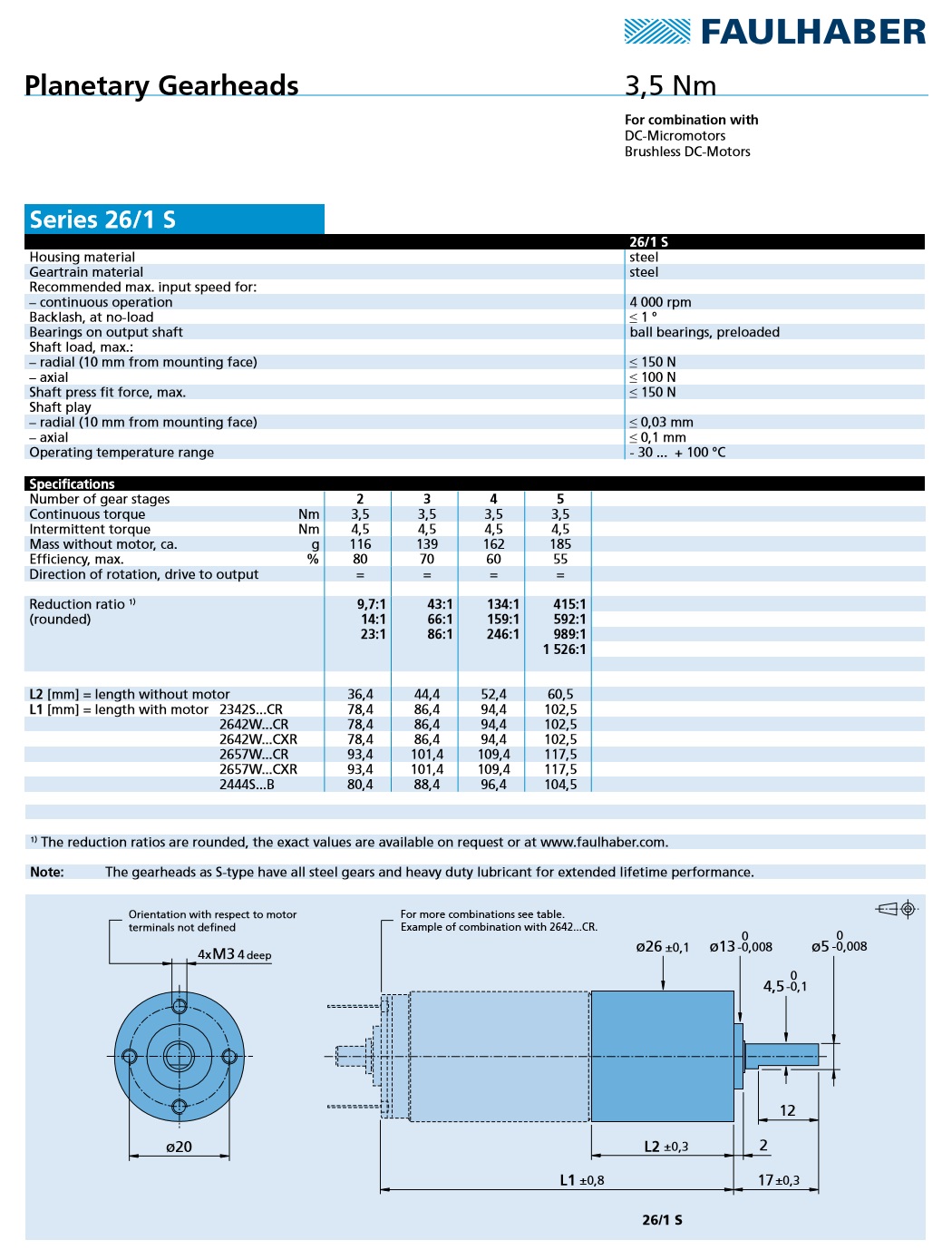

Description Specifications and Drawings


Faulhaber: Planetary Gearheads (26/1 S Series)

Planetary Gearheads

Their robust construction make the planetary gearheads, in combination with FAULHABER DC-Micromotors, ideal for high torque, high performance applications.

For applications requiring medium to high torque FAULHABER offers planetary gearheads constructed of high performance plastics.

Features and Benefits:

  • Available in all plastic or metal versions

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

  • Modified versions for extended temperature and special environmental conditions are available

Specifications:

  • Diameter (mm): 26

  • Standard Ratios (from...to): 3.71:1 ... 1,526:1

  • Torque cont. duty (mNm): 3,500

  • Intermittent duty Torque (mNm): 4,500

Model No.: 26/1S 9,7:1, 26/1S 14:1, 26/1S 23:1, 26/1S 43:1, 26/1S 66:1, 26/1S 86:1, 26/1S 134:1, 26/1S 159:1, 26/1S 246:1, 26/1S 415:1, 26/1S 592:1, 26/1S 989:1, 26/1S 1526:1
