Thomson: Ball Screw Driven-Ball Guided Units (2RB Series)
Thomson: Ball Screw Driven-Ball Guided Units (2RB Series)

Call for Pricing

Price Quote Form


Order #: 2RB


Model Number/Code*:

.

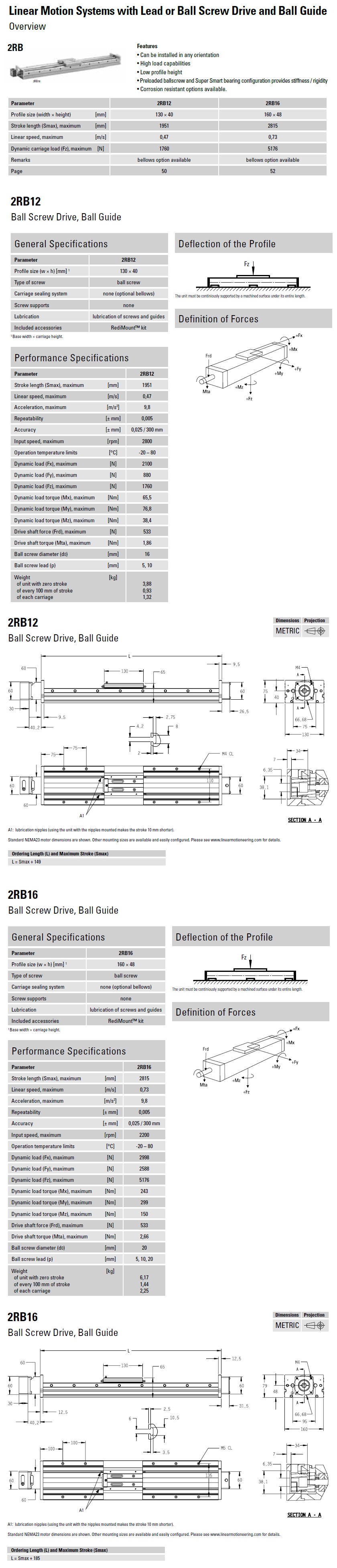

Description Specifications and Drawings


Thomson: Ball Screw Driven-Ball Guided Units

Thomson's ball screw driven, ball guided positioning slides are designed for robust applications that demand high thrust and payloads with a need for high precision accuracy and stiffness.

2RB (SuperSlide®) Linear Units

Thomson's 2RB (SuperSlide) positioning slides are continuously and intermittently supported systems with integral screw assemblies in both metric and English standard units. Based on Thomson's Round Rail technology, these units work well in applications where moderate stiffness and rigidity are required.

2RB Feature Highlights:

  • Pre-aligned and continuously supported LinearRace ways

  • Super Smart Ball Bushing bearing

  • Integral ball screw assembly

  • T-slot Carriage with four mounting holes

  • Speeds up to 1000 mm/sec

  • Thrust loads up to 3000 N

  • T-slots in base mounting system

  • Long travel life capability

  • Double acting wipers

2RB Option Highlights:

  • Lubrication system

  • Bellows way covers

  • Limit switch packages

  • Radial mount ball screw shaft extenders

Model No.: 2RB12, 2RB16
