FAULHABER: Motion Control Systems (3242...BX4 Cx Series)
FAULHABER: Motion Control Systems (3242...BX4 Cx Series)

Alternate View
Call for Pricing

Price Quote Form


Order #: 3242G024BX4-CX
.

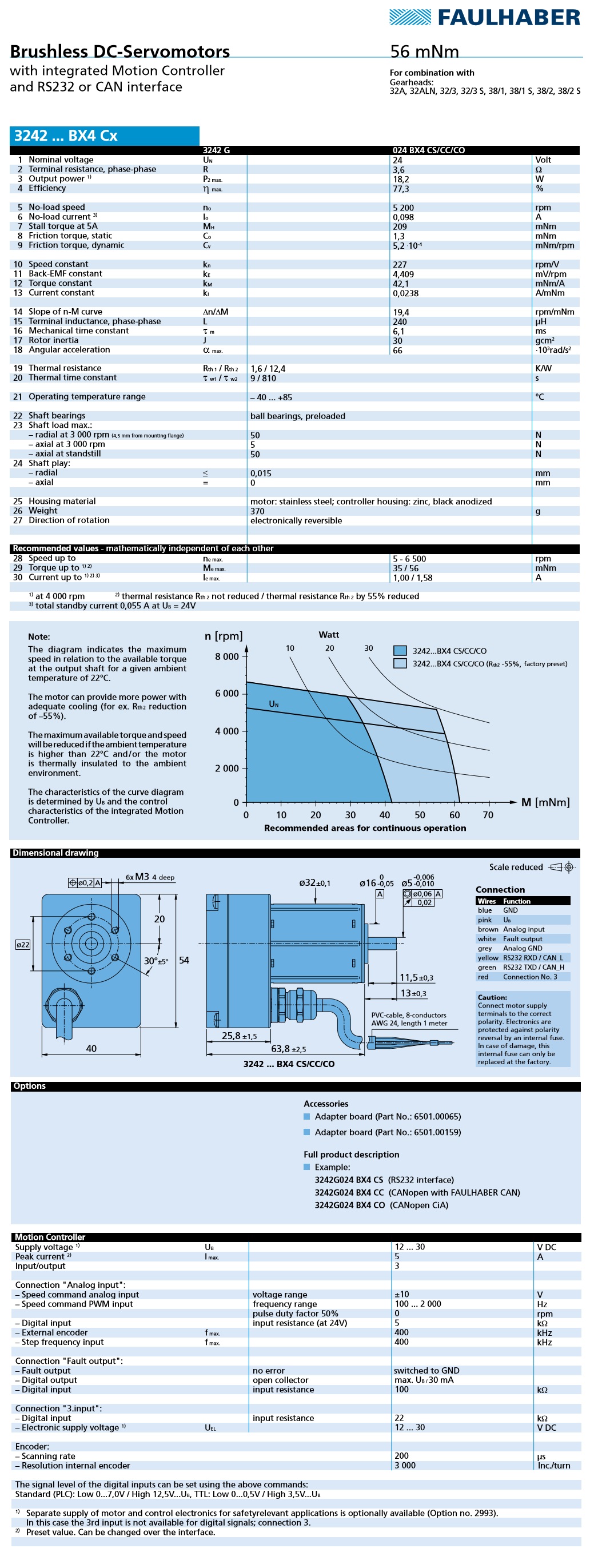

Description Specifications and Drawings


FAULHABER: Motion Control Systems (3242...BX4 Cx Series)

with integrated Motion Controller and RS232 or CAN interface

FAULHABER Integrated Motion Controllers combine high performance single axis motion controllers with the benefits of FAULHABER Brushless DC Servomotors to provide the industry’s largest portfolio of integrated motor controllers.

Whether configured as stand-alone single axis positioning drives or integrated into a multi-axis CANopen network, FAULHABER provides the most compact and simplest solution available.

Features and Benefits:

  • Compact size

  • Wide speed range

  • High torque

  • Simple cabling

  • Low EMI between motor and controller

  • RS232 and CANopen interfaces

  • Easy configuration

  • Many standard operating modes

Specifications:

  • Diameter (mm): 32

  • Length (mm): 63.8

  • Speed up to (rpm): 5...6,500

  • Stall torque up to (mNm): 209

  • Drive Type: Int. Motion Controller with CAN/R232 interface

Model No.: 3242G024BX4 Cx
