Newly employed detection method (electromagnetic induction method) enables use in adverse environments with water and cutting oil.

Specially designed output cables are developed to maintain the water resistant structure.

No overspeed error since it employs absolute scale which reads the absolute value.

Once an absolute zero (origin) point is set, the Digimatic Scale Unit shows its absolute distance from the point whenever turned on rather than 0.00”

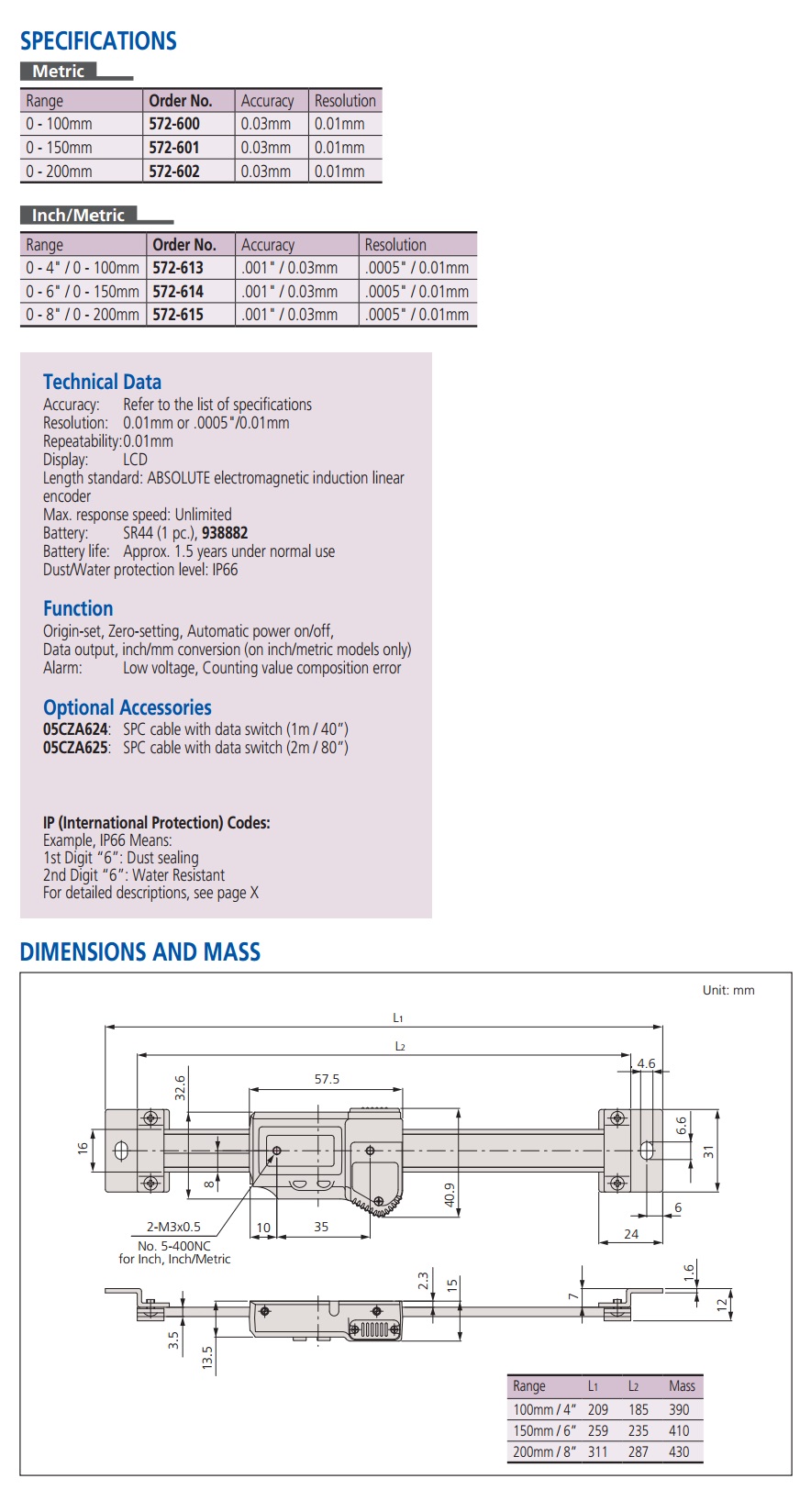

Accuracy: Refer to the list of specifications.

Resolution: 0.01mm or .0005"/0.01mm

Repeatability: 0.01mm

Display: LCD

Length standard: ABSOLUTE electromagnetic induction linear encoder

Max. response speed: Unlimited

Battery: SR44 (1 pc.), 938882

Battery life: Approx. 1.5 years under normal use

Dust/Water protection level: IP67

Origin-set, Zero-setting, Automatic power on/off, Data output, inch/mm conversion (inch/mm models)

Alarm: Low voltage, Counting value composition error

05CZA624: SPC cable with data switch (1m / 40”)

05CZA625: SPC cable with data switch (2m / 80”)

1st Digit “6”:Dust sealing

2nd Digit “6”:Water resistant
