Crouzet: Sub-Subminiature Microswitches (83228/83229 Series)
Crouzet: Sub-Subminiature Microswitches (83228/83229 Series)

Call for Pricing

Price Quote Form


Order #: 83228-83229


Model Number/Code*:

.

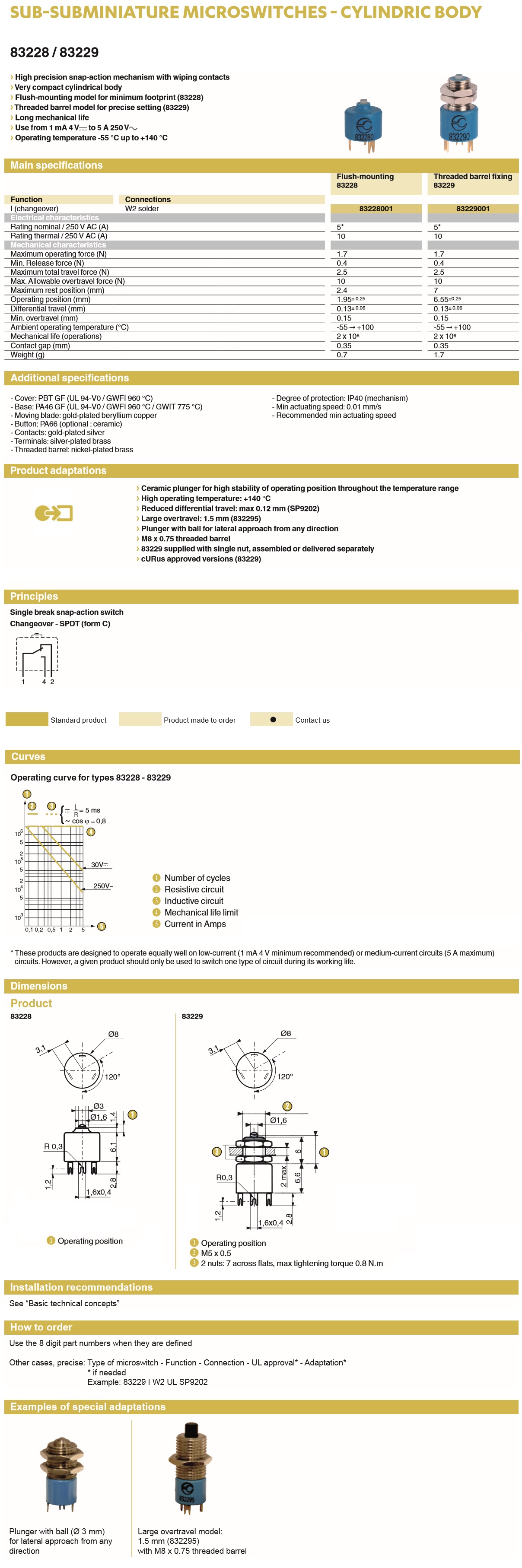

Description Specifications and Drawings


Crouzet: Sub-Subminiature Microswitches (83228/83229 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Sub-Subminiature Microswitches – Cylindric Adjustable

  • High precision snap-action mechanism with wiping contacts

  • Very compact cylindrical body

  • Flush-mounting model for minimum footprint (83228)

  • Threaded barrel model for precise setting (83229)

  • Long mechanical life

  • Cover: PBT GF (UL 94-V0 / GWFI 960 °C)

  • Base: PA46 GF (UL 94-V0 / GWFI 960 °C / GWIT 775 °C)

  • Moving blade: gold-plated beryllium copper

  • Button: PA66 (optional : ceramic)

  • Contacts: gold-plated silver

  • Terminals: silver-plated brass

  • Threaded barrel: nickel-plated brass

  • Degree of protection: IP40 (mechanism)

  • Min actuating speed: 0.01 mm/s

  • Recommended min actuating speed

Specifications

  • Approx body size (mm): Ø8×8

  • Rating (max): 5A / 250Vac

  • Degree of protection: IP40

  • Operating temperature: -55°C / +140°C

  • Operating force (max): 1.7 N

  • Differential travel (max): 0.12 mm; 0.19 mm

  • Overtravel (min): 0.15 mm

  • Mechanical life (cycles): 2 M
