Crouzet: Standard Limit Switches (8388 Series)
Crouzet: Standard Limit Switches (8388 Series)

Call for Pricing

Price Quote Form


Order #: 8388
.

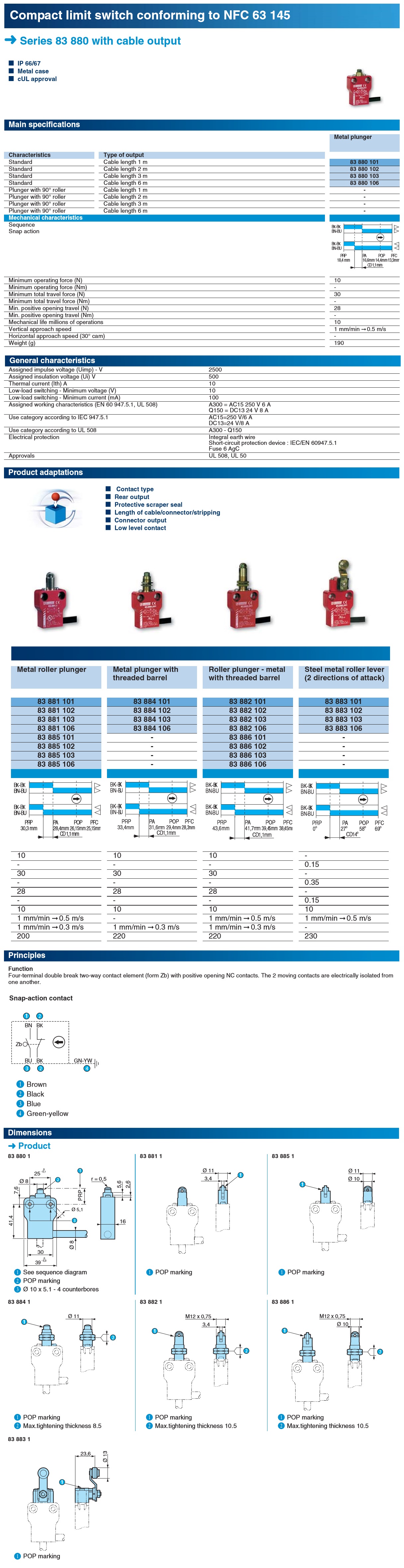

Description Specifications and Drawings


Crouzet: Standard Limit Switches (8388 Series)

With its choice of casings, wide range of actuators, variety of connections and high degree of resistance to impact and splashes, Crouzet Switches offers limit switches available in the following ranges: Metal body, Plastic body, Special products and Products for severe environments. Their main characteristics are: IP6x seal, a wide range of actuators (plungers and rollers), rotary heads with momentary action, positive break contacts, compact size, etc. They also offer the option of having special levers, prewiring, connection via ISO cable glands, etc.

Standard Limit Switches – Prewired ‘US’ Size

  • IP 66/67

  • Metal case

  • cUL approval

Specifications

  • Approx body size (mm): 49x39x16

  • Housing material: Zamak

  • Actuating movement: Linear Rotary Multi direction

  • Connections: Pre-wired Connector

  • Degree of protection: IP66/IP67/IP69

  • Operating temperature: -40°C / +70°C

  • Rating (max): 10A / 250Vac

  • Mechanical life (cycles): 10 M
