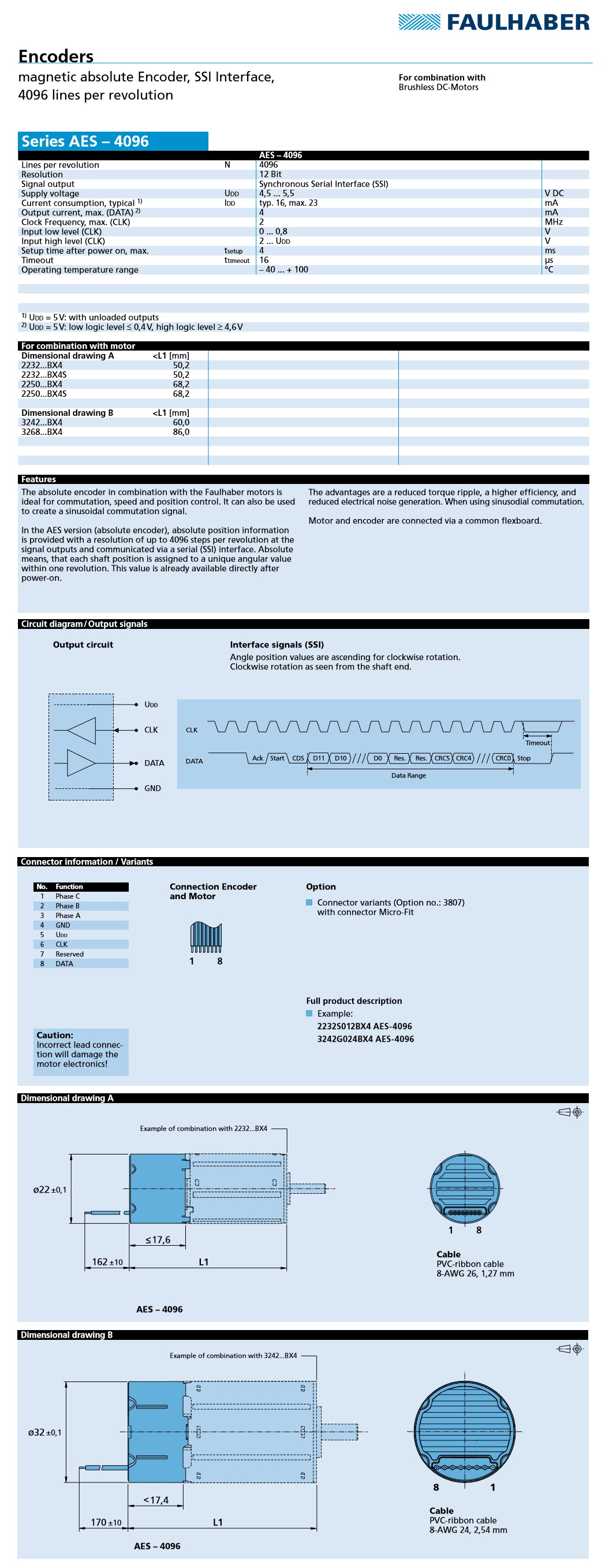

Specifications and Drawings

FAULHABER: Encoders (AES-4096 Series)

Absolute encoder

The absolute encoder in combination with the FAULHABER DC-Motors is ideal for commutation, speed and position control.

Absolute means, that each shaft position is assigned to a unique angular value within one revolution.

It can also be used to create a sinusoidal commutation signal.

Specifications:

Dimension (mm): Ø8 x 4.9
Technology: Magnetic
Pulse per Revolution: 4,096
Signal Output: Synchronous Serial Interface (SSI)
