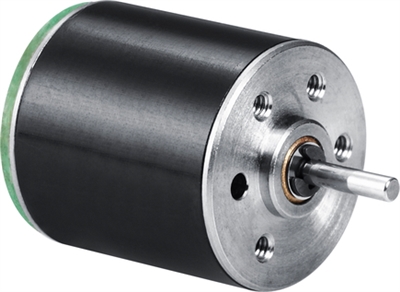

FAULHABER: Stepper Motors (AM1524 Series)

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

Specifications

  • Diameter (mm): 15

  • Length (mm): 16.4

  • Holding Torque - MH2 Phase (mNm): 10

  • Torque – Me max. (mNm): 6

  • Step Angle (Full Step): 15


Model No.: AM1524-A-0,25-12,5-55, AM1524-A-0,45-3,6-55, AM1524-V-12-150-55, AM1524-V-6-35-55
