FAULHABER: Stepper Motors (AM2224 Series)

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

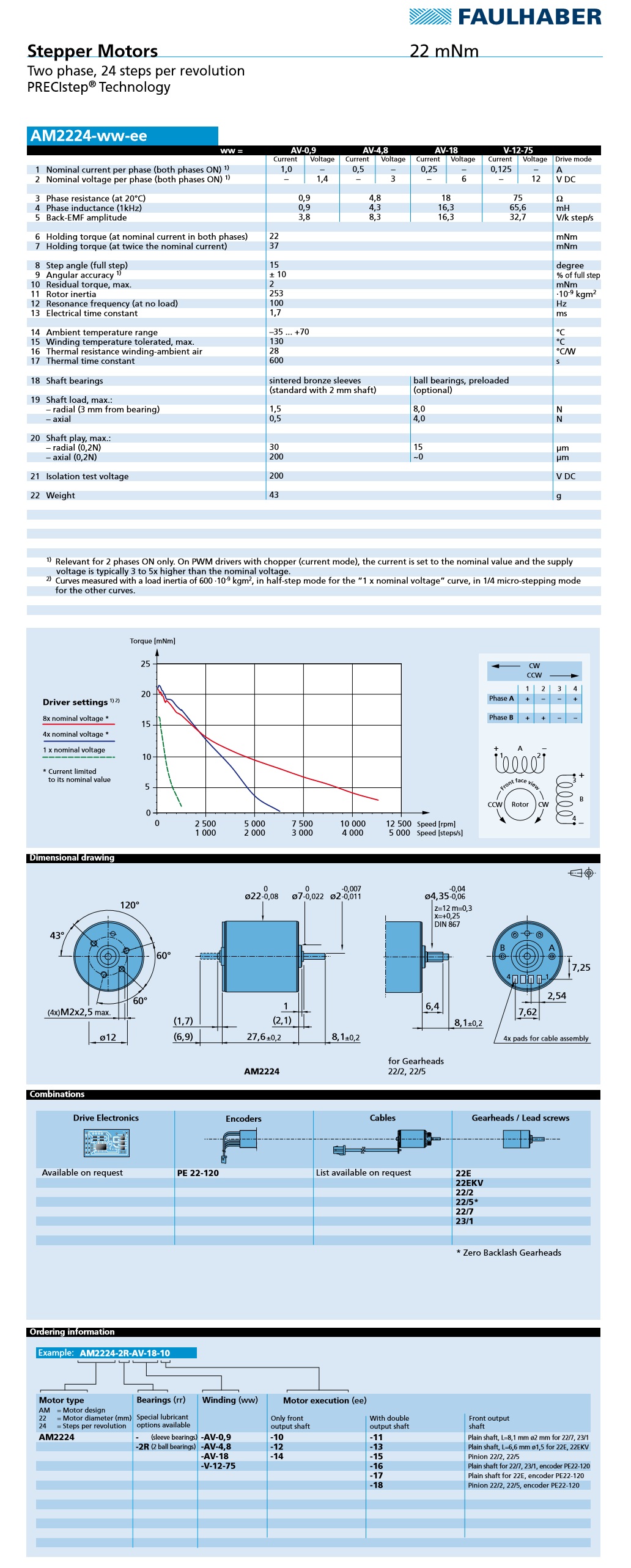

Specifications

  • Diameter (mm): 22

  • Length (mm): 27.7

  • Holding Torque - MH2 Phase (mNm): 37

  • Torque – Me max. (mNm): 22

  • Step Angle (Full Step): 15

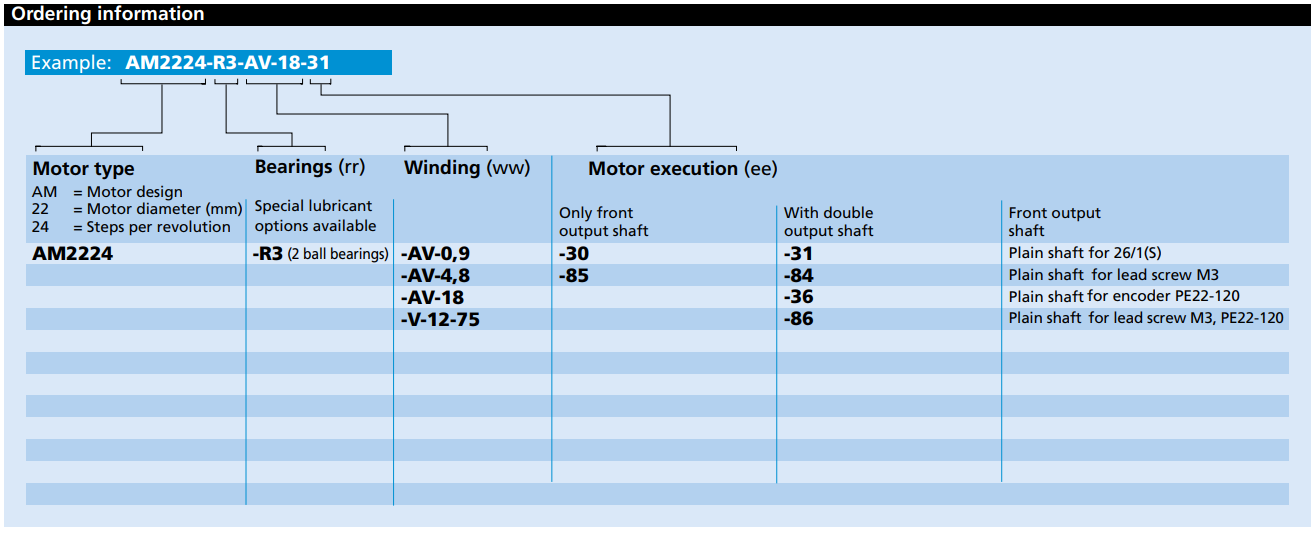

Model No.: AM2224-AV-0,9-10, AM2224-AV-18-10, AM2224-AV-4,8-10, AM2224-V-12-75-10
