CUI: AMT31-V Kit
28 mm, 48 ~ 4096 PPR, Commutation, Capacitive Modular Encoder Kit

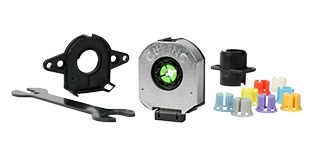

CUI's AMT31-V Kit Series is a rugged, high accuracy encoder that generates standard U/V/W signals for commutating brushless DC motors. Designed to maximize flexibility, the kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and base plates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with the ability to set a range of parameters via GUI or SPI interface, the AMT31-V Kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Features:

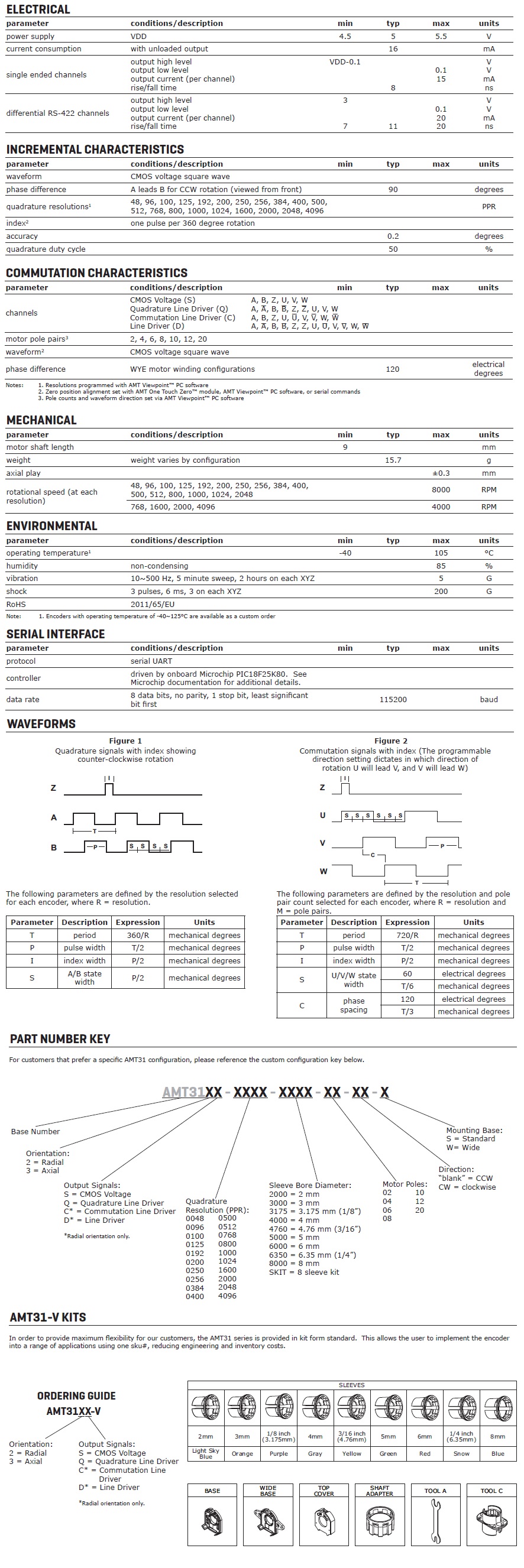

Specifications:
