Mitutoyo: AT203 Linear Scales (539 Series)
Mitutoyo: AT203 Linear Scales (539 Series)

Price : $1,843.00

Price with Selected Options: $1,843.00


Availability: Subject to Availability
Order #: AT203


Model Number/Code*:

Qty:

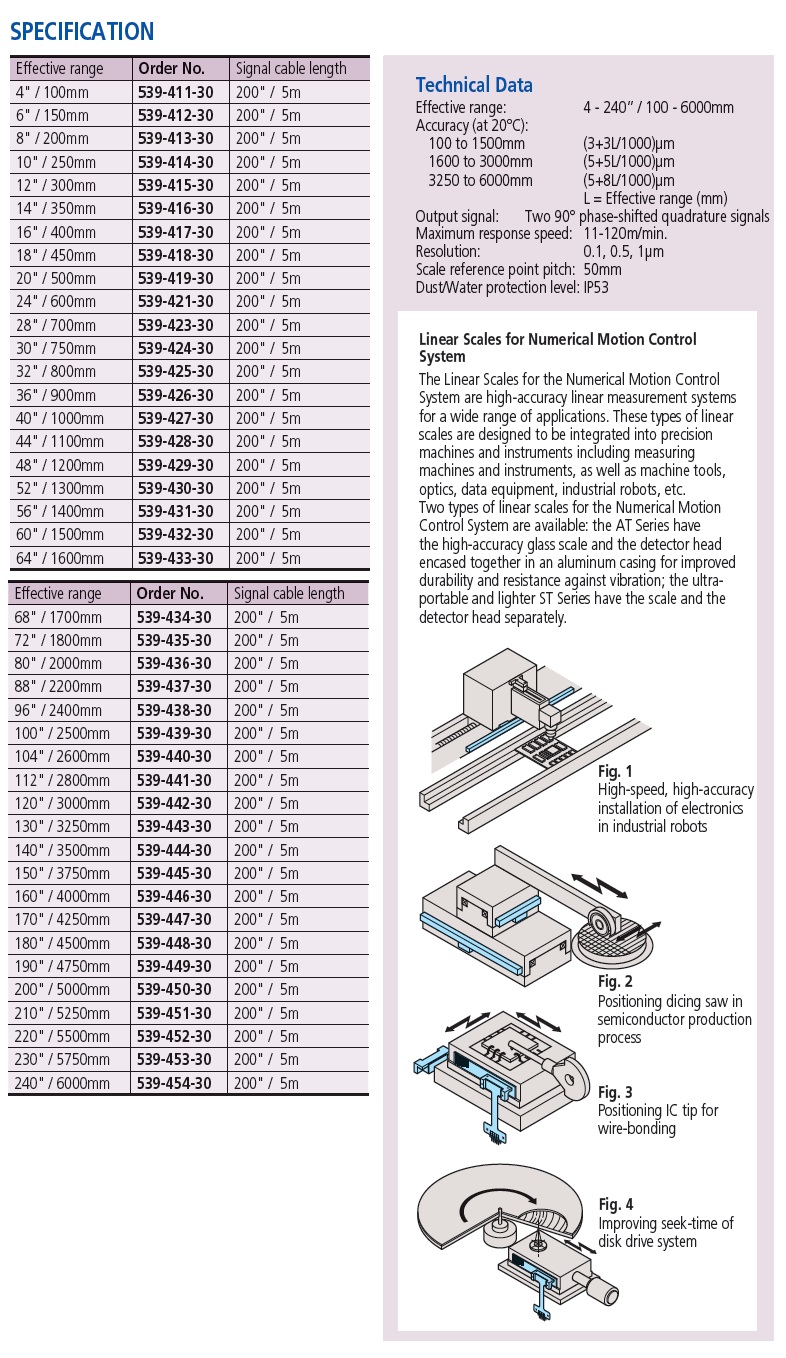

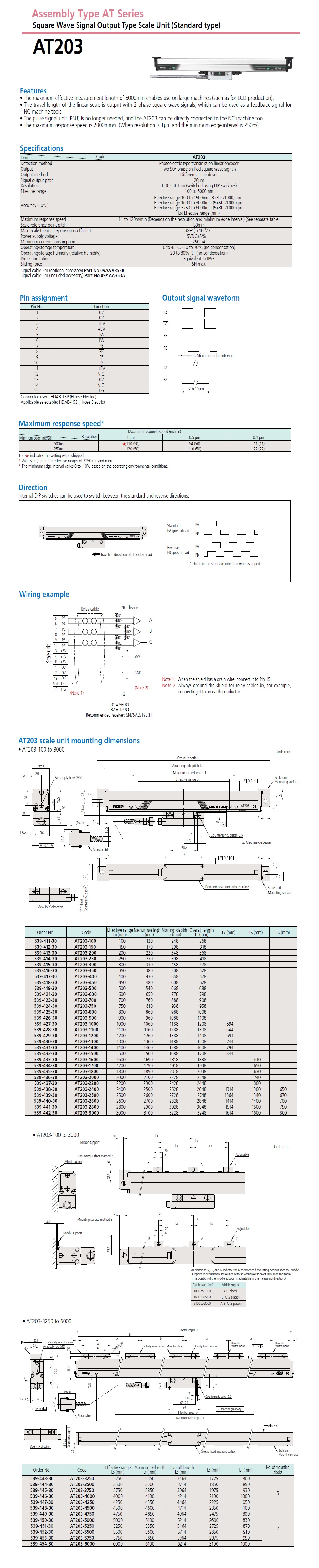

Description Specifications and Drawings


Mitutoyo: AT203 Linear Scales (539 Series) Standard Spar Type

Features

  • Sealed type incremental linear scales suitable for feedback system of NC machine tools.

  • Direct connection with NC machine tools are possible.

Technical Data

  • Effective range: 4 - 120” (100 - 3000mm)

  • Accuracy (at 20ºC): 100 to 1500mm (3+3L/1000)µm, 1600 to 3000mm (5+5L/1000)µm

  • L = Effective range (mm)

  • Output signal: Two 90° phase-shifted quadrature signals

  • Maximum response speed: 72m/min.

  • Resolution: 0.5, 1µm

  • Scale reference point pitch: 50mm

  • Dust/Water protection level: IP53

Model No.: 539-411-30, 539-412-30, 539-413-30, 539-414-30, 539-415-30, 539-416-30, 539-417-30, 539-418-30, 539-419-30, 539-421-30, 539-423-30, 539-424-30, 539-425-30, 539-426-30, 539-427-30, 539-428-30, 539-429-30, 539-430-30, 539-431-30, 539-432-30, 539-433-30, 539-434-30, 539-435-30, 539-436-30, 539-437-30, 539-438-30, 539-439-30, 539-440-30, 539-441-30, 539-442-30, 539-444-30, 539-445-30, 539-446-30, 539-447-30, 539-448-30, 539-449-30, 539-450-30, 539-451-30, 539-452-30, 539-453-30, 539-454-30
