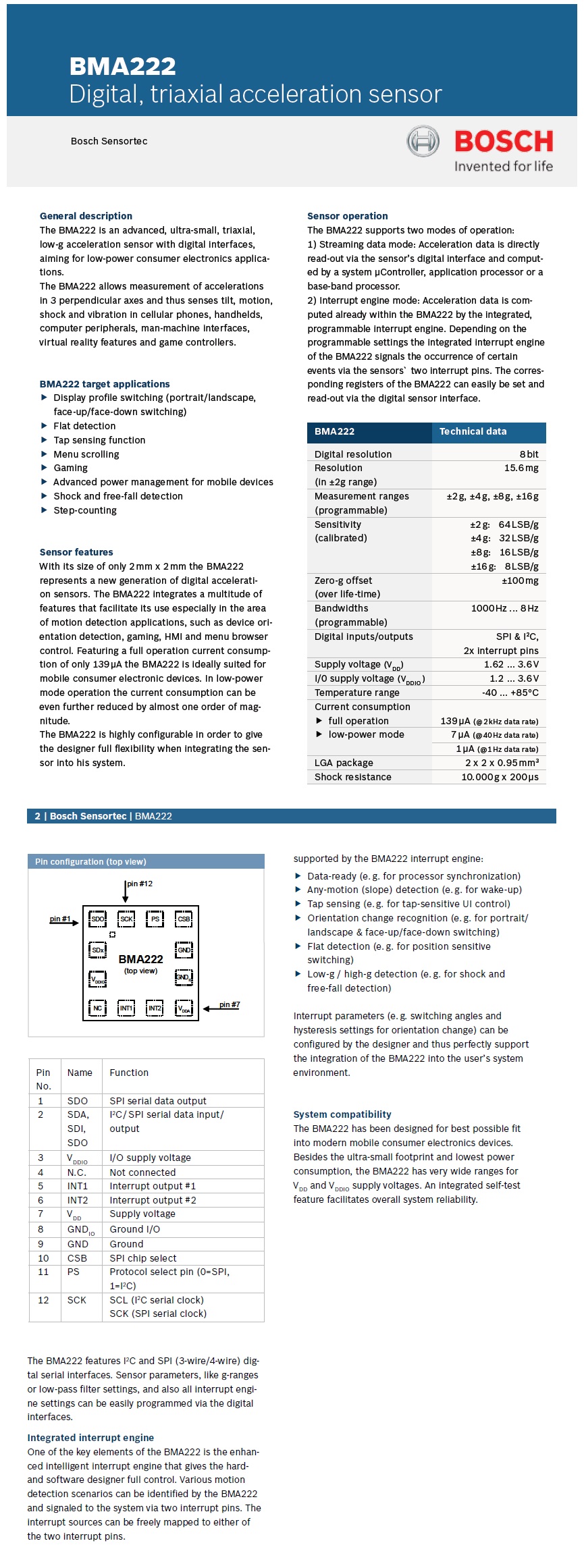

Acal BFi: Digital, 3-axis Accelerometer

The BMA222 is an advanced, ultra-small, tri-axial, low-g acceleration sensor with digital interfaces, aiming for low-power consumer electronics applications. The BMA222 allows measurement of accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration in cellular phones, handhelds, computer peripherals, man-machine interfaces, virtual reality features and game controllers.

Features

Ultra-Small package LGA package (12 pins), footprint 2mm x 2mm, height 0.95mm
Digital interface SPI (4-wire, 3-wire), I²C, 2 interrupt pins VDDIO voltage range: 1.2V to 3.6V
Programmable functionality Acceleration ranges ±2g/±4g/±8g/±16g Low-pass filter bandwidths 1kHz - <8Hz
On-chip interrupt controller Motion-triggered interrupt-signal generation for:
- new data
- any-motion (slope) detection
- tap sensing (single tap / double tap)
- orientation recognition
- flat detection
- low-g/high-g detection
Stand-alone capability (no microcontroller needed)
Ultra-low power ASIC Low current consumption, short wake-up time, Advanced features for system power management
RoHS compliant, halogen-free
