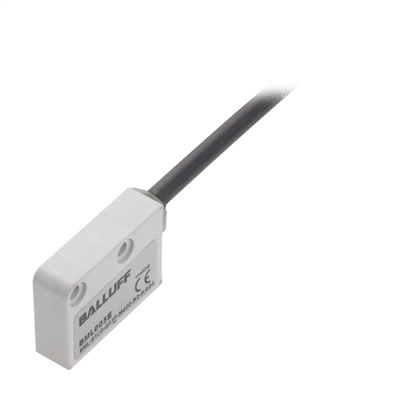

Balluff: Magnetic Linear Encoder (BML-S2B/BML-S2E Series)

Incremental linear magnetically coded position measurement systems. Precise and flexible - wide range of applications.

The BML incremental position measurement systems from Balluff can be used flexibly and are available as a cost-effective option for almost any measurement length. Thanks to standardized digital and analog interfaces, they can be integrated into almost any control system.

In power generation, the food and beverage industry and many other sectors, BML incremental position measuring systems ensure precise positioning.

Applications

  • Linear motors and drives

  • Laser cutting machines

  • Plasma cutting machines

  • Water jet cutting machines

  • Wood processing

  • Pressure systems

  • Ultrasonic sensors

  • Transfer lines

  • Delivery systems

  • Escalators

  • Lifts

  • Conveyor belts and much more

Benefits

  • Measure values quickly and precisely, with high repetition accuracy: For the best machine capacity

  • Long-term-stable magnetic tape with Permagnet® technology: For high installation availability

  • Fully enclosed in metal or in plastic housing: Optimal protection of the electronics for a long service life and lower overall costs

BML-S2B/BML-S2E

  • High resolution up to 5 µm, system accuracy up to 50 µm

  • Measuring length up to 48 m

  • Output signal: Rectangular digital signal

  • Optionally available with reference signal and end switch

Model No.: BML-S2B0-Q51K-M400-P0-KA01,5-S86A (BML02R3), BML-S2B0-Q53F-M400-D0-KF00,15-ZA0U (BML04CM), BML-S2B0-Q53F-M410-D0-KA05 (BML0211), BML-S2B0-Q53G-M410-H0-KA10 (BML05AH), BML-S2B0-Q53G-M410-P0-KA10 (BML002W), BML-S2B0-Q53G-M413-P0-KA10 (BML002Y), BML-S2B0-Q61F-M420-E0-KA01-S86A (BML04KM), BML-S2B0-Q61F-M420-K0-KA01-S86A (BML0432), BML-S2E0-Q53F-M423-P0-SA12-KF05,3-ZA0P (BML03LA), BML-S2E0-Q53G-M400-L0-SA8-KA02 (BML034F), BML-S2E0-Q53G-M410-P0-SA3-KA04 (BML01HA), BML-S2E0-Q53G-M420-L0-SA3-KA04 (BML04KL)
