Copley Controls: Accelnet Plus Panel CANopen (BPL...R Series)

DIGITAL SERVO DRIVE FOR BRUSH & BRUSHLESS MOTORS

Add -R for resolver feedback option

Description

The BPL is a high-performance, DC powered drive for position, velocity, and torque control of brushless and brush motors via CANopen. Drive commissioning is fast and simple using CME 2™ software operating under Windows® and communicating with the BPL via RS-232.

The BPL operates as a CANopen DS-402 node. Supported modes include: Profile Position-Velocity-Torque, Interpolated Position Mode (PVT), and Homing.

Feedback from both incremental and absolute encoders is supported. A multi-mode encoder port functions as an input or output depending on the drive’s basic setup.

There are seven non-isolated inputs. All inputs have programmable active levels. Three opto-isolated outputs [OUT1~3] have individual +/- connections. An isolated MOSFET brake output [OUT4] is programmable to drive motor brakes or other functions and has a flyback diode to the Brake 24V input for driving inductive loads. Drive power is transformer-isolated DC from regulated or unregulated power supplies. An AuxHV input is provided for “keep-alive” operation permitting the drive power stage to be completely powered down without losing position information, or communications with the control system.

Control Modes

Command Interface

Communications

Feedback

Incremental Encoders

Absolute Encoders

Resolver (-R option)

Other

I/O Digital

I/O Analog

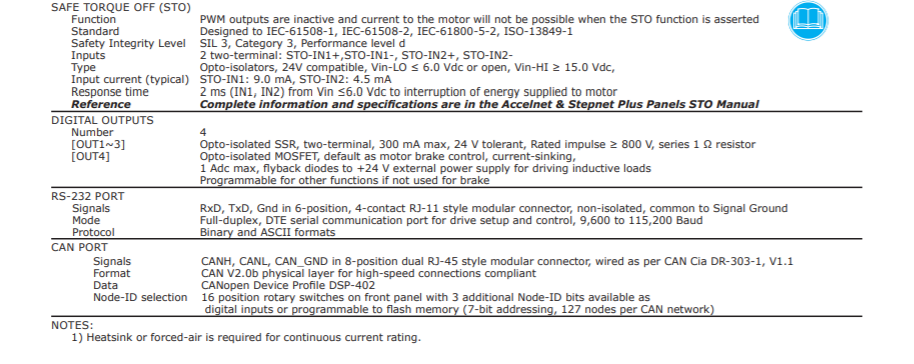

Safe Torque Off (STO)

Dimensions: in [mm]

Model No.: BPL-090-06-R, BPL-090-30-R
