FAULHABER: Ball Screws (BS22-1.5 Series)
FAULHABER: Ball Screws (BS22-1.5 Series)

Alternate View


Call for Pricing

Price Quote Form


Order #: BS22-1.5
.

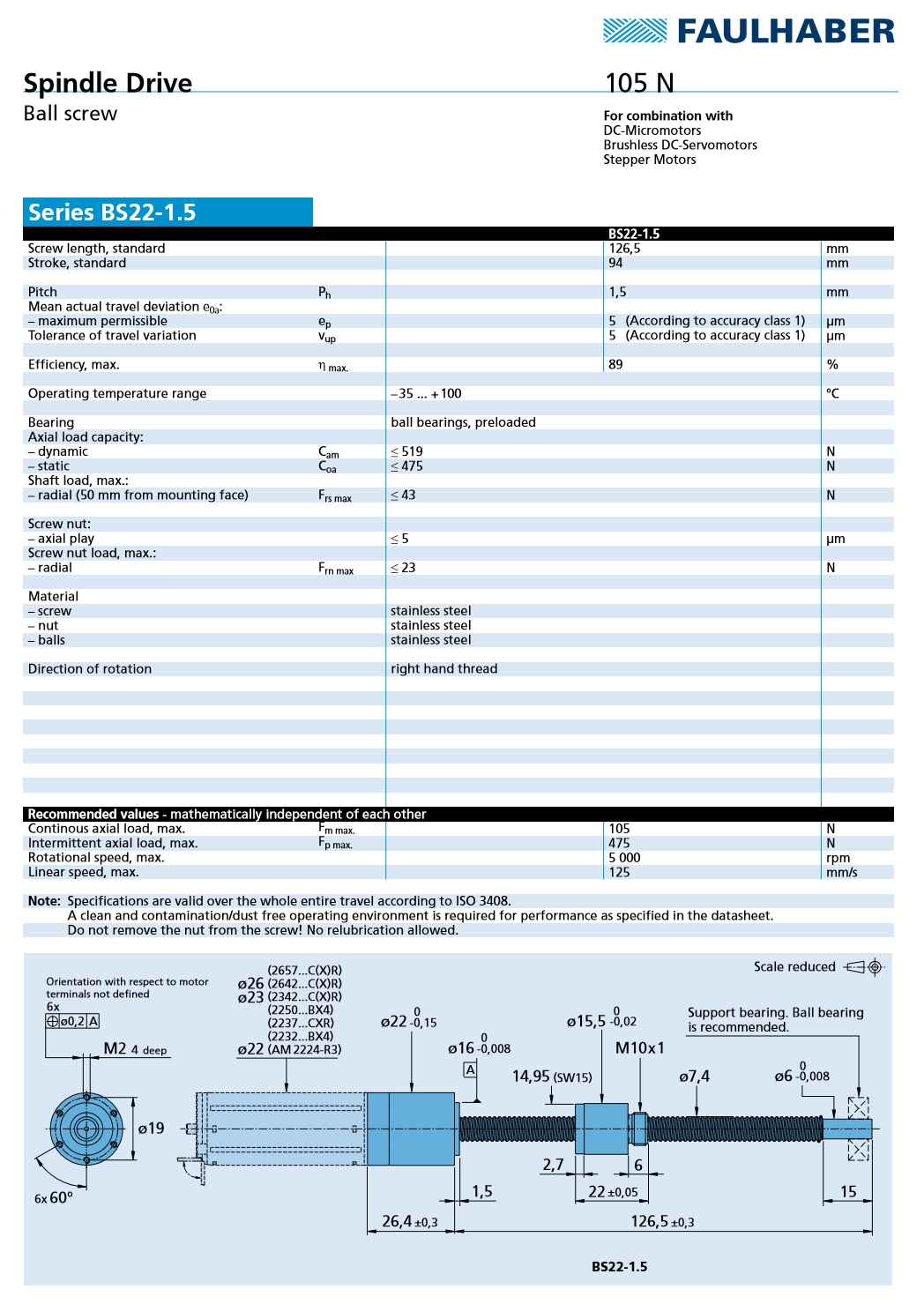

Description Specifications and Drawings


FAULHABER: Ball Screws - Spindle Drives (BS22-1.5 Series)

Thanks to their high-precision mechanical design, FAULHABER ball screws are ideally suited for positioning tasks requiring a high degree of accuracy.

Combinations with DC-Micromotors with high-resolution encoders, integrated Motion Controllers or Stepper Motors represent a superior system solution for the most demanding applications in optical systems, special machine construction, automation or medical technology.

Specifications:

  • Nominal Diameter (mm): 7.4

  • Material: Stainless Steel

  • Continuous Axial Load, max (N): 105

  • Intermittent Axial Load, max (N): 475

  • Pitch (mm): 1.5
