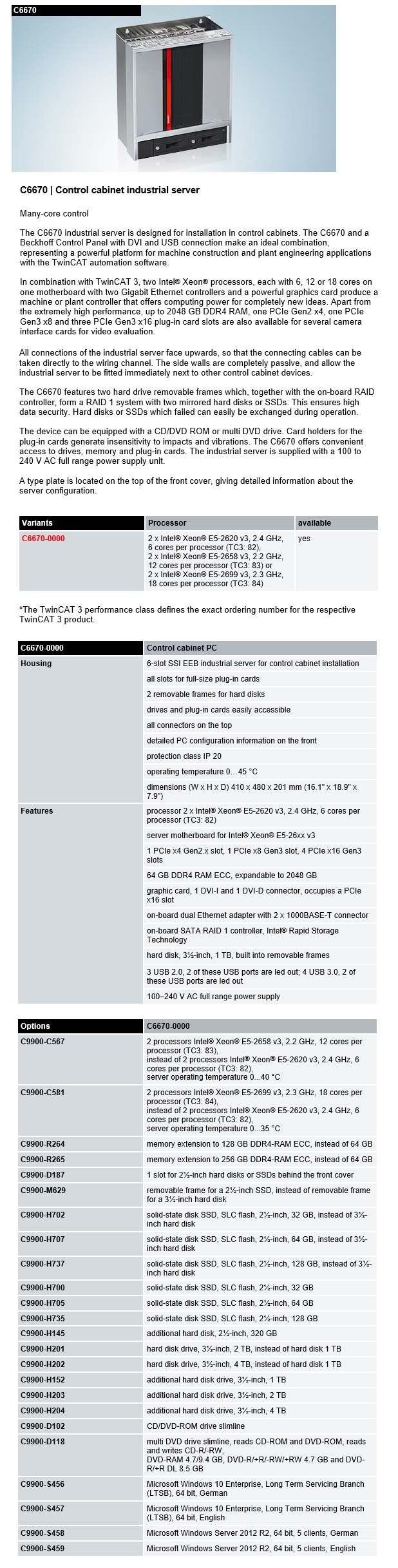

Beckhoff: Control Cabinet Industrial Server (C6670 Series)

The C6670 industrial server is designed for installation in control cabinets. The C6670 and a Beckhoff Control Panel with DVI and USB connection make an ideal combination, representing a powerful platform for machine construction and plant engineering applications with the TwinCAT automation software.

In combination with TwinCAT 3, two Intel® Xeon® processors, each with 6, 12 or 18 cores on one motherboard with two Gigabit Ethernet controllers and a powerful graphics card produce a machine or plant controller that offers computing power for completely new ideas. Apart from the extremely high performance, up to 2048 GB DDR4 RAM, one PCIe Gen2 x4, one PCIe Gen3 x8 and three PCIe Gen3 x16 plug-in card slots are also available for several camera interface cards for video evaluation.

All connections of the industrial server face upwards, so that the connecting cables can be taken directly to the wiring channel. The side walls are completely passive, and allow the industrial server to be fitted immediately next to other control cabinet devices.

The C6670 features two hard drive removable frames which, together with the on-board RAID controller, form a RAID 1 system with two mirrored hard disks or SSDs. This ensures high data security. Hard disks or SSDs which failed can easily be exchanged during operation.

The device can be equipped with a CD/DVD ROM or multi DVD drive. Card holders for the plug-in cards generate insensitivity to impacts and vibrations. The C6670 offers convenient access to drives, memory and plug-in cards. The industrial server is supplied with a 100 to 240 V AC full range power supply unit.

A type plate is located on the top of the front cover, giving detailed information about the server configuration.
