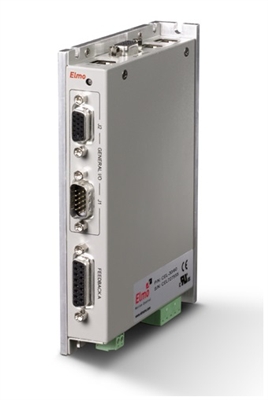

Elmo Motion Control: SimplIQ Servo Drives (Cello Series)
Elmo Motion Control: SimplIQ Servo Drives (Cello Series)



Price with Selected Options: $0.00


Order #: CEL


Model Number/Code*:

Qty:
Description Specifications and Drawings


Elmo Motion Control SimplIQ Line

Advanced servo drive solutions

Elmo's SimplIQ digital servo drives combine high power density, intelligent functionality and space-friendly design. The drives integrate Elmo's advanced, SimplIQ motion control core technology, which enables superior control performance, offers advanced programming capabilities and supports standard communication protocols. All the drives in the series include a fully digital motion controller that features current, velocity and position loops and a wide range of commutation types and position feedbacks. The result: higher dynamics and increased precision for a wide variety of implementations.

DC Input : 7.5 to 800 VDC - DC brush, Sinusoidal, trapezoidal motors

Differences Between Gold and SimplIQ Servo Drives

  • Gold servo drives have a higher and wider servo performance Bandwidth, Current, Velocity, Position, Dual Loop, Gantry, etc. The Gold Line has a significantly wider current (Torque) and dynamic range.

  • SimplIQ servo drives support CANopen Communication.

  • Gold servo drives support EtherCAT & CANopen, and real-time of the latter is significantly improved.

  • Gold servo drives support any feedback and have higher capabilities, performance and flexibilities in feedback manipulation for dual loops, Gantry, MIMO, etc.


Cello Series

Smart and Slim Digital Servo Drive for Brush and Brushless Motors. Operates in current, velocity, position and advanced position modes.

The Cello is a series of intelligent, slender digital servo drives for DC brush, brushless motors and linear motors. The slim servo drive supports up to 30 amps continuous current. Its high density allows the drive to deliver a peak of 6800 W of power and 3400 W of continuous power. Based on Elmo's SimplIQ Motion Control technology, the Cello is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. When using Elmo's Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on DC power. The Cello's slender case enables an efficient and cost saving implementation.
