Beckhoff: Industrial PC (CP27xx Series)

The fanless multi-touch built-in Panel PC

The CP27xx built-in Panel PC series is characterized by a modern operating concept with multi-touch display as well as an advanced, elegant device design. It is designed for installation in the front of a control cabinet. The CP27xx combine reliable Beckhoff Control Panel design with state-of-the-art Industrial PC technology. The right display size is available for every application. With their highly integrated 3½-inch motherboards, the CP27xx built-in Industrial PCs represent a high-performance platform for machine construction and plant engineering applications that can be used in conjunction with TwinCAT automation software under Windows 7 Professional, Windows 7 Ultimate, Windows Embedded Standard 7 or Windows Embedded Compact 7.

CP27xx Panel PCs are equipped with Intel® Celeron® ULV 1.4 GHz or with Intel® Atom™ with up to four cores and have one or two CFast cards. With the on-board RAID controller, two same CFast cards can be mirrored in the CP27xx-0000.

CP27xx are supplied with a 24 V power supply unit, optionally also with an integrated uninterruptible power supply (UPS). A battery pack can be connected externally and installed on a DIN rail close to the PC.

Data media and the lithium battery of the system clock are accessible from the rear.

Due to its two independent Ethernet interfaces the CP27xx is ideally suited as a compact central processing unit for an EtherCAT control system. A third independent Ethernet interface is available as an option.

An optional PCIe module slot offers the possibility to extend the PC, e.g. with additional Ethernet interfaces.

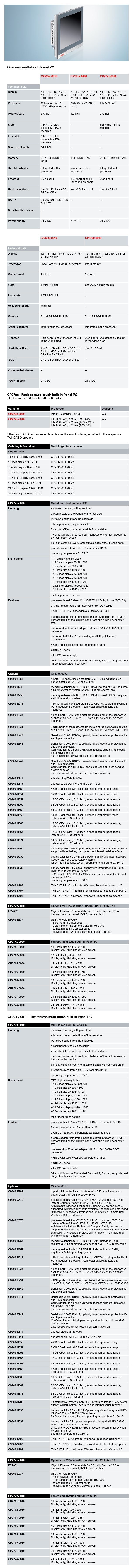

Model No.: CP2711-0000, CP2711-0010, CP2712-0000, CP2712-0010, CP2715-0000, CP2715-0010, CP2716-0000, CP2716-0010, CP2718-0000, CP2718-0010, CP2719-0000, CP2719-0010, CP2721-0000, CP2721-0010, CP2724-0000, CP2724-0010
