Beckhoff: Industrial PC (CP37xx Series)

Intel® Atom™ with up to four cores

With the CP37xx series, a Panel PC with multi-touch can be used directly in the field. The devices in a slender aluminum housing feature complete IP 65 protection and are designed for mounting arm installation. The Panel PCs offer high computing power with Intel® Atom™ processors with up to four cores.

A choice of seven different multi-touch TFT displays in sizes between 12-inch and 24-inch in 4:3, 5:4 or widescreen formats are available. Cooling is achieved by means of cooling fins on the outer wall as well as fans inside the closed housing. The operating temperature range is 0 to 45 °C.

The Panel PC features an integrated rotatable and tiltable mounting arm adapter for a 48 mm diameter mounting arm tube. There is a choice of attaching the mounting arm from above or below. The connecting cables are laid through the mounting arm. The Industrial PC connections (up to four) with IP 65 connectors are positioned in the large wiring space and are easily accessible. The wiring area can be opened easily without dismounting the device from the mounting arm, offering fast access to the IP 65 connectors for power supply, Ethernet and optional USB or RS232. Prefabricated cables in various lengths are available for all connections .The C37xx series Panel PCs are supplied with a 24 V power supply unit, optionally with integrated uninterruptible power supply (UPS). A battery pack can be connected externally and installed on a DIN rail in the control cabinet.

The CP37xx Panel PCs are equipped with one or two CFast cards. The data media and the lithium battery of the system clock are accessible from the rear under the cover.

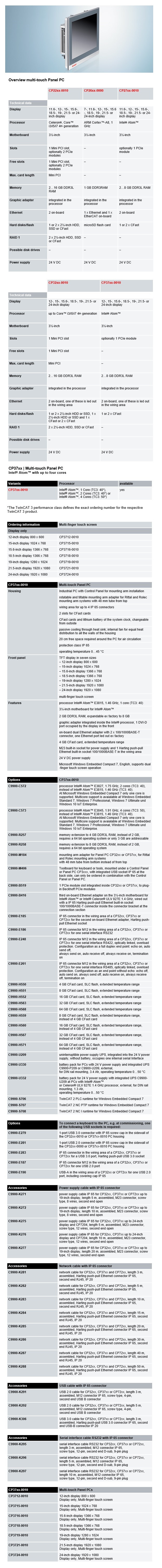

Model No.: CP3712-0010, CP3715-0010, CP3716-0010, CP3718-0010, CP3719-0010, CP3721-0010, CP3724-0010
