Description

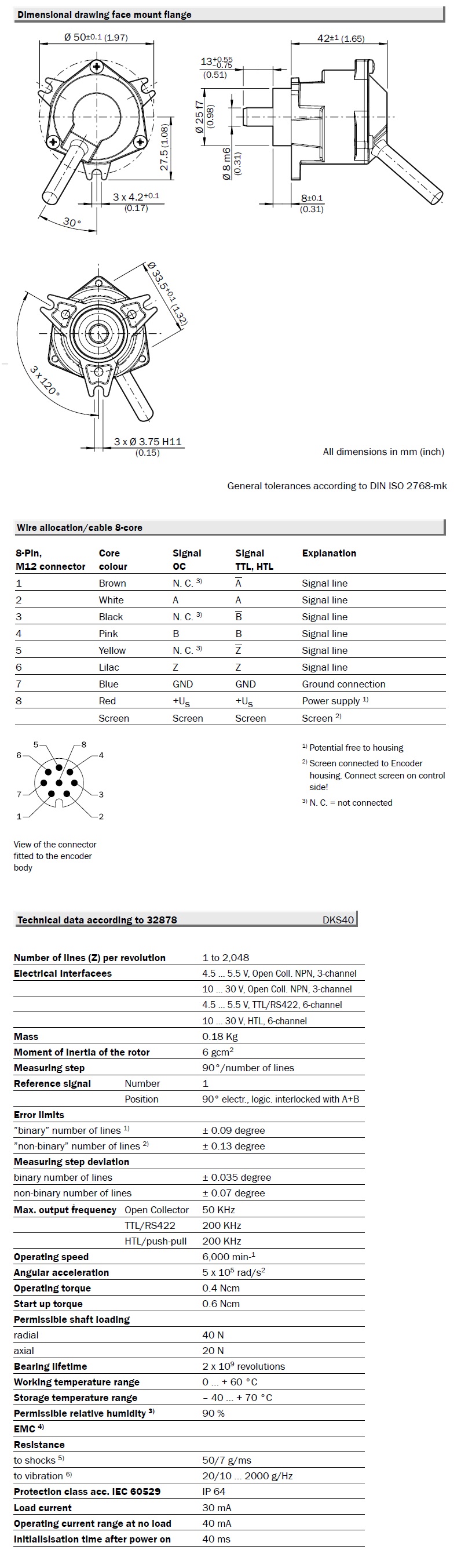

Specifications and Drawings

DKS40

Incremental Encoders

Description:

The DKS40 Incremental Encoders offers exceptional quality for its price and its range of application. Its housing is a solid zinc die-casting and is extremely compact in its design, having an external diameter of only 50 mm. As a consequence, valuable space can be spared when installed.

By adopting highly successful Mini-Disc technology, the DKS40 is extremely robust and can resist high levels of shock and vibration. In addition the DKS40 has a very high protection class, IP 64.

Features:

Compact housing Ø 50 mm
Robust and low cost incremental encoder
Electrical interfaces Open Collector, TTL/RS422 and HTL/push pull
Cable outlet for radial or axial use
Connector outlet M12
Face mount flange available
Number of lines from 1 … 2,048 feasible
