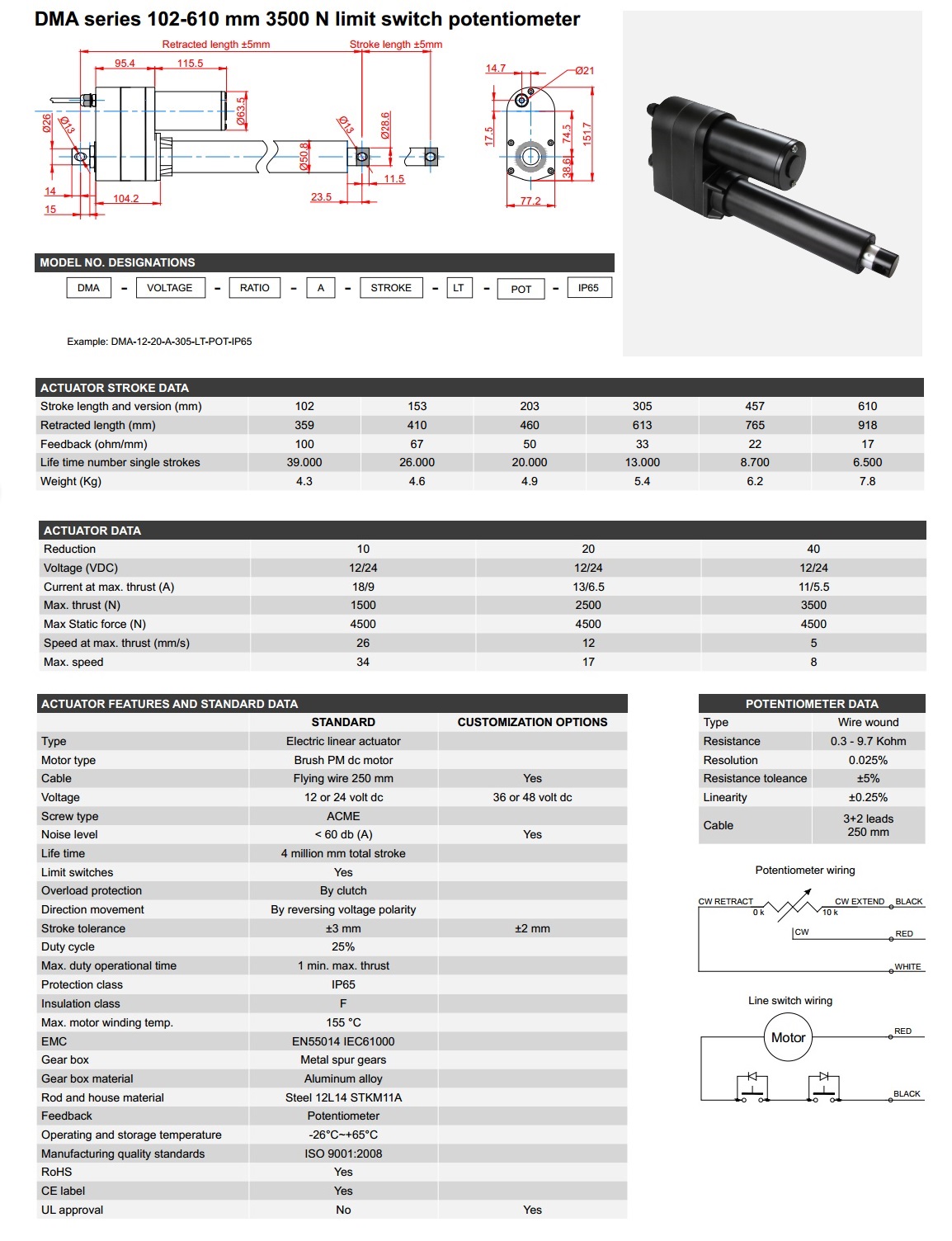

DMA series (102-610 mm 3500 N Limit Switch Potentiometer)

Linear DC Motor Actuators for tough environments with ACME self-lock lead screws and IP65 standard protection. Overload protection with mechanical ball clutches and optional integrated adjustable limit switch including potentiometer feedback. Enhanced corrosion resistance and powder coated metal parts.

Speed and force can be reduced by lowering applied voltage and or limiting the current.

Features:

• Ambient temperature -25~+65 °C
• Static load capacity 4500N
• Extension tube (steel) powder coated
• Protection tube (steel) powder coated
• Powder coated aluminum alloy
• Powder metal gears
• Enhanced corrosion resistance
• Overload protection (clutch)
• Well sealed O-ring
• Lubricated for service life
• Robust designed for tough environment
• Self-locking
• Heavy duty
• Duty cycle 25% (25% on/75% off time)
• Certified (CE55011)
• Voltage: 12
• Ratio: 10
• Current at Max. Thrust (A): 18/9
• Max. Thrust (N): 1500
• Speed at Max. Thrust (mm/s): 26
• Max. Speed: 34
• Stroke (mm): 305
• Retracted Length (mm): 613
• Feedback (ohm/mm): 33
• Lifetime # of single strokes: 13,000
• Weight (g): 5400

Actuator (DMA Series) Catalog
