Galil: Multi-Axis Motion Controller (DMC-18x2 Series)

Galil's multi-axis motion controllers are designed to provide the ultimate performance and flexibility for your application. The DMC-40x0 Series is Galil’s most advanced multi-axis motion control solution, while the DMC-41x3 Series is designed to provide the best value and performance that meets the needs of most applications. Each model operates stand-alone or is networked to a PC via Ethernet 100Base-T, RS232, or USB. Integrated drives for steppers and servos minimize space, cost, and wiring. Plenty of uncommitted I/O for synchronizing motion with external events.

PCI Econo Motion Controllers, 1-4 axes

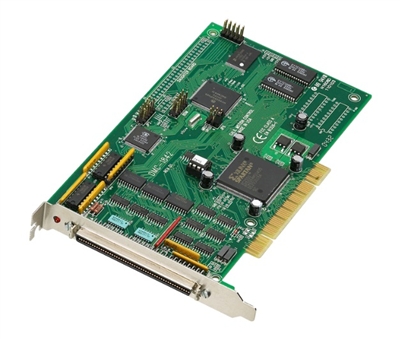

The DMC-18x2 Series are PCI bus motion controllers designed for the most cost-sensitive applications. The DMC-18x2 controllers accommodate 1- through 4-axis formats and allow control of step or servo motors on any combination of axes. Any mode of motion can be programmed including linear and circular interpolation, contouring, electronic gearing and ecam. To minimize cost, the following features are not available on the DMC-18x2: five through eight axes of control, optical isolation on inputs, dual encoder inputs, and the auxiliary FIFO and DPRAM communication channel. If you need these features, select the DMC-18x6 Accelera PCI controller. Like all Galil controllers, programming the DMC-18x2 is simplified with two-letter, intuitive commands and a full set of software tools such as GalilSuite for servo tuning and analysis.

Features

  • PCI card in 1 through 4 axis versions: DMC-18x2 where x=1,2,3,4 axes

  • User-configurable for stepper or servo motors on any combination of axes

  • Accepts up to 12 MHz encoder frequencies for servos and outputs pulses up to 3 MHz for steppers

  • PID compensation with velocity and acceleration feedforward, integration limits, notch filter and low-pass filter. Sample times to 62.5 microseconds per axis

  • Modes of motion include jogging, point-to-point positioning, contouring, linear and circular interpolation, electronic gearing and ECAM. Ellipse scaling, slow-down around corners, infinite segment feed and feed rate override

  • Multitasking for concurrent execution of up to eight application programs

  • Non-volatile memory for application programs, variables and arrays

  • Home input and forward and reverse limits accepted for every axis

  • 8 Uncommitted inputs and 8 outputs

  • Expansion for 64 I/O available with optional DB-14064

  • High speed position latch and output compare

  • High-density shielded cable minimizes EMI

  • Connects directly to AMP-19540 4-axis drive for cost-effective, multi-axis controller/drive solution. Drives brush or brushless servos up to 500 Watts each. Or, connect to external drives of any power range using ICM-2900 interconnect module

  • Communication drivers for Windows, QNX, and Linux

  • Custom hardware and firmware options available


Model No.: DMC-1812, DMC-1822, DMC-1832, DMC-1842
