Delta: Industrial Fieldbus Solution (DVPCP02-H2 Series)
Delta: Industrial Fieldbus Solution (DVPCP02-H2 Series)

Call for Pricing

Price Quote Form


Order #: DVPCP02-H2
.

Description Specifications and Drawings

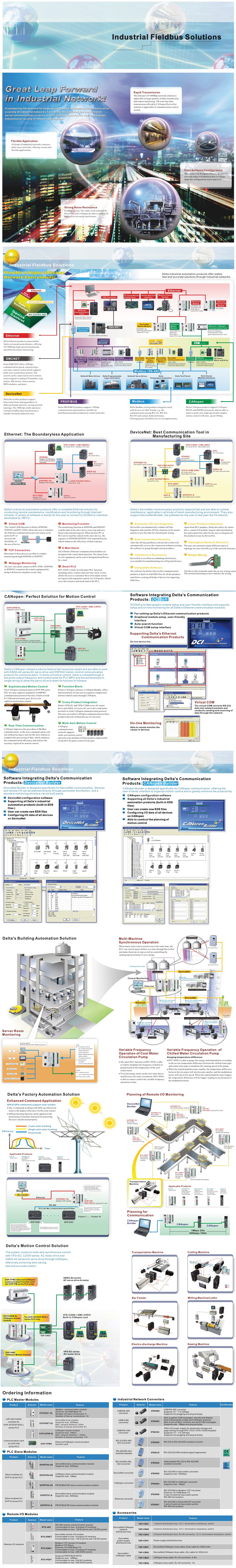

Delta: Industrial Fieldbus Solution (DVPCP02-H2 Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

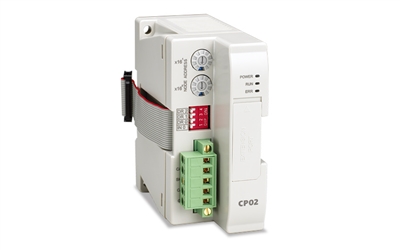

CANopen Communication Devices (DVPCP02-H2 Series)

  • Flexible configuration

  • Supports CANopen DS301 and DSP402 protocols

  • Conducts multi-axis, high-speed and intricate motion control by max. baud rate 1M bps

Features:

  • For DVP-EH2 series PLC only

  • Supports CANopen protocol

  • Max. baud rate: 1M bps

Specifications:

  • Transmission method: CAN

  • Connector: Removable, 5.08mm

  • Serial baudrate: 10k, 20k, 50k, 125k, 250k, 500k, 800k, 1M bps

  • Message type: PDO, SDO, SYNC, Emergency, NMT

  • Power supply voltage: 24 VDC (-15 to 20%)

  • Power consumption: 1.7 W

  • Electrical isolation: 500 VDC
