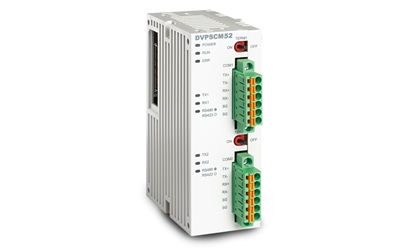

Delta: Industrial Fieldbus Solution (DVPSCM52-SL Series)
Delta: Industrial Fieldbus Solution (DVPSCM52-SL Series)

Call for Pricing

Price Quote Form


Order #: DVPSCM52-SL
.

Description Specifications and Drawings


Delta: Industrial Fieldbus Solution (DVPSCM52-SL Series)

Delta Electronics provides complete solutions for drive, motion and control type of industrial automation products. Apart from general Modus serial communication, we further offer advanced CANopen, DeviceNet, Ethernet, EtherNet/IP and PROFIBUS fieldbus solutions for complex and harsh industrial sites and demands for high speed as well as stable and highly cost-effective choices of applications.

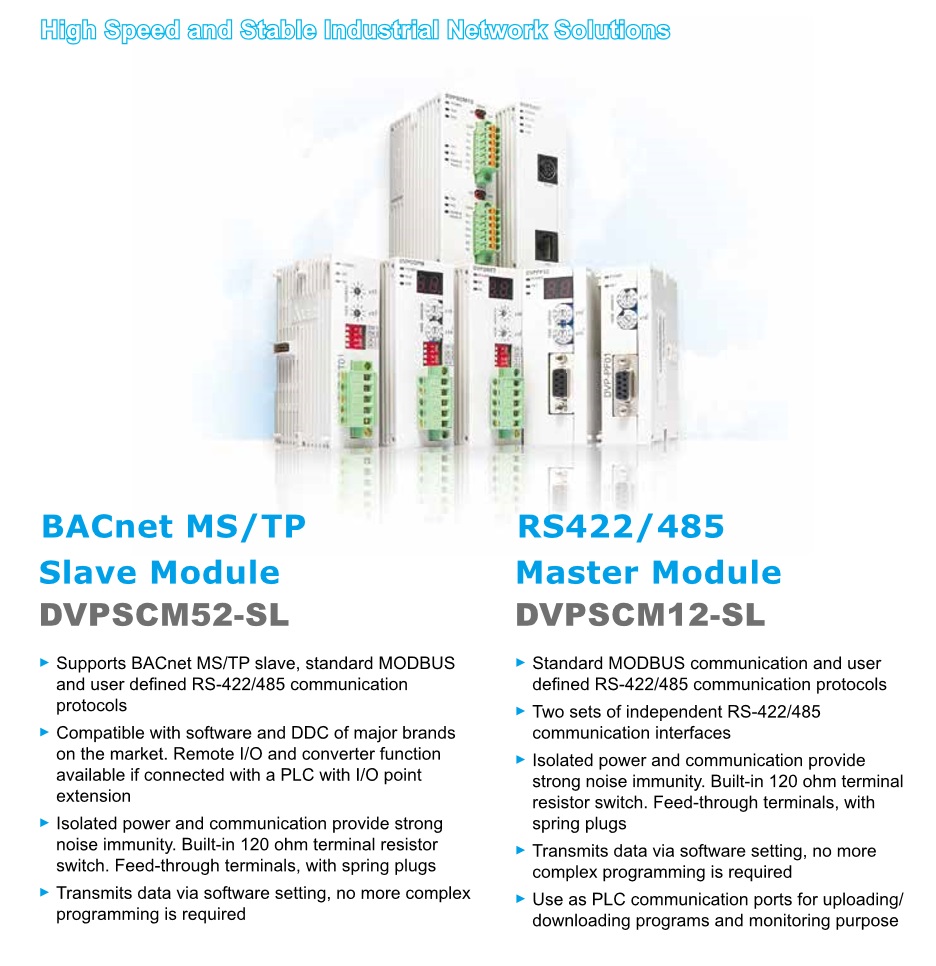

BACnet Communication Module (DVPSCM52-SL Series)

Can be easily installed and applied on building automation to lower the cost of system maintenance

Features:

  • Supports BACnet MS/TP slave protocol

  • Easy to be connected and controlled via software of other brands

  • Functions as BACnet MS/TP remote I/O or gateway

  • Supports MODBUS with user-defined protocol

  • High noise immunity

  • High speed module on the left (PLC needed)

Specifications:

  • Transmission method: RS-485/RS-422

  • Type: Feed-through terminals, with spring plugs

  • Terminal resistance : built in 120 ohm with a switch

  • Baudrates : 1200, 2400, 4800, 9600, 19200, 38400, 57600, 76800, 115200, 230400, 460800 bps

  • Communication protocol : BACnet MS/TP Slave, MODBUS ASCII/RTU, UD Link
