CUI: Optical Panel Incremental Encoders (EC252 A or B Series)

Home > CUI >

CUI: Optical Panel Incremental Encoders (EC252 A or B Series)

CUI: Optical Panel Incremental Encoders (EC252 A or B Series)

Alternate View

Call for Pricing

Price Quote Form

Order #: EC252AB

Model Number/Code*:

.

Description

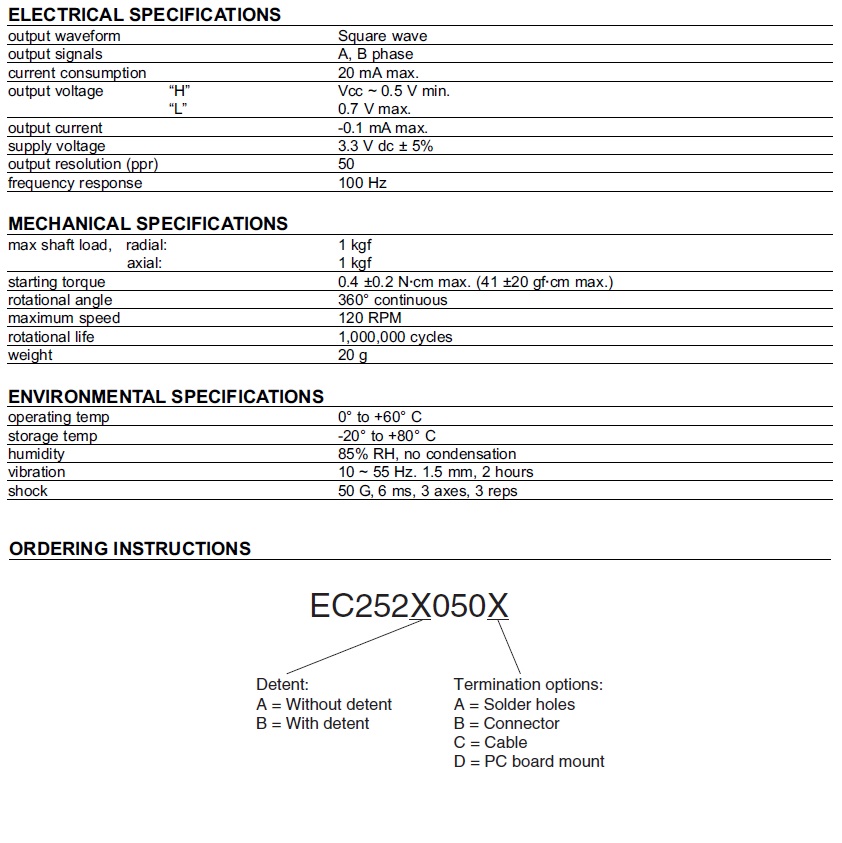

Specifications and Drawings

CUI: EC252 A or B Series
25 mm, 50 PPR, 3.3 Vdc Input, Metal Shaft, Sleeve Bearing, Detent, Optical Panel Mount Encoder

Specifications:

Input Voltage (Vdc): 3.13 ~ 3.46
Shaft Length (mm): 20
Operating Temp. (°C): 0 ~ 60
Speed, Max. (RPM): 120

Model No.: EC252AA, EC252AB, EC252AC, EC252AD, EC252BA, EC252BB, EC252BC, EC252BD
