Heidenhain: Interface Electronics (EIB 392)
Heidenhain: Interface Electronics (EIB 392)

625482-13 is not available and the Successor is 1363112-13
578624-03 is not available and the Successor is 1363110-03
Price : $952.00

Price with Selected Options: $952.00


Availability: Subject to availability
Order #: EIB-392


Model Number/Code*:

Qty:

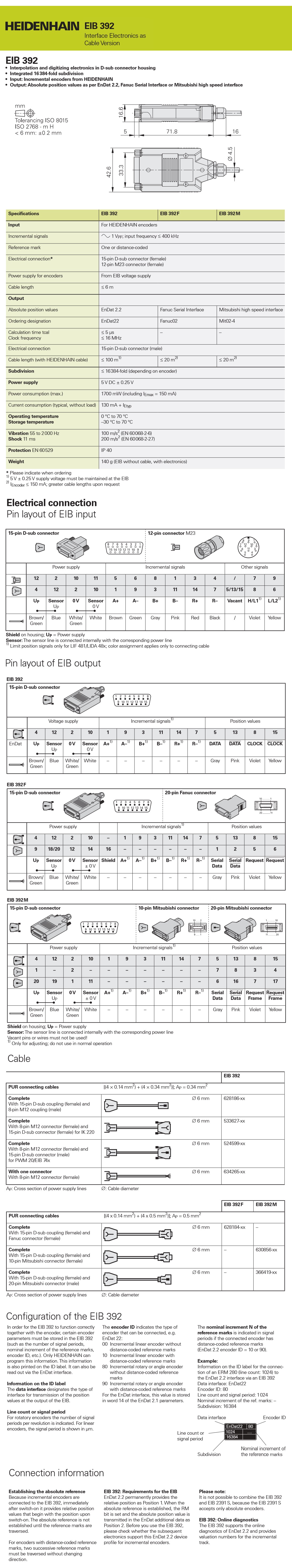

Description Specifications and Drawings

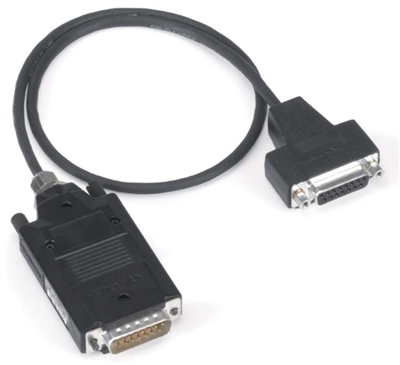

Heidenhain: Interface Electronics (EIB 392)

Interface electronics from HEIDENHAIN adapt the encoder signals to the interface of the subsequent electronics. They are used when the subsequent electronics cannot directly process the output signals from HEIDENHAIN encoders, or if additional interpolation of the signals is necessary.

HEIDENHAIN interface electronics are available in various mechanical designs.


Features:

  • Interpolation and digitizing electronics in D-sub connector housing

  • Integrated 16 384-fold subdivision

  • Input: Incremental encoders from HEIDENHAIN

  • Output: Absolute position values as per EnDat 2.2, Fanuc Serial Interface or Mitsubishi high speed interface


Model No.: EIB 392, EIB 392 F, EIB 392 M

625482-13 (EIB 392M) is not available and the Successor is 1363112-13

578624-03 (EIB 392) is not available and the Successor is 1363110-03

578625-07 (EIB 392F)
