EM-DC3 is a constant angle and constant torque stepper motor drive. The driven voltage range from DC12V to 40V. It can match 3-phase hybrid stepper motors whose rated current is under 5.8A and shaft diameter range from 42mm to 86mm. Owe to bipolar constant chopping circuit, it can make motors low noise and operated smoothly when low speed; the torque is much greater than 2-phase and 5-phase stepper motor when high speed. It is widely used in small-sized numerical control device such as medical machine, robot, instrumentation, curving machine, laser labeling machine, inner laser curving machine.

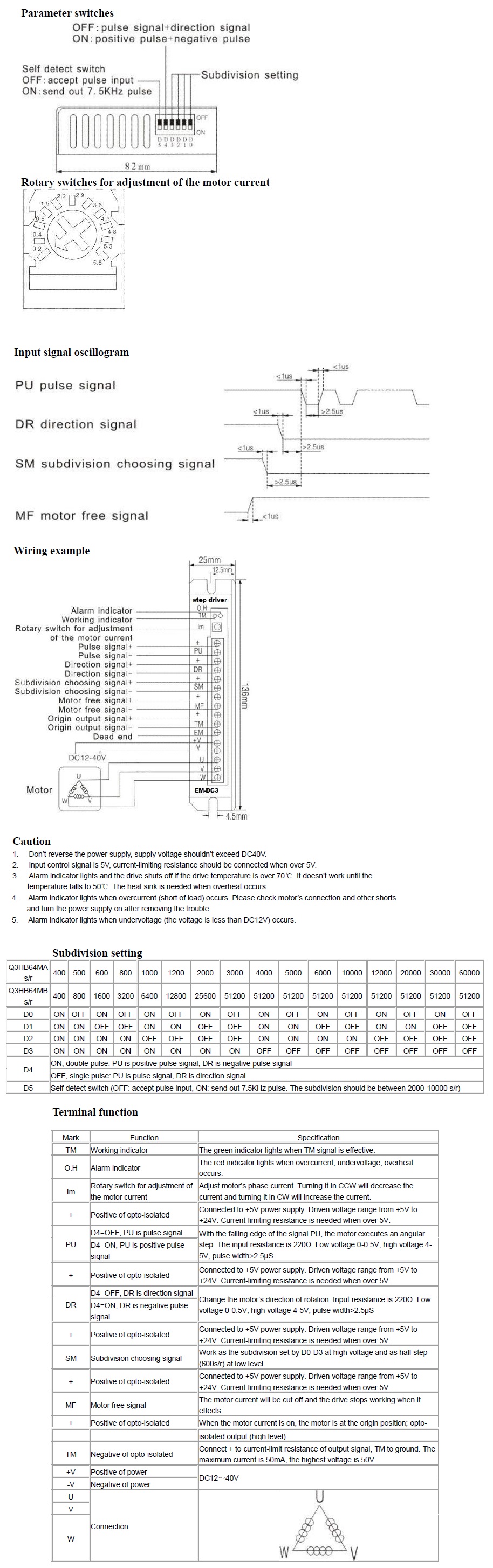

Performance

· Designed for use with motor inductance range of 0.5 mH–80 mH

· Selectable resolution up to 60,000 steps/rev

· Auto standby reduces motor current (and heating) at rest

· Provides 0.5 Amps to 5.8 Amps (peak)

· Single 12-40 VDC power supply input

· Compatible with various motors

Physical

· Simplified, two-screw mounting

· Overall dimensions: 25 × 82 × 136 mm

· Convenient configuration DIP switches

· Certified as UL-recognized component

· Approvals: CE (LVD & EMC)

Features:

· High performance, low price

· 16 channels constant angle and constant torque, the highest subdivision is 60000 s/r

· Special control circuit

· Highest response frequency: 200Kpps

· Motor phase current is reduced to approximately 50% of the set current value 100ms after receiving the last pulse edge

· Bipolar constant current chopping circuit

· Opto-isolated input/output

· Driven current is adjustable continuously from 0.5A/phase to 5.8A/phase

· Single power supply, voltage arrange from DC12V to 40V
