Cyclone DDR Motors

Relying on advanced motor technology and ripe crafts, Cyclone Motor has successfully undertaken a key project on Hi-End Numerical Control Machines and Fundamental Manufacturing Equipment in 2009. That is “Large Torque DDR Motor and the Driving Device”. Rich in theoretical research and comprehensive design ability, E-Motion has successfully designed and produced a series of DDR products with continuous torque from 2 Nm to 3300 Nm. Later on it issued enterprise standard for them, acting as the 1st enterprise in China issuing standards for DDR motors.

DDR Motors: FI Series

By adopting direct drive technology, DDR motors get rid of retarding mechanism and has the following advantages.

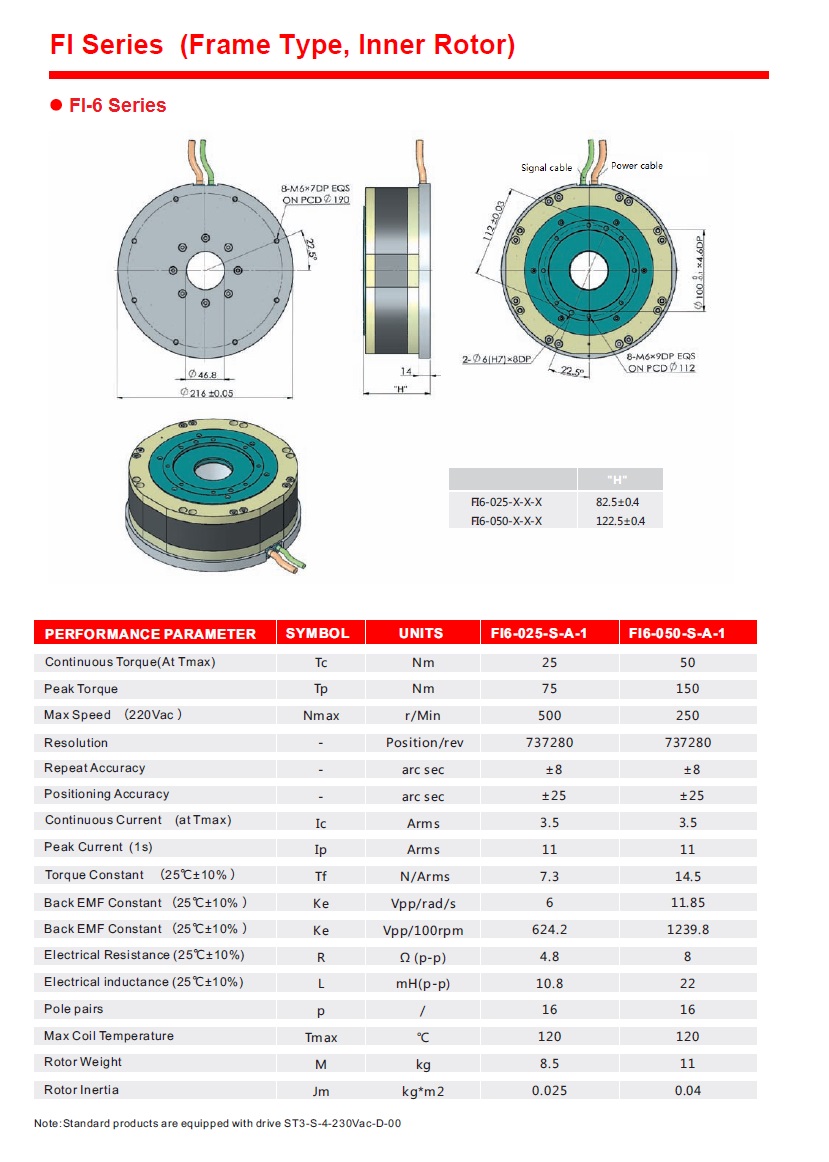

FI-6 Series

Features:

• Two Models
• High dynamic performance and high reliability.
• Direct extension of the force - no mechanical transmission
• Maintenance-free drive
• Simplified mechanical design
• High dynamic response and high drive control
• High positioning accuracy
• Simple installation and removal
• Continuous Torque (Nm): 25, 50
• Peak Torque (Nm): 75, 150
• Max. Speed (rpm): 250, 500
• Electrical Inductance [mH (p-p)]: 10.8, 22
• Rotor Weight (kg): 8.5, 11
